MAX. SWING / SWING OVER CROSS SLIDE 25.9"
MAX. MACHINING DIA. / UPPER TURRET 25.9"
MAX. MACHINING LENGTH 59.8"
X AXIS TRAVEL 24.21"
Z AXIS TRAVEL 62.4"
Y AXIS TRAVEL 9.84"
MAIN SPINDLE 3300 RPM
MAIN SPINDLE NOSE A2-8
MAIN SPINDLE BORE 4.41"
MAX. BAR WORK CAPACITY 4.02"
MILLING SPINDLE SPEED 12000 RPM
B AXIS MINIMUM INDEXING INCREMENT 0.0001"
TOOL CAPACITY 36 TOOLS
TOOL SHANK HSK-63
TOOL SELECTION METHOD RANDOM / SHORTEST PATH
TAILSTOCK CENTER MT NO. 5
TAILSTOCK TRAVEL (W AXIS) 61.50"
MAIN SPINDLE MOTOR 40 HP / 30 HP
MILLING SPINDLE MOTOR 30 HP / 20 HP
MACHINE HEIGHT 107.1"
FLOOR SPACE 204.72" X 110.24"
WEIGHT 34,172 LBS

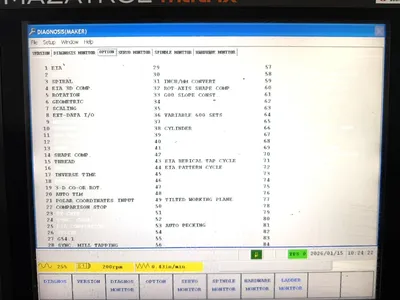

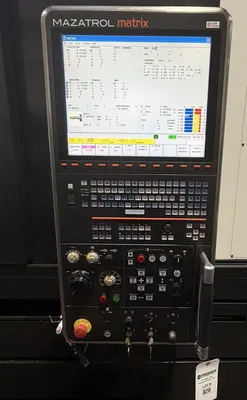

Matrix Control,
Chip Conveyor,
Tailstock,
Kiagawa BB21215X 12" Thru Hole Chuck,
Parts Catcher,

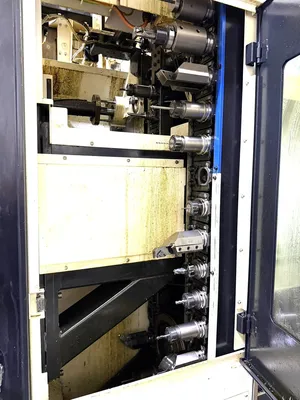

36 Position ATC,
Coolant Thru,
This equipment has been sold. Similar equipment available now is shown below.
