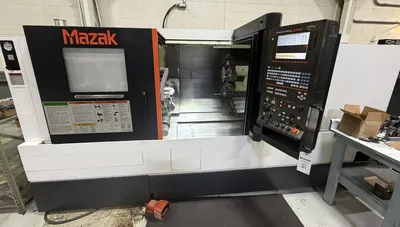

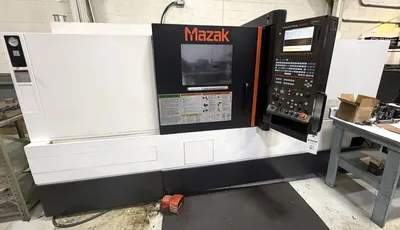

2013 Mazak Quick Turn Smart QTS-350 CNC Lathe
Have one to sell?
1 available
2013 Mazak Quick Turn Smart QTS-350 CNC Lathe for sale. Features a 12" hydraulic chuck, 28.3" max swing, and 16.5" cutting diameter. Equipped with 12-position turret, tailstock, Smart Control, and more. Contact for details on this used model.
SPECIFICATIONS:
CHUCK SIZE 12" HYDRAULIC CHUCK
MAXIMUM SWING 28.3"
MAXIMUM CUTTING DIAMETER 16.5"
MAX MACHINING LENGTH 48.5"
MAXIMUM BAR CAPACITY 4.0"
X-AXIS TRAVEL 9.375"
Z-AXIS TRAVEL 51.3"
SPINDLE NOSE / BORE A2-11" / 4.4"
SPINDLE SPEED 3,300 RPM
TURRET TYPE 12 STATION DRUM TURRET
SPINDLE MOTOR 40 HP
RAPID TRAVERSE RATES X/Z 1181 IPM / 1299 IPM
TAILSTOCK QUILL CENTER 3.94" / MT # 5
MACHINE DIMENSIONS LXW 150" X 75" X 75"
MACHINE WEIGHT 15,200 LBS
TAILSTOCK BODY TRAVEL 49.75"

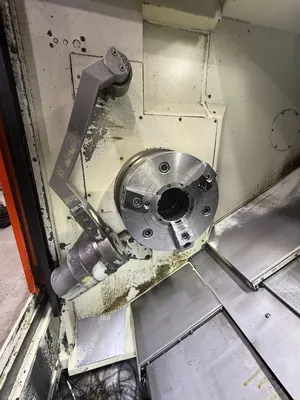

12" Kitagawa BB212 Thru Hole Chuck,

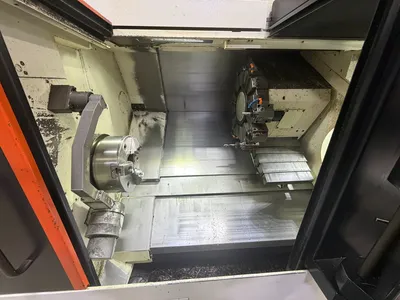

12 position Turret,
Tailstock,

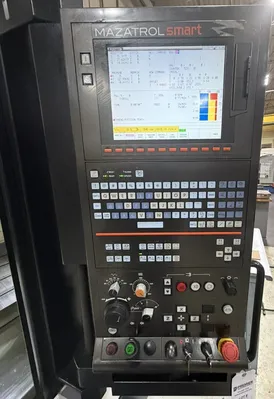

Smart Control,

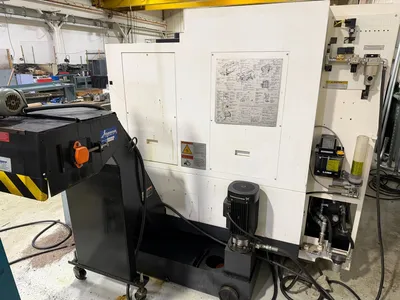

Chip Conveyor,
High Pressure Coolant,
Tool Setter
