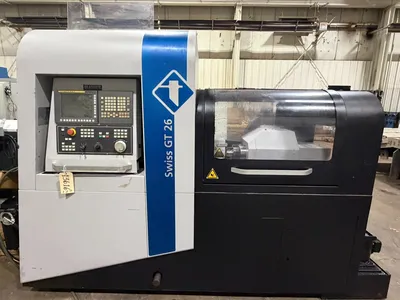

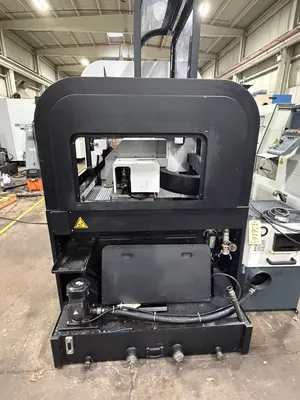

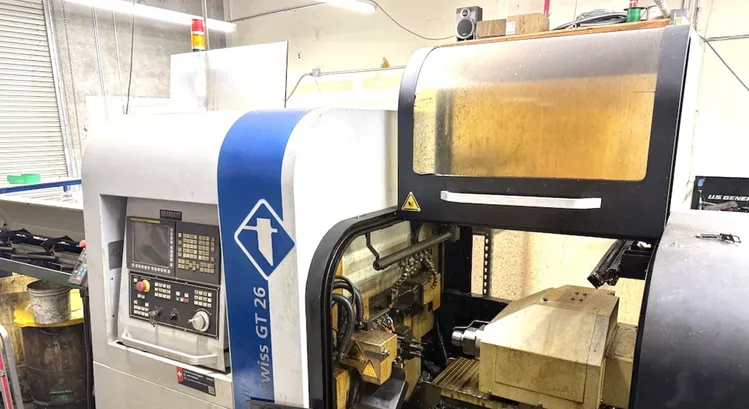

Tornos GT-26 6-Axis CNC Swiss Type Automatic Screw Machine, New 2015

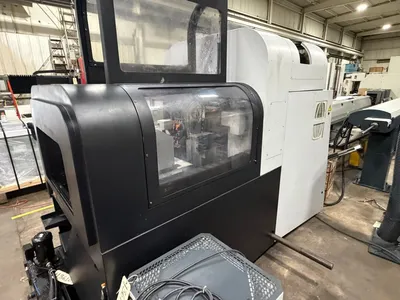

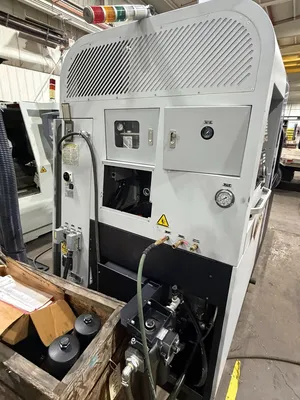

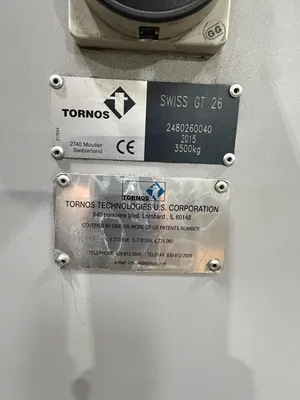

CNC Swiss-type lathe TORNOS GT 26/6, including bar loader

Manufacturer: TORNOS
Model: GT 26/6
Year of manufacture: 2015
Max. bar capacity: 26 mm
CNC control: FANUC
High-dynamic turning and milling operations
Suitable for complex series production parts

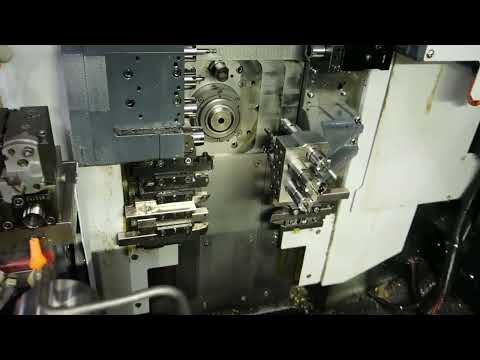

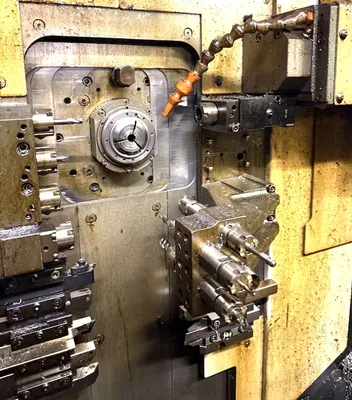

Axis / spindle concept – TORNOS GT 26/6

Spindle concept:
• 1 main spindle 10,000rpm
• 1 counter spindle 10,000rpm
• Synchronized machining for highly productive series manufacturing

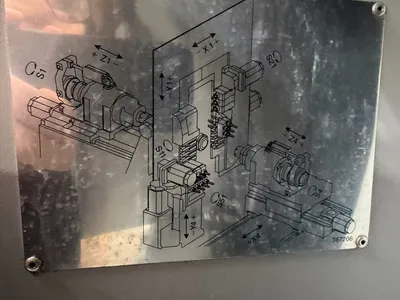

Axis concept:
Linear axes:
• X1 / Z1 – main spindle
• X2 / Z2 – counter spindle
• X3 – cross machining / additional tools

C-axes:
• C1 – main spindle
• C2 – counter spindle

Number of CNC axes:
• 6 CNC axes

Machining capabilities:
• Simultaneous main and counter spindle operation
• Milling and cross machining with C-axes
• High process integration and short cycle times

Machine weight: approx. 3,200 kg
Transport dimensions (L × W × H):
approx. 3,200 × 1,800 × 2,000 mm

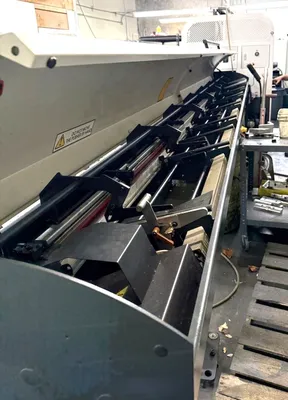

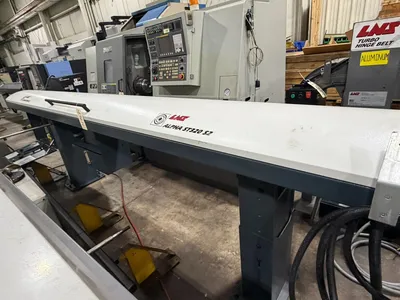

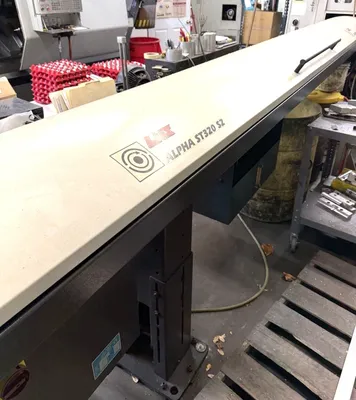

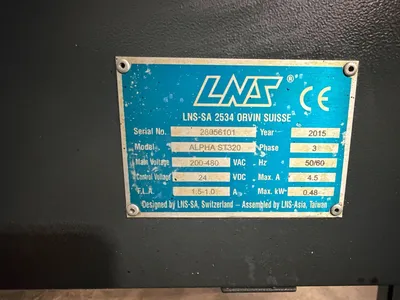

LNS Alpha ST320 S2 Magazine type Bar Feeder
3-25mm diameter Capacity
Weight: approx. 700 kg
Dimensions (L × W × H):
approx. 3,500 × 800 × 1,500 mm

TECHNICAL SPECIFICATIONS SWISS GT 26/6 SWISS GT 26 B
6 linear axes + 2 C-axis 6 linear axes + 2 C-axis
2 independent tool systems 2 independent tool systems

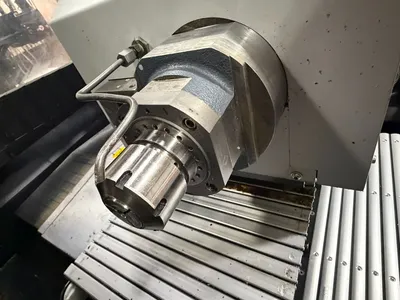

Main spindle
Max. bar capacity mm 23 (25.4) 23 (25.4)
Standard workpiece length with rotating guide bush mm 220 220
Spindle rotation speed rpm 0-10,000 0-10,000
Spindle power kW 8.2 (10.5) 8.2 (10.5)
Max. torque Nm 26 26

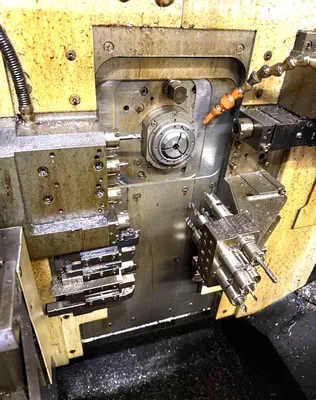

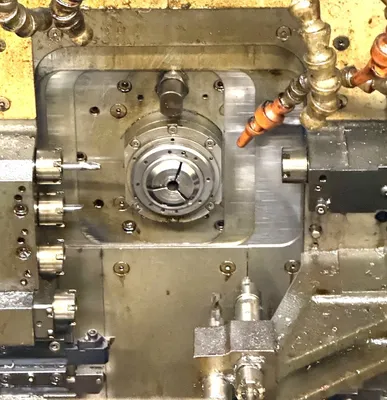

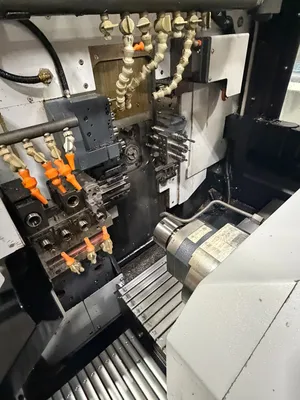

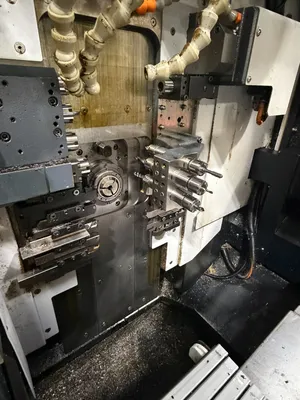

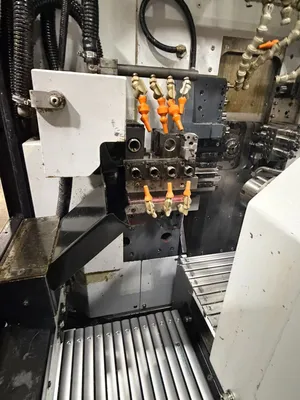

Platten
Max. number of turning tools 10 10
Turning tool section 16 x 16 16 x 16
Number of frontal tools (op/cop) 5 / (5)
Positions for rotating tools (S11) 4 4
Positions for rotating tools (S21 modular positions) 3
Rotating tool speed of rotation rpm 5000 5000
Rotating tool power (S11 / S21) kW 0.75 / 1 0.75
Number of rotating tool positions S21 (op /cop) 4 / 4
Number of fix frontal tools (op /cop) 4

Rotating tool speed of rotation rpm 9000
Rotating tool power (S11 / S21) kW 0.75 / 1

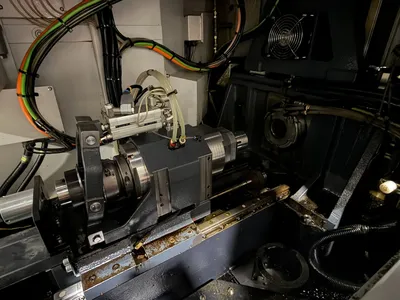

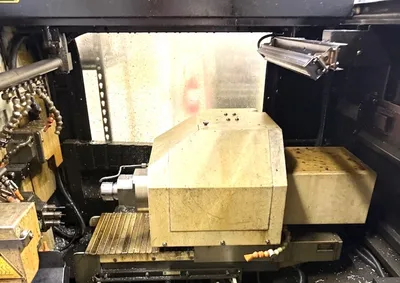

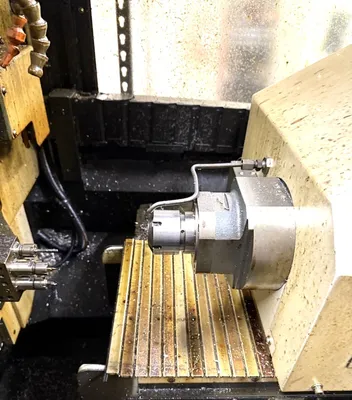

Counter spindle
Max. bar capacity mm 25.4 25.4
Insertion length of workpiece into spindle mm 120 120
Max standard output length of workpiece mm 120 120
Spindle rotation speed rpm 0-10,000 0-10,000
Spindle power kW 8.2 (10.5) 8.2 (10.5)
Max. torque Nm 26 26
Number of tool positions next to the counter spindle 2 2

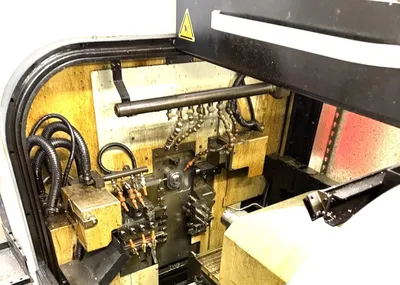

Counter operation
Number of tool positions 8 8
Positions for rotating tools 4 4
Rotating tool speed of rotation rpm 5000 5000
Rotating tool power kW 0.75 0.75
Total number of tools 40 36
Operation /counter-operation tool distribution 27/13 23/13

TECHNICAL SPECIFICATIONS SWISS GT 26/6 SWISS GT 26 B
6 linear axes + 2 C-axis 6 linear axes + 2 C-axis
2 independent tool systems 2 independent tool systems

BASIC MACHINE EQUIPMENT
Rotating guide bush with integrated motor X X
Machining without guide bush X X
S21 rear platten rotating tool motor X X
S11 front platten rotating tool motor X X
S51 rotating tool motor in counter-operation X X
C1 + C4 axes X X

Pneumatic workpiece ejector + oil cleaning of collet X X
Automatic centralised lubrication cycle X X
Beacon (4 colour) X X
20 bar lubrication pump with manual selection filters X X
Bar feeder interface X X
Fire extinguisher interface X X

NUMERICAL CONTROL
Control type Fanuc 31iB Fanuc 31iB
Encoder / axis motor technique Absolute serial Absolute serial
Motor type (axes and guide bush) Synchronous (AC) Synchronous (AC)
Motor type (spindles) Asynchronous (AC) Asynchronous (AC)

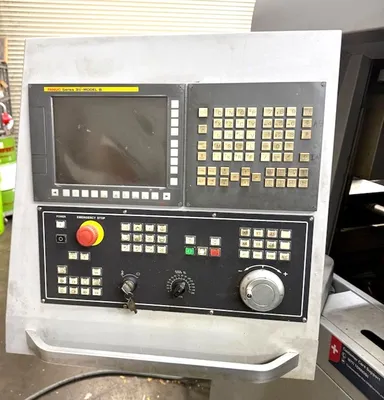

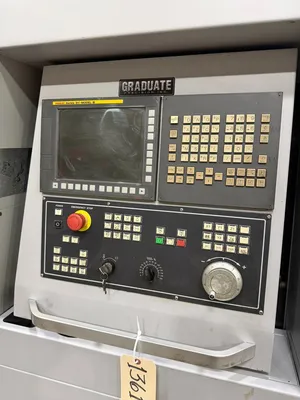

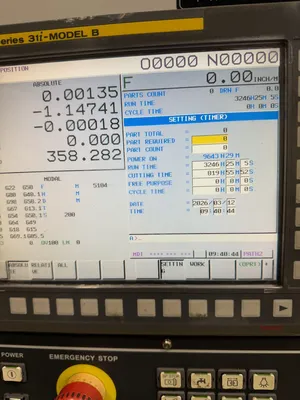

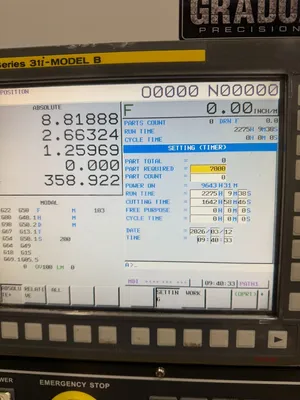

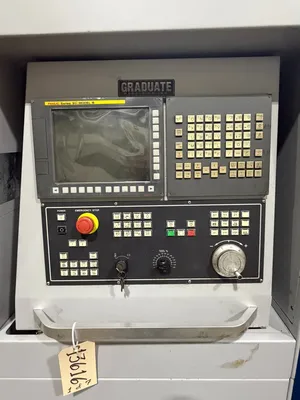

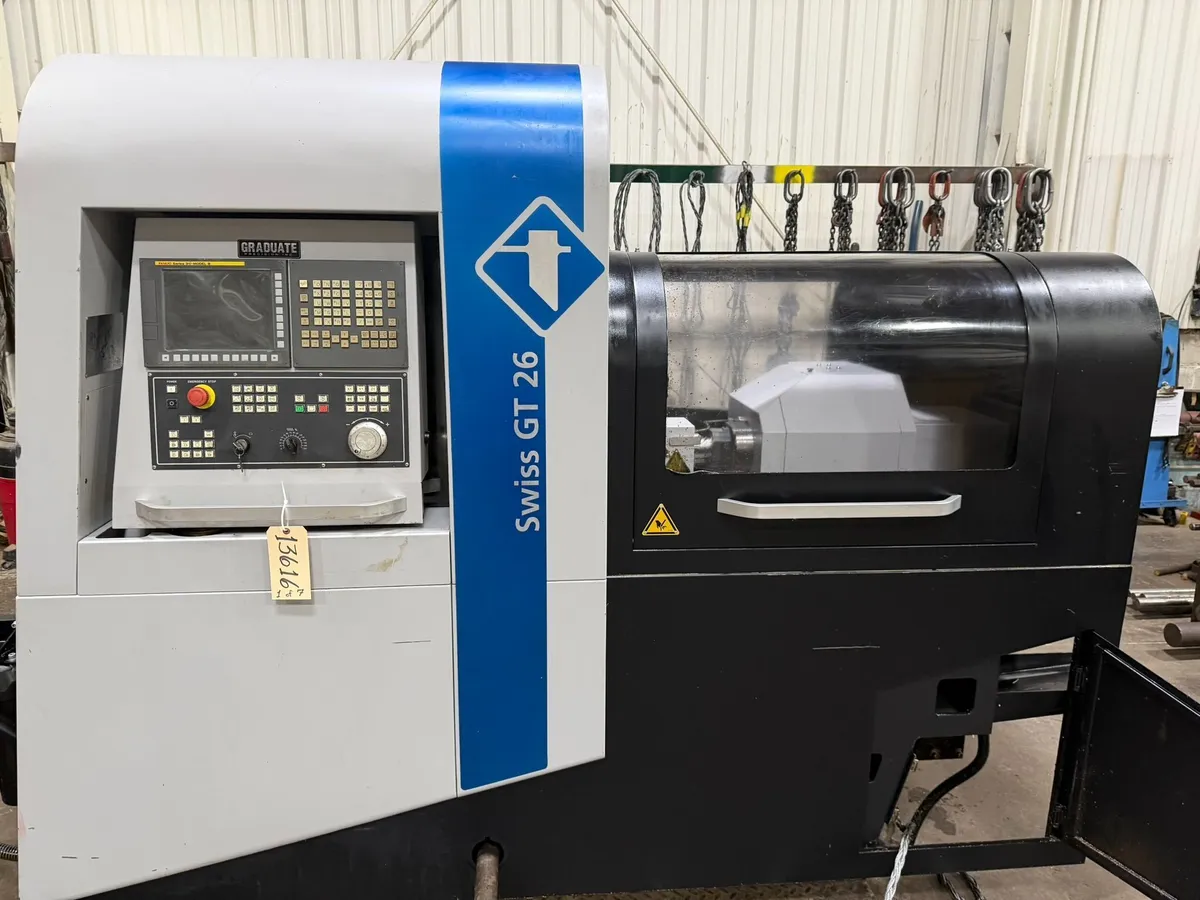

CRT screen and mobile operator console
