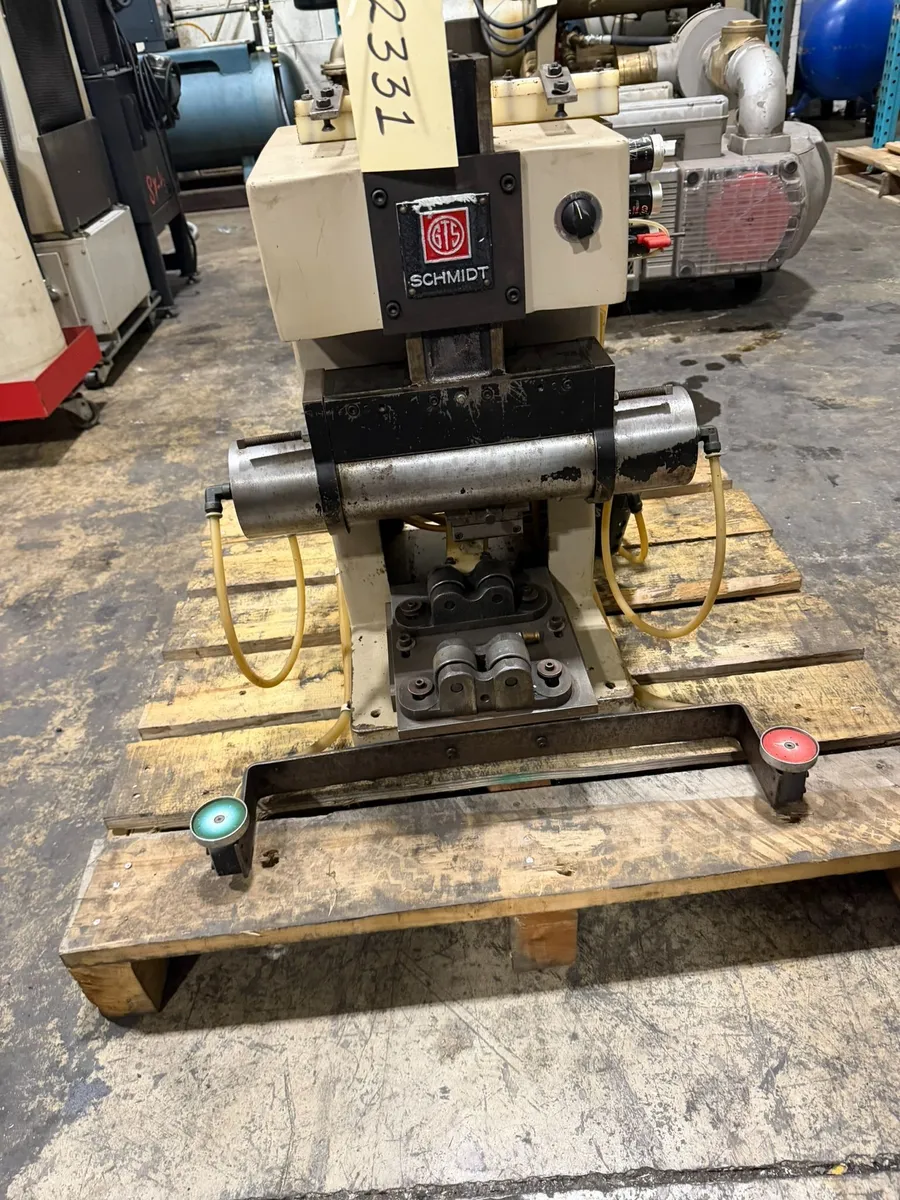

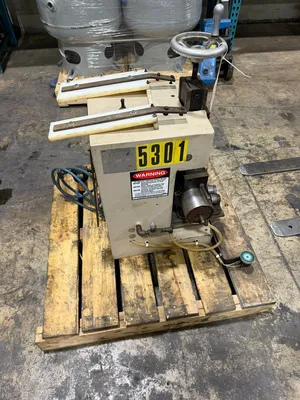

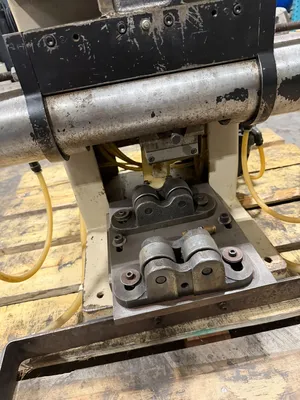

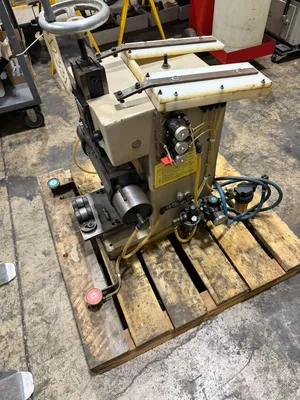

Schmidt Hydraulic Roll Marking Machine Model 509
Have one to sell?
1 available
Used Schmidt Hydraulic Roll Marking Machine Model 509. Features max 1.45 tons ram pressure, 1/2" stroke, dual palm controls. Approx 200 lbs, 22"x18"x35", working pressure 20-100 PSI. Explore precise marking with adjustable 3.5" cross slide.
SPECIFICATIONS:
Ram Pressure – Maximum…………1.45 Tons
Ram Stroke – Maximum…………1/2″
Ram Vertical Handwheel Adjustment – Approximate…………3-3/8″
Cross Slide…………0 – 3.5″
Die Space…………4.5″ – 7.5″
Throat…………3-7/16″
Table Size…………8.5″ W x 6.75″ D
Working Pressure…………20 – 100 PSI
Weight – Approximate…………200 Lbs.
Dimensions – Approximate…………22″(L-R) x 18″(F-B) X 35″(H)
Dual Palm Controls
