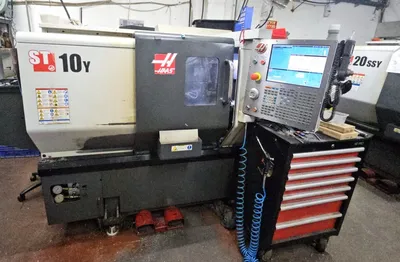

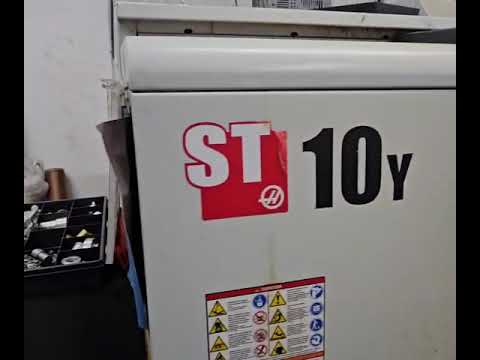

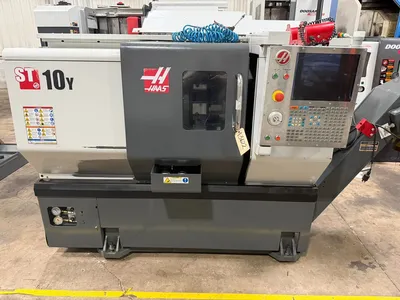

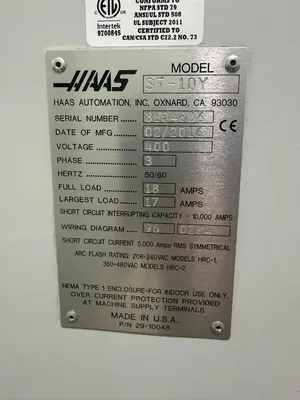

HAAS ST-10Y CNC 4-AXIS TURNING CENTER WITH MILLING & Y-AXIS, New 2016

Swing Diameter:
Over front apron 25.25"
Over cross slide 16.25"
Over tailstock 23.5"
Capacities:

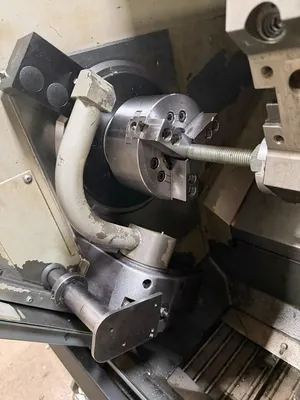

Chuck size 6.5"
Max. Cutting diameter (varies with turret) 12"
Max. Cutting length (without workholding) 14.0"
Bar capacity 1.75"
Travels & Feedrates:
X-Axis 7.88"
Y-Axis +/- 2"
Z-Axis 14"
Rapids on X 472 in/min
Rapids on Y 472 in/min
Rapids on Z 1200 in/min
Max. thrust X 2400 lb
Max. Thrust Y 2300 lb
Max. Thrust Z 3700 lb
Spindle:
Max. rating 15 HP
Max. Speed 6000 RPM
Max. Torque 75 ft-lb @ 1300 RPM
Spindle nose A2-5
Spindle bore 2.31"
Draw tube bore 1.81"
Main Spindle C-Axis:
Max. Rating 5 HP
Positioning (+/-) 0.01 deg
Brake Clamp Force 1000 lb
Brake diameter 14.4"

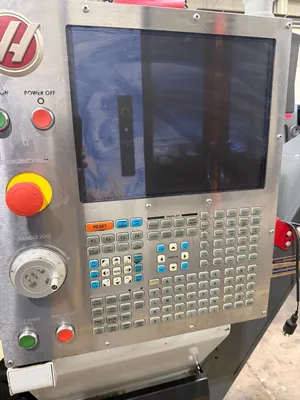

Control type (interpolated motion & control)

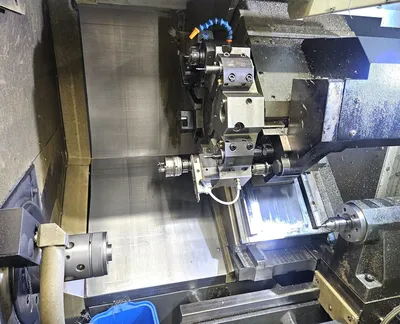

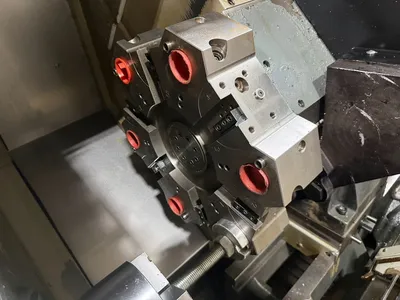

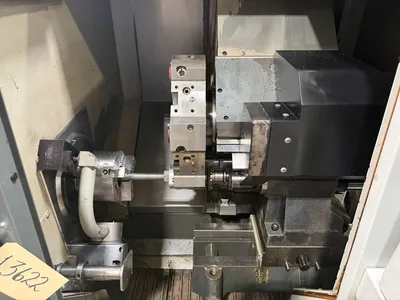

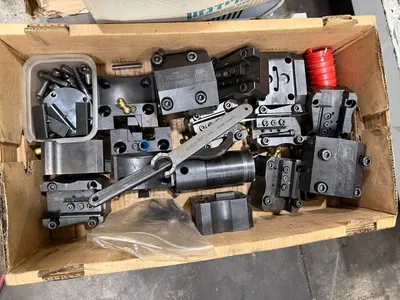

Turret:
Number of tools 24 Stations
OD vs ID Tools 12 VDI
Boring Bar rear clearance (from back of turret) 0.75"
Live Tooling:
Tooling VDI40
General:
Air Required 4SCFM, 100 PSI
Coolant Capacity 15 Gal.
