ZONATO ACQUA 5 CNC 5-AXIS WATERJET CUTTING SYSTEM, NEW 2024

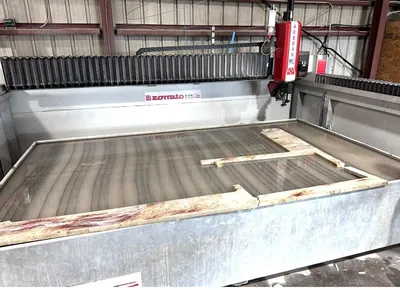

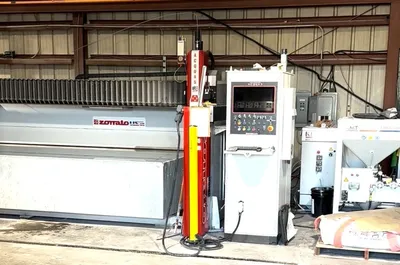

ZONATO ACQUA 5 CNC Waterjet Cutting System

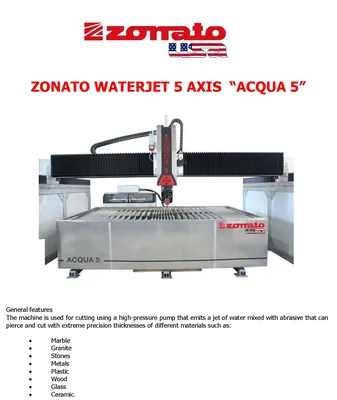

The ACQUA 5 Waterjet is used for cutting using a high-pressure pump that emits a jet of water mixed with abrasive that can pierce and cut with extreme precision thicknesses of different materials.

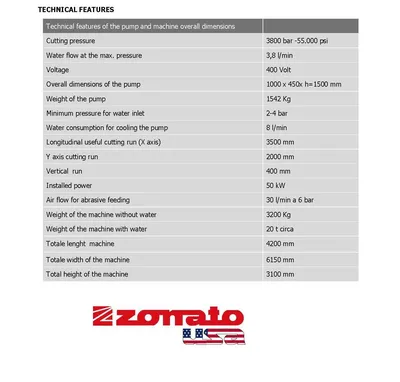

Specifications:
-- Cutting area: 2000 x 3500 mm (78" x 138")
-- Y-Axis travel: 2000 mm (78")

-- Z-Axis travel: 400 mm (15.75")
-- Max. cutting pressure 55,000 PSI

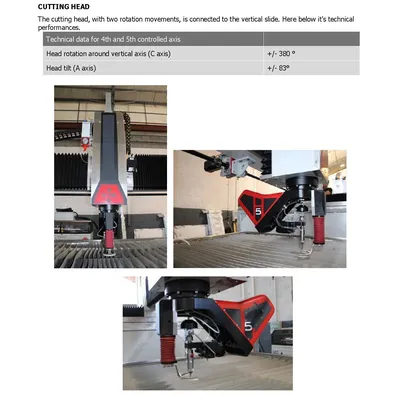

-- Head rotation: + 380°
-- Head tilt: + 83°
Equipped with:

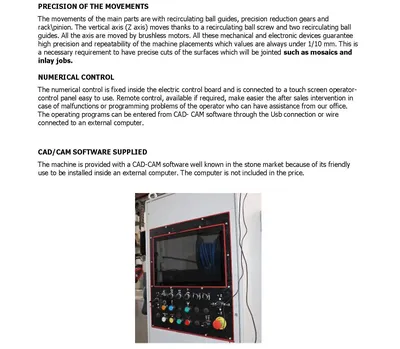

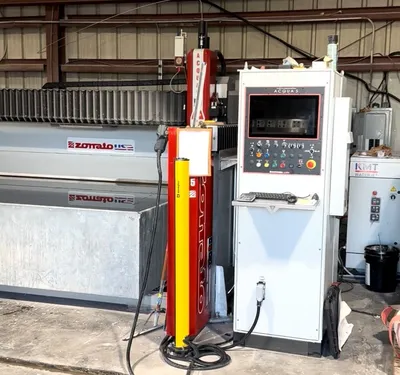

-- CNC touch screen control
-- CAD-CAM software
-- Automatic surface detector

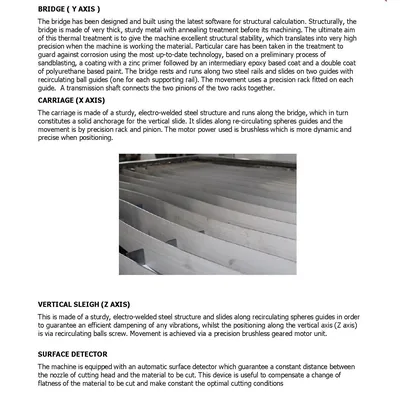

-- Recirculating ball guides
-- Precision reduction gears and rack pinion
-- Lubrication system
-- High pressure pump

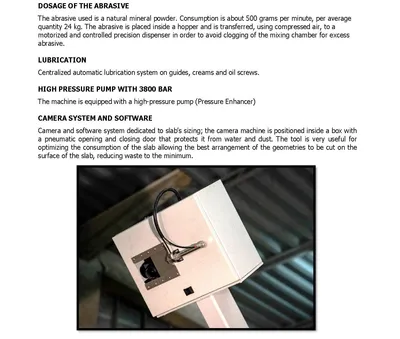

-- Camera system and software
High precision and repeatability under 1/10 mm necessary to have precise cuts of the surfaces which will be jointed such as mosaics and inlay jobs.
