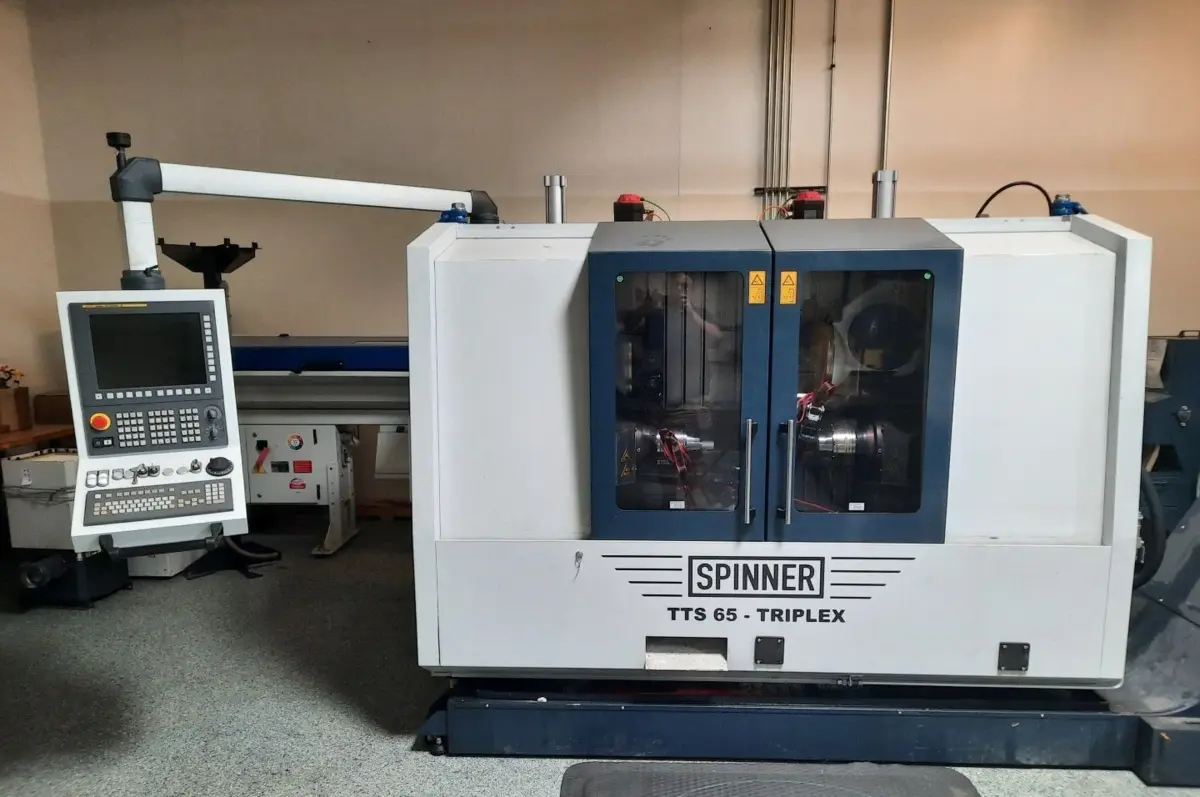

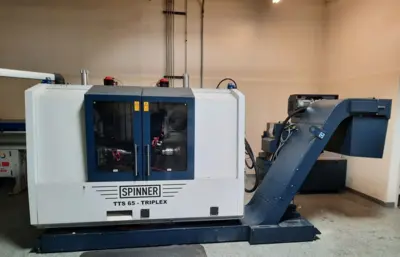

2022 Spinner TTS-65 Twin Spindle Triple Turret CNC Lathe, 65mm Bar Capacity
Have one to sell?
1 available
2022 Spinner TTS-65 Triple Turret CNC Lathe, 65mm capacity, equipped with Fanuc 31i CNC, Iemca Master 880 Bar Feeder, and more. Low hours: 1,015 power-on, 174 run, 74 cut. Ideal for precision and efficiency in advanced machining operations.
Capacity
Bar Capacity (Std) 2.56 in 65 mm
Bar Capacity (Opt) 1.65 in 42 mm
Travel
X1 / X2 / X3 7.08 in 180 mm
Y1 / Y3 +-1.7 in +-45 mm
Z1 / Z3 27.1 in 688 mm
Z2 24.4 in 620 mm
Left/Right Spindle 65mm
Speed 5,000 rpm
Nose A6
Power Chuck 8.3 in 210 mm
Performance (S6 40%) 32.2 hp 24 kW
Torque (S6 40%) 111.3 ft-lb 151 Nm
Left/Right Spindle 42mm
Speed 7,000 rpm
Nose 4.3 in 110 mm
Power Chuck 5.5 in 140 mm
Performance (S6 40%) 29.5 hp 22 kW
Torque (S6 40%) 94.4 ft-lb 128 Nm

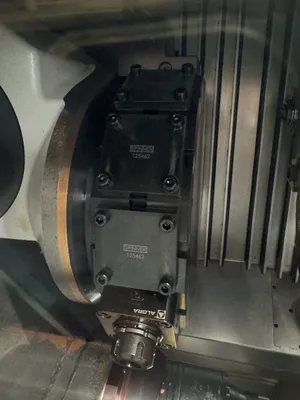

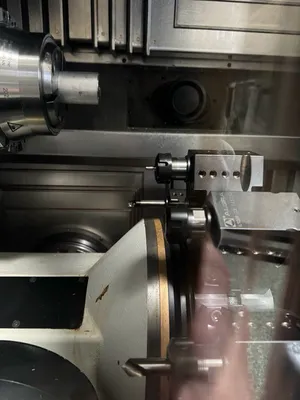

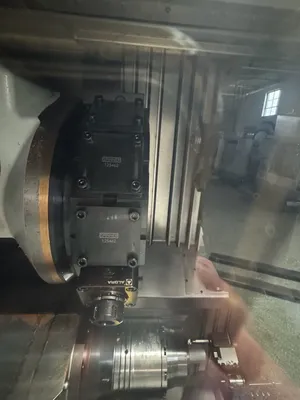

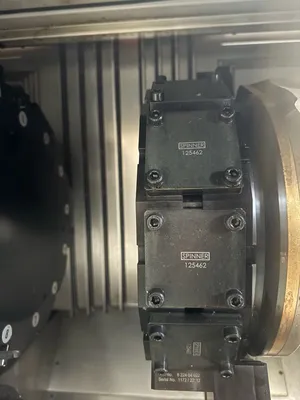

Turrets
Stations per Turret 12 / BMT45
Live Tooling 8,000 rpm
Performance 5.8 hp 4.3 kW
Torque 10 ft-lb 13.6 Nm
Fanuc 31i CNC Control

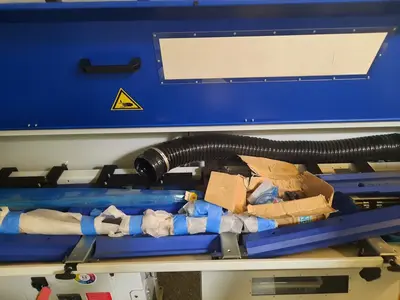

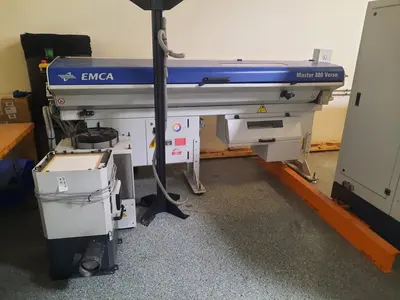

6' Iemca Master 880 Verso Bar Feeder

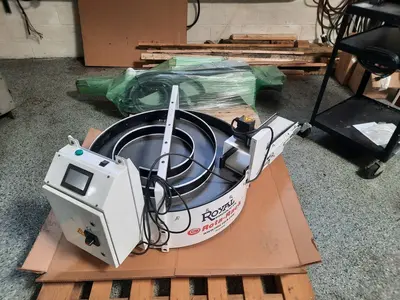

Royal Rota Rack

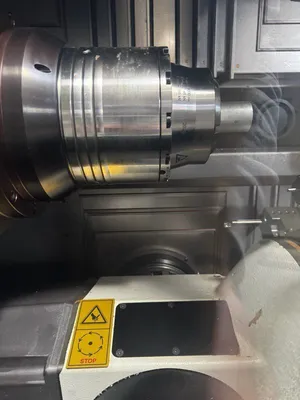

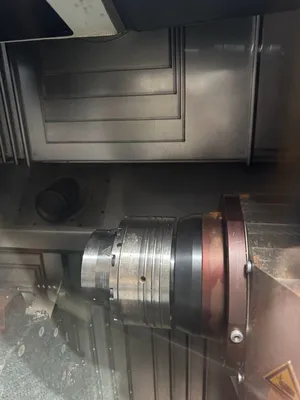

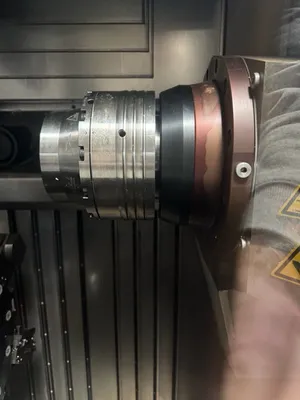

Collet Chucks Main & Sub
Misc. Tool Holders

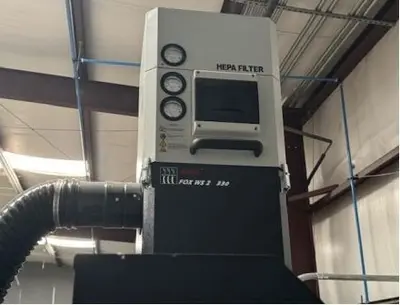

Mist Collector

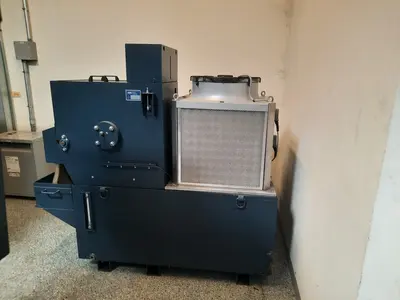

Transformer
1,015 POWER ON HOURS
174 Run TIME HOURS
74 CUT TIME HOURS
***Like New Condition***
2022 Spinner TTS-65 Triple Turret CNC Lathe, 65mm capacity, equipped with Fanuc 31i CNC, Iemca Master 880 Bar Feeder, and more. Low hours: 1,015 power-on, 174 run, 74 cut. Ideal for precision and efficiency in advanced machining operations.
Capacity
Bar Capacity (Std) 2.56 in 65 mm
Bar Capacity (Opt) 1.65 in 42 mm
Travel
X1 / X2 / X3 7.08 in 180 mm
Y1 / Y3 +-1.7 in +-45 mm
Z1 / Z3 27.1 in 688 mm
Z2 24.4 in 620 mm
Left/Right Spindle 65mm
Speed 5,000 rpm
Nose A6
Power Chuck 8.3 in 210 mm
Performance (S6 40%) 32.2 hp 24 kW
Torque (S6 40%) 111.3 ft-lb 151 Nm
Left/Right Spindle 42mm
Speed 7,000 rpm
Nose 4.3 in 110 mm
Power Chuck 5.5 in 140 mm
Performance (S6 40%) 29.5 hp 22 kW
Torque (S6 40%) 94.4 ft-lb 128 Nm
Turrets
Stations per Turret 12 / BMT45
Live Tooling 8,000 rpm
Performance 5.8 hp 4.3 kW
Torque 10 ft-lb 13.6 Nm
Fanuc 31i CNC Control
6' Iemca Master 880 Verso Bar Feeder
Royal Rota Rack
Collet Chucks Main & Sub
Misc. Tool Holders
Mist Collector
Transformer
1,015 POWER ON HOURS
174 Run TIME HOURS
74 CUT TIME HOURS
***Like New Condition***
