Control: Fanuc 31i-A
Axes: X1,Y1,Z1 (Main) X2,Y2 (Sub) X3,Y3,Z3 (Turret)
C1, C2
Headstock:
Turning Diameter Max: 1.496
Turning Length (in.) Max: 9.842
Bar Capacity (in.) Std: 1.500
Collet Type/Capacity: 1.625
Main Spindle: 5000 RPM
Motor: 15 HP
Sub-Spindle: (Standard) 7000 RPM
Sub spindle Motor: 7.30 HP

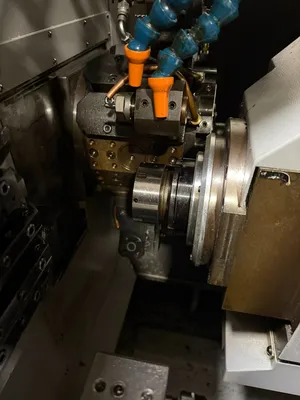

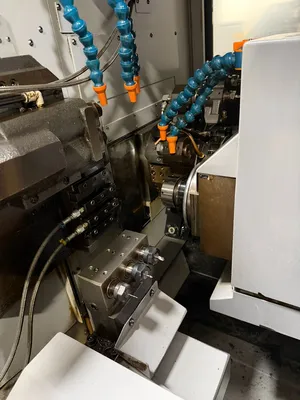

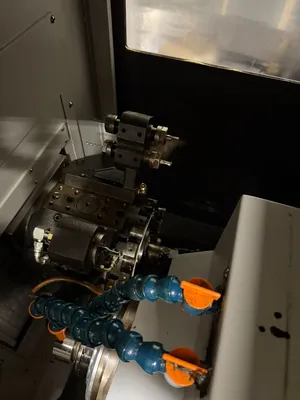

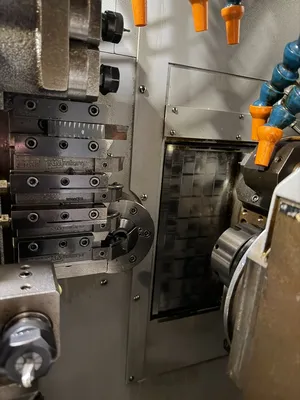

12-Station Turret
Max Tools 12 WITH 4 Rotary
Tool Shank Size (in.): Square: 0.750 Rotary: 0.393
Rotary Tool Spindle: 8,000 RPM
Rotary motor: 1.90 HP

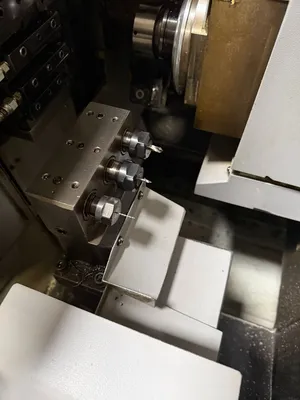

Front Post
Max Tools 4 Turning plus 2 Rotary
Tool Shank Size (inch): Square: 0.625 Rotary: 0.310
Rotary Tool Spindle: 8000 RPM
Rotary Tool Power: 1.30 hp
WEIGHTS AND MEASURES
Length 107" x 71" x 67"H
Weight 13,000 lbs.

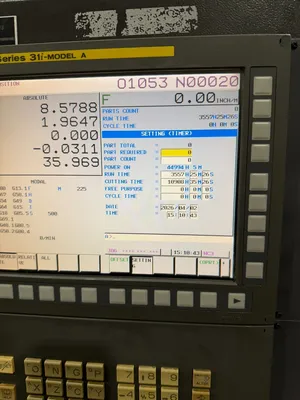

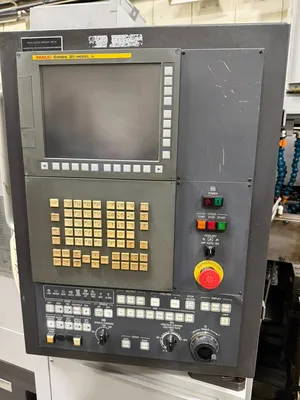

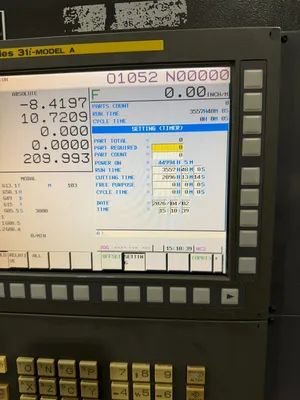

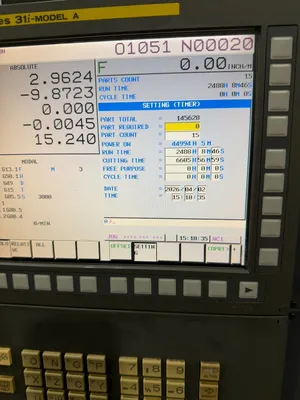

Fanuc 31i-Model A CNC Control

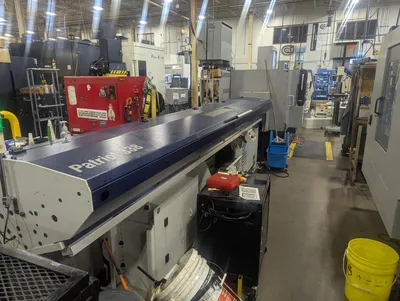

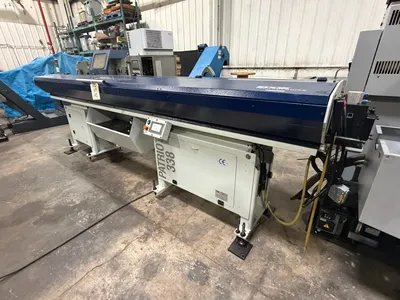

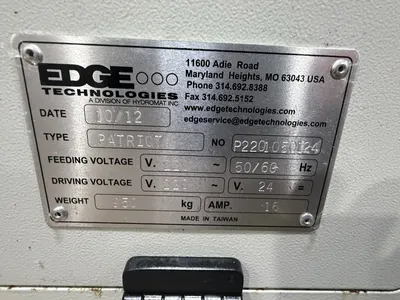

Patriot 338 Bar Feeder

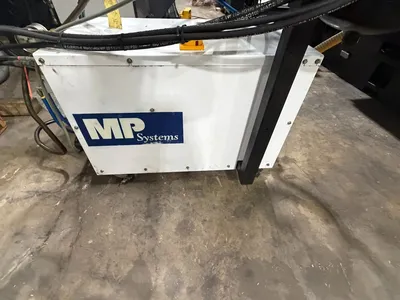

High Pressure Coolant

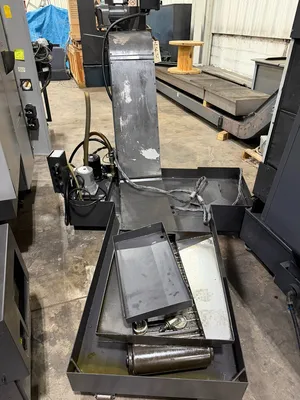

Chip Conveyor
Coolant System
Tooling on Turret Included
This equipment has been sold. Similar equipment available now is shown below.
