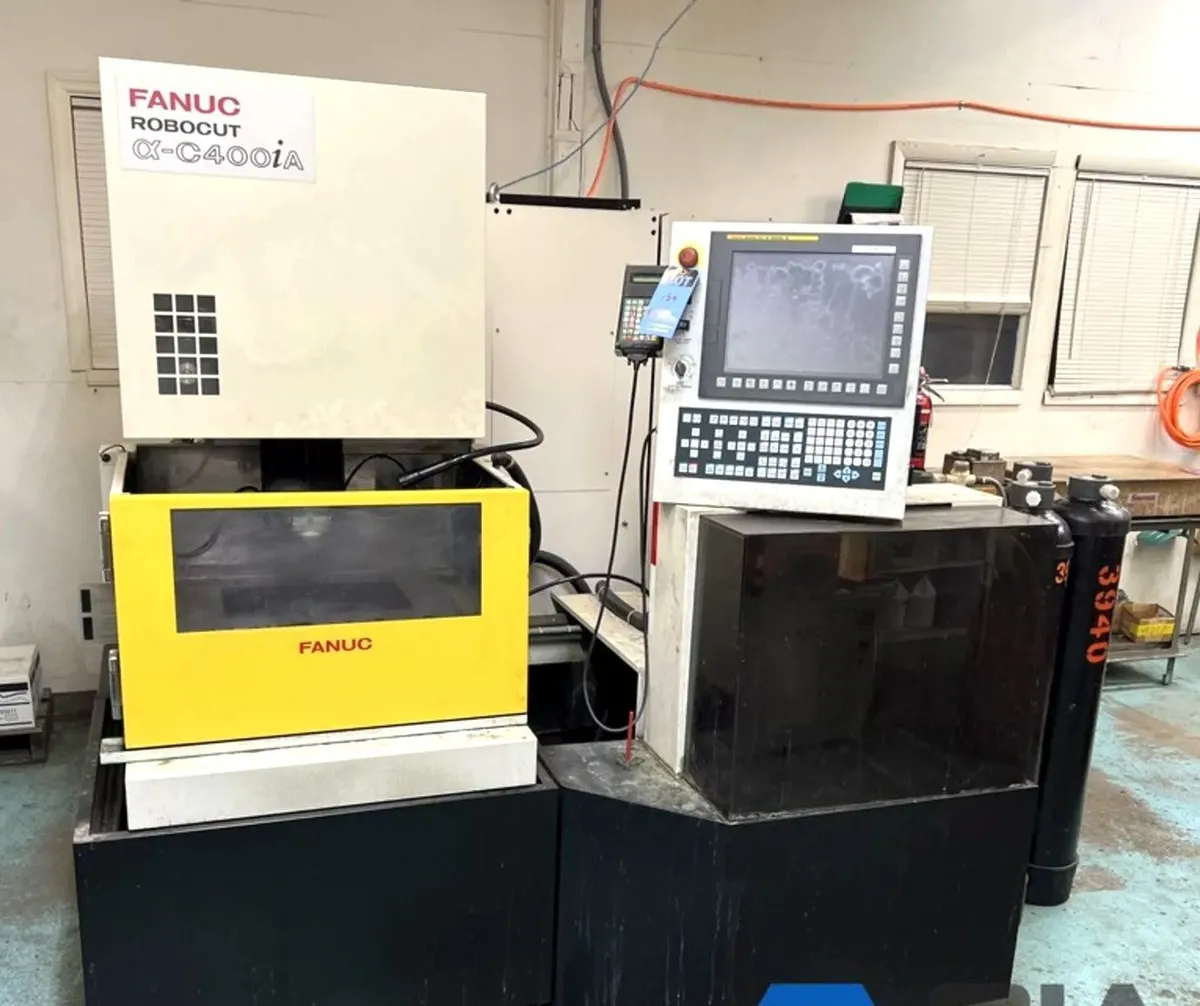

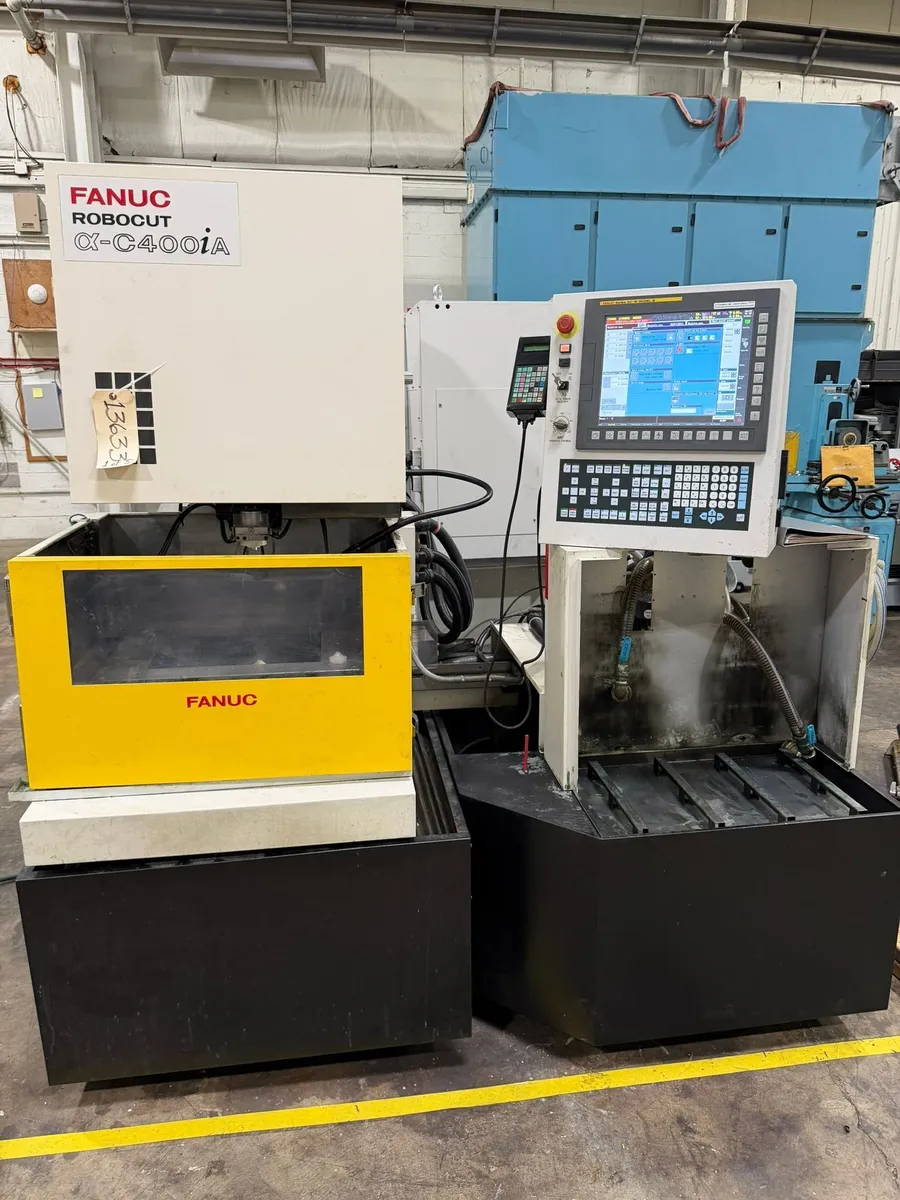

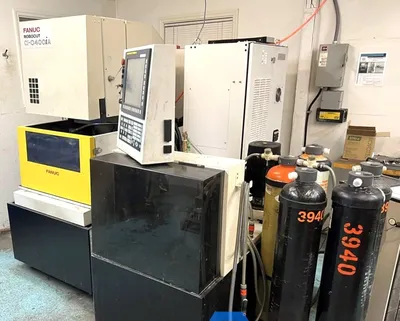

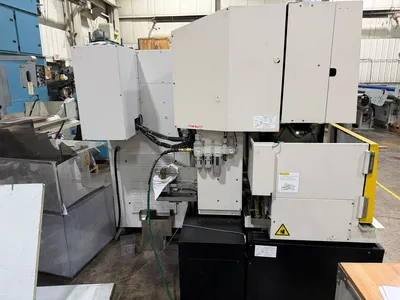

FANUC ROBOCUT A-C400iA 5-AXIS WIRE CUT EDM, NEW 2015

Technical Data
• Main processor .................................................................................. (Qty. 1) 64 bit
• Aux processors .................................................................................. (Qty. 4) 32 bit
• Control method ........................................................................... Servo-closed loop
• Controlled axes .................................................................................... X, Y, U, V, Z
Plus optional rotary axis
• Least input increment .............................................................................. 0.000004”
• Least command increment .................................................................. 0.00000004”
• Interpolation .................................................................................... Linear, Circular
• Maximum programmable dimension ............................................... ±999.99999 in.
• Position command .................................................................. Coordinate Systems
Relative, absolute and machine values

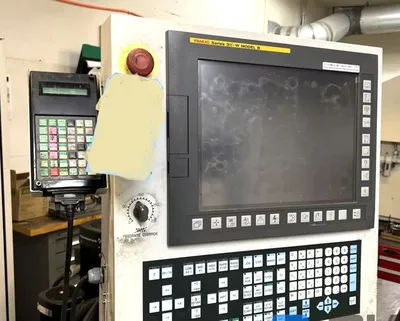

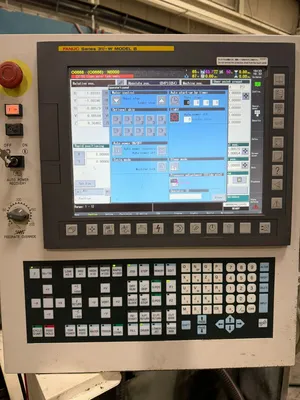

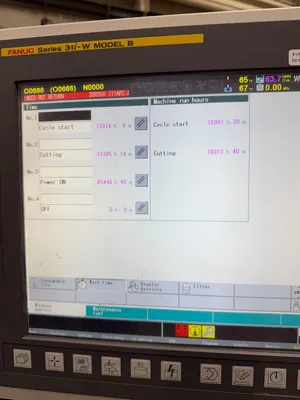

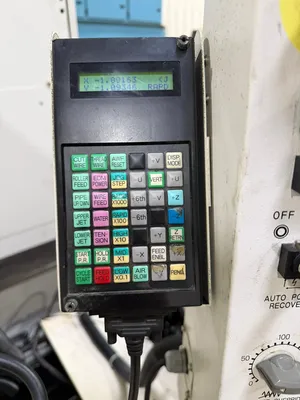

• Display unit ............................................................... 15” color liquid crystal display
• Position display .................................................. Five axes at a time (X, Y, U, V, Z)
Seven axes at a time by option
• Part program storage and editing .................................................. 4 MB (standard)
• Input / output interface ............................................... RS232-C, Ethernet interface,
PCMCIA-ATA style flash card, 2 USB Ports
• Rapid traverse ..................................................................................... 1 ~ 50”/ min.
• Wire diameter compensation ......................................................... 0 - ± 9.99999 in.
A list of M & G Codes utilized by the Fanuc Control is available upon
request
Machine Tool Features
• Floor space .............................................................................................. 92” x 105”
• Machine weight ........................................................................................ 4,000 lbs.
• Maximum cutting speed***
.012” brass wire guides 2.4 in. thick tool steel ......................... 31 square in./hour
0.012” Coated wire 2.4” thick D2 tool steel ........................... 33.5 square in./hour

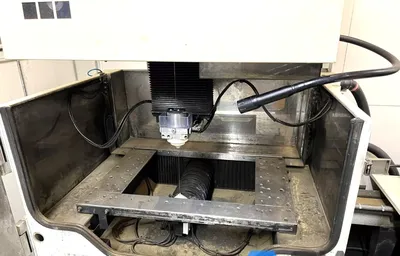

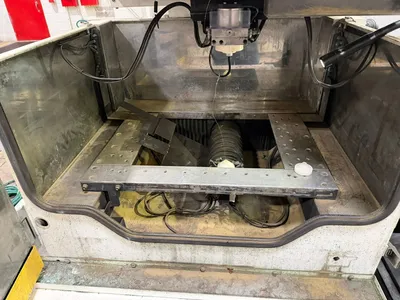

• Internal Worktank Size (X x Y x Z) ............................................ 30.5” x 23.6” x 9.8”
• Maximum submerged cutting depth ................................................................ 9.84”
• Maximum work piece weight .................................................................... 1,100 lbs
• Travel
X Axis ............................................................................................................ 14.6”
Y Axis ............................................................................................................ 10.6”
Z Axis ............................................................................................................ 10.2”
UV axes travel .......................................................................................... ± 2.362”
Rapid traverse ............................................................................................. 1 ~ 50
Work piece thickness @ taper Angle .............................................. ± 12 @ 10 in
Manual threading (jet nozzle removed) ± 30 @ 3.26 in
* Requires optional Diamond guides ± 45 @ 1.6 in
• Positioning accuracy (X, Y) ± 0.0001
• Repeatability (X, Y) ................................................................................ ± 0.000050
• Axes drive motors ........................................................................ AC Servo Motors
.................................................................................. Direct coupled to ball screw

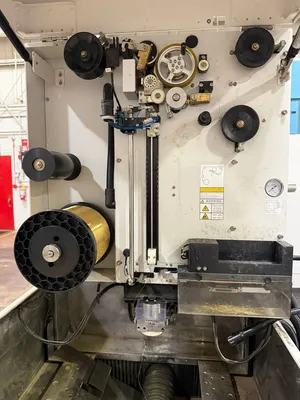

• Wire feed system
Wire feed rate ................................................................................... 0 ~ 590 IPM
Wire tension .................................................................................... 200 ~ 2,500 g
Maximum wire spool weight ........................................................................ 35 lbs
Wire diameter (min. to max.) ......................................................... 0.004 to 0.012”
• Wire guide – upper & lower guide ................................................. Round diamond
............................................................................................................... Die guide

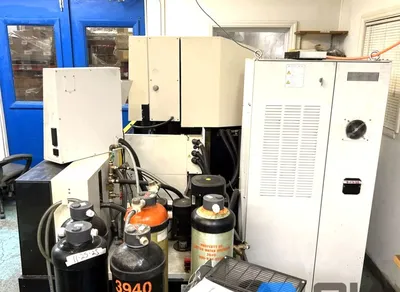

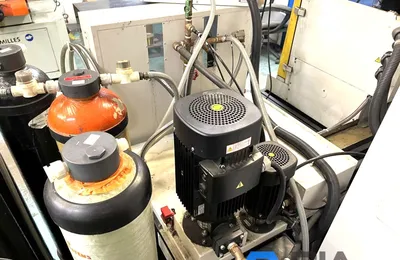

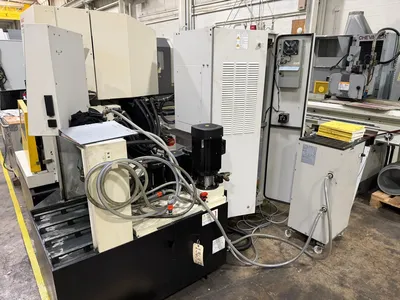

• Dielectric fluid system
Tank capacity ............................................................................................ 145 gal

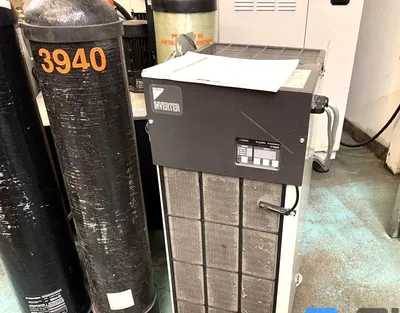

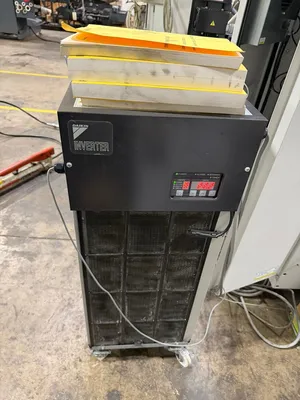

Chiller unit .............................................................................................. Standard
Dielectric fluid .............................................................................. Deionized water
Resin bottle (one plus a spare) .................................................................. 1 cu. ft
Filters (2 each) ....................................................................................... Cartridge
Filtering precision .................................................................................... 3 Micron
Dielectric fluid resistively control .................................................... NC Controlled
• Cutting conditions
Automatic selection of 9 choices for 1 Cut ............................................. Standard
Automatic selection of 9 choices for multiple cut ................................... Standard
Automatic selection of 3 choices for micro finish cut ............................. Standard
• Programming methods
G-Code Programming ............................................................................ Standard
Built-in easy conversational ................................................................... Standard
Off-line system via RS232 or Ethernet interface .................................... Standard

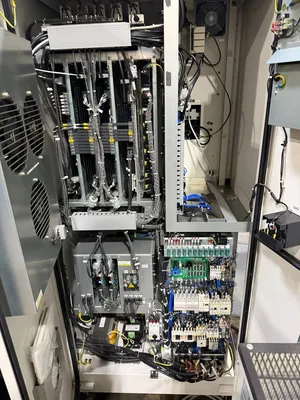

Power Supply Features
• Power supply
Pulse generator type .................................................................. Transistor driven
AC or DC ............................................................................................. Switchable
Power supply circuit .......................................................... Transistor pulse circuit
No loading voltage ............................................................... Setting range 0 – 13
Cutting voltage ..................................................................... Setting range 3 – 18
On time .............................................................................. Setting range 1 – 255
Off time .............................................................................. Setting range 2 – 300
Servo voltage ..................................................................... Setting range 0 – 255
Programmable flushing ......................................................... Setting range 1 - 18
Pulse mode ................................................ Setting range – 1, 2, 3, 4, 11, 12, 13,
............................................................................................. 14 21, 31, 33, 41, 43

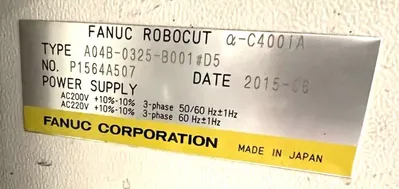

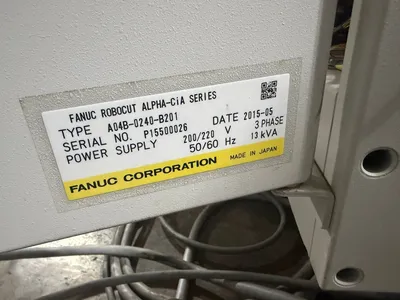

• Total power required .................................................................................... 13 KVA
(200/220 V ± 10%, 3 Phase, 60 Hz)
(CATALOG SPECIFICATIONS)
