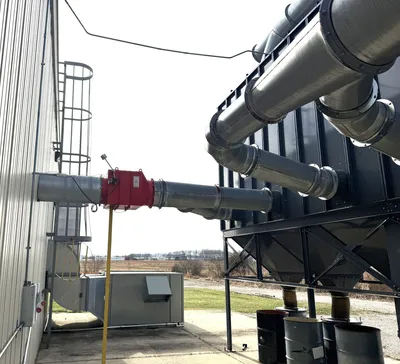

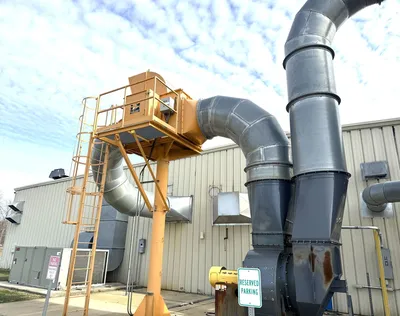

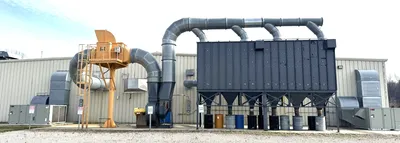

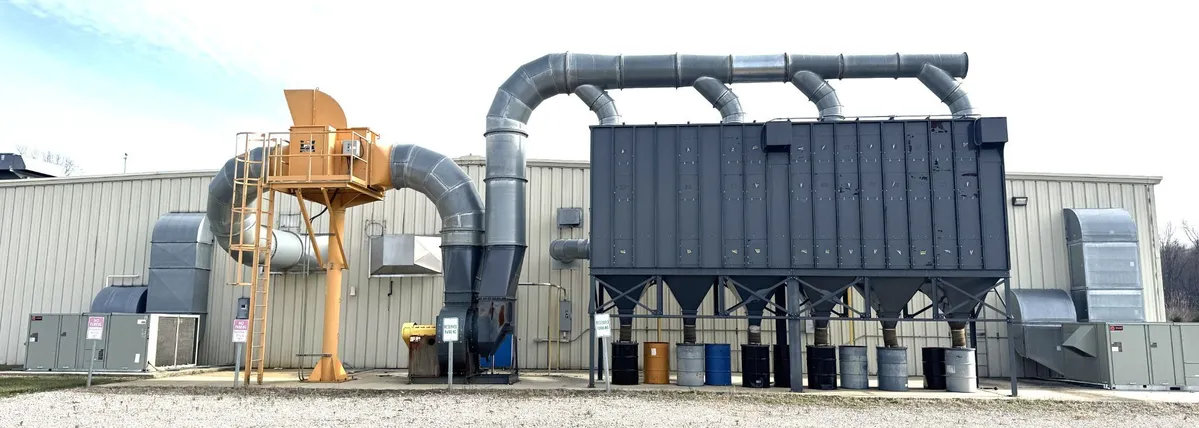

24,000 CFM Aget Model FH58S-6D-SP DUSTKOP Dust collection system

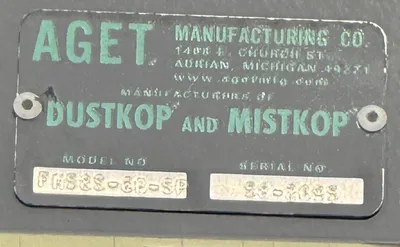

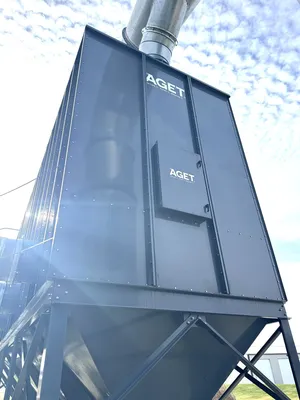

Model FH58S-6D-SP DUSTKOP FILTERKOP
Includes: Two Motor Shakers,
3/4 HP 230/460-3-60-1800 TEFC C-face
motor
FH58 Beane Bag Polyester Filter Tubes
Filter Upgrade Charge from Standard
Material
Special 11 GA Construction of All E,S,R
Panels
Metal Pressure Relief Doors,
FH58/FH58S, 6 per section
Special 14" dia. Inlets with Companion Rings at standard 'E10' inspection panel
locations
Second 'S10' Panel with Access Door
Special 20" dia. Roof Mounted Outlets
with Companion Rings, requiring 2 'R1' panels and 2 'R2' panels
Double R4C Roof Channels, requiring 'R4S-2' Support

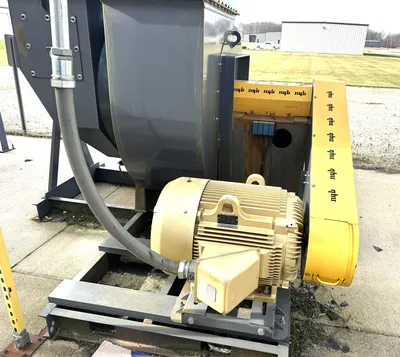

New York Blower Size '33', Backward Inclined fan unit
Including:
Class IV Construction, PLR Wheel Arrangement '1', Upblast

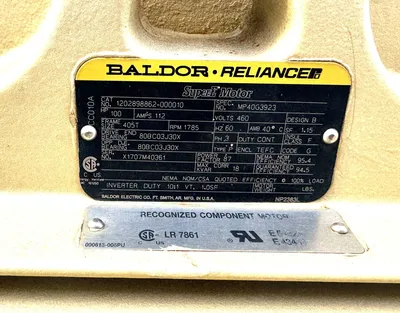

100 HP TEFC Motor, 405T CI Frame,
1800 RPM, 230/460/60/3 Premium Efficiency, Inverter Ready Constant Speed V-Belt Drive Scroll Cleanout Door, Bolted Scroll Drain
Flanged Inlet & Outlet Shaft Seal
OSHA Guards (Belt Guard & Shaft Cover)
Inlet Box with drain & cleanout door Parallel Vane Outlet Damper
Unitary Base with Inlet Box Extension Finished In/Out with AGET Standard S-W RAL 7015 GL Powdura Powder Coating Performance Rating: 24,000 CFM @ 18 SP
New York Blower Size '33', PLR Class IV Outlet Transition to 40" dia. with
Companion Ring (by AGET)
New York Blower Size '33', PLR Class IV Inlet Box Transition to 36" dia. with
Companion Ring (by AGET)
Pressure Activated Alarm Per Print
#SPL-040599, 0-5" w.c. range
55 Gallon Drum

Electrical Control Panel, Custom Designed for 480/60/3 Input NEMA Type '12' Enclosure
Fusible NEMA Disconnect (200 amp) Variable Frequency Drive (100 HP Fan Motor)
2 NEMA Size '00' Starters (2-3/4 HP Shaker Motors)
Control Transformer (480/120) Start Pushbutton
Stop Pushbutton
E-Stop Pushbutton
H-O-A Selector Switch
5 Pilot Lights (system "GO-NO GO") 4 Pilot Lights (faults for EBD, abort damper, OL trip, phase fault
2 Shaker Timing Relays 5 Run Relays
3 Phase Monitor Cooling Fan with Grill
Fuse Blocks, Fuses, Terminals, Wiring, Etc.
UL508 Certification

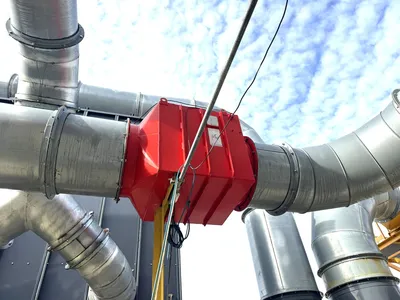

Explosion Backdraft Damper, 20"
Micro Switch for Automatic System Shut
Down
Dust Level Sensor
Control Panel for Explosion Backdraft
Damper, UL Labeled
Explosion Backdraft Damper, 16"

Micro Switch for Automatic System Shut Down
Dust Level Sensor
Control Panel for explosion backdraft
damper, UL labeled

Price is on location

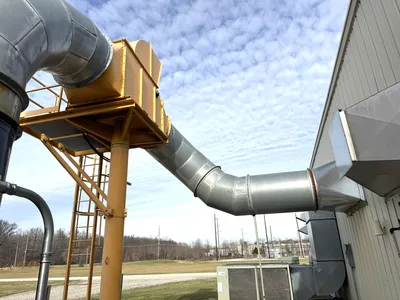

NOTE: Total Price Includes- (1) Rodair Model VDR High-Speed Abort Gate and
(1) Lot Ductwork, Both Supplied by Collectors & Filters
