KAESER BSV 101 25HP VACUUM PUMP,NEW 2021, 367 CFM
Model BSV 101
Capacity 367 acfm
Maximum Vacuum 99%
Vacuum Pressure Range 10 to 29 inHgV
Rated Power 25 hp
Inlet Air Temperatures Up to +115 ºF
Weight 1698 lb
Vacuume Connection 3 in
Air Discharge 2-1/2 in
Ambient Temperature Up to +115 ºF
Dimensions
Length 65-3/4 in
Width 40-1/2 in
Height 55-1/4 in
Power Supply
Voltage 230 V 460 V
Phase 3
Frequency 60 Hz
Advantages
Extremely efficient:
IE3 motors
Quiet operation:
Soundproofing and vibration isolation mounts ensure low noise levels and smooth, quiet operation.
Easy installation and service-friendly:
All units arrive piped and wired, ready for installation. Wide-opening doors and a removable rear panel facilitate easy access to all maintenance components.
Lower your Operating Costs
Lower your Operating Costs
The V-belt drive system with automatic tensioning powers the airend at precisely the right speed. The motor power is transmitted to the airend as efficiently as possible, saving energy and improving package reliability.
Equipment
Vacuum Airend
Rotary screw vacuum airend with energy-saving SIGMA profile
V-belt Drive
Automatic belt tensioning
Inlet valve controlled by a solenoid valve
Cooling oil pump (gear pump)
Electric Motor
Premium Efficiency IE3
IP 55 (ASV series: IP 54)
Class F insulation
Cooling
Air-cooled aluminum fluid cooler.
Cooling Fluid Circuit
Thermostatic valve.
Bypass of full-flow micro-filter with replaceable insert.
Combined fluid reservoir and separator tank with pressure relief valve.
Multi-stage separator cartridge.
Fluid level sight glass, drain valve, and hose.
Quick-release couplings for measuring pressure differential.
Separator cartridge.
Control Cabinet
IP 54
115 V control voltage
Direct motor start-up
Motor overload protection relay
General Design
Compact enclosure mounted on a solid base frame equipped with anti-vibration mounts.
Powder-coated surfaces.
Mineral wool soundproof lining.
Access doors on top and side.
Replaceable cooling air filter.
Airend and motor on anti-vibration mounts.
Flexible piping.
Belt drive and fan with full guard.
Vacuum filter with pressure transducer to indicate clogging.
Infinite control of inlet valve opening via partial-load controller.
Units shipped standard with Dual control. Other control profiles available for selection..
Gas ballast unit for enhanced water vapor tolerance.

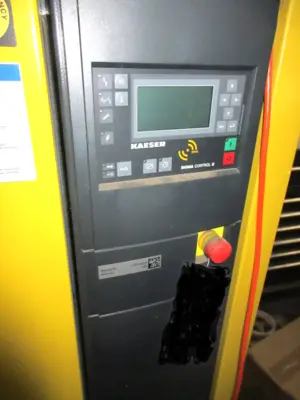

Sigma Control 2
"Traffic-light" LED indicators show operational status at a glance
Plain text display
30 selectable languages
Soft-touch keys with icons
Fully automated monitoring and control
Dual, Quadro, Vario and Continuous control profiles included as standard
Interfaces: Ethernet connection to Sigma Network
Additional optional communications modules for: Profibus DP, Modbus, Profinet and DeviceNet
SD-card slot for data-logging and updates
RFID reader
Web server
Additional Information
Additional Information
Innovation you can trust
With a cutting edge research and development team committed to building industry-leading products, Kaeser continues to deliver better solutions to meet our customers' compressed air and vacuum needs. Kaeser's expertise and world-wide reputation for superior reliability and efficiency offer great performance and peace of mind.
Kaeser reliability
Kaeser's vacuum screw compressors meet our rigorous "built for a lifetime" standard. Designed and built with Kaeser's generations of manufacturing experience, you can rest assured that these packages will continue to deliver the level of vacuum you need with the exceptional reliability you expect from a Kaeser product.
Service-friendly
