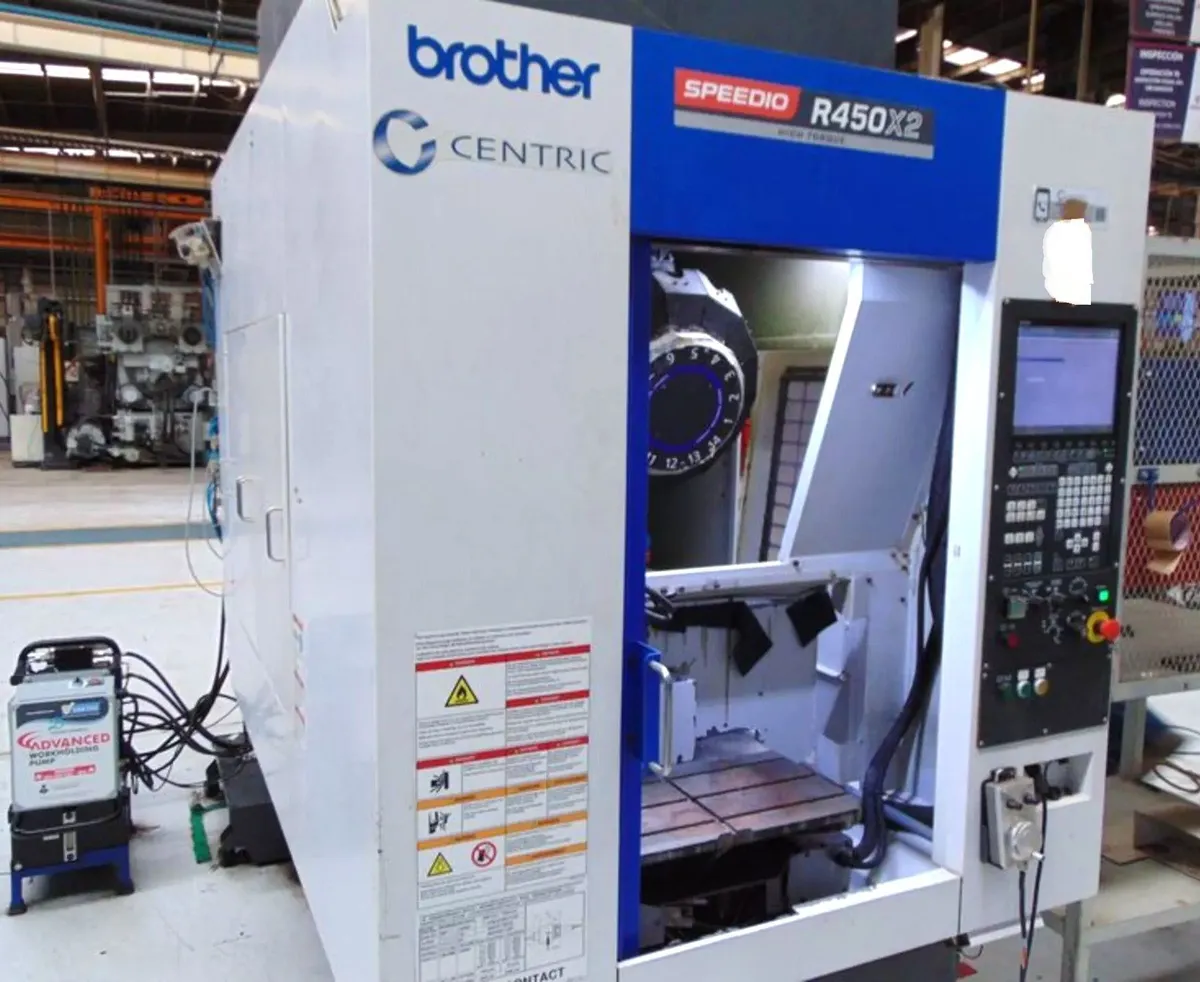

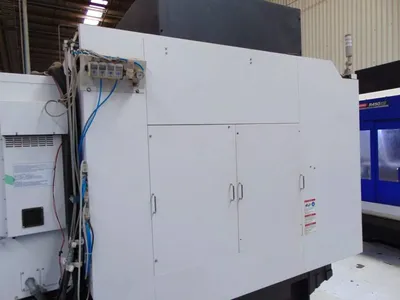

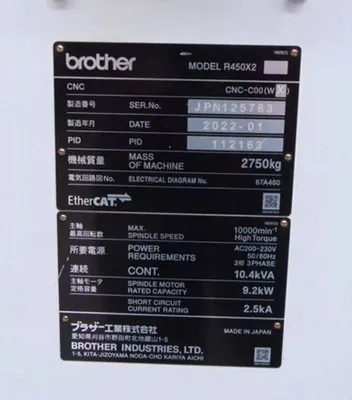

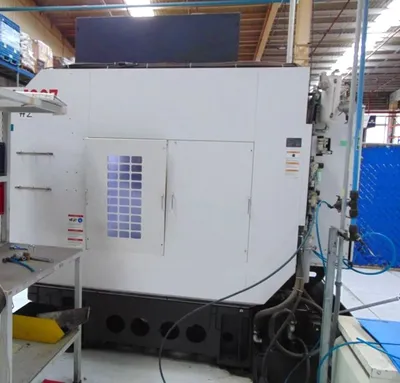

Brother Model R450X2 twin Pallet High Speed Drill Tap Vertical, NEW 2022

Brother Speedio R450X1 (Quick Turn Table)
CNC Vertical Machining Center
Specifications (subject to buyer verification):
Type0 deg./180 deg. turntable system
Table dimension 23.6 x 16.5 (one face)
Max. turning diameter 40.2
Max. jig height 11.8
Table work area size 23.6 x 11.8 one face
Max. loading capacity 265 lbs
Table position time 2.9s
X Axis Travel17.7”
Y Axis Travel12.6″
Z Axis Travel12″
Spindle Nose to Table7.9” – 19.9”

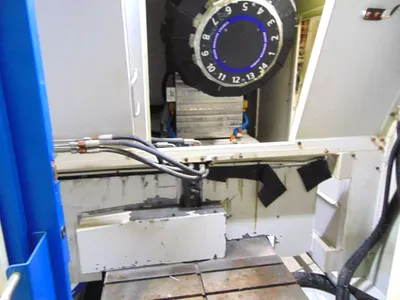

Automatic Tool Changer 14 Stations
Spindle TaperBT30 Taper
Spindle Speed in RPMS10,000 RPM (high Torque)
Spindle Motor6.5 HP (4.9 kW)
Change Time (Tool to Tool / Chip to Chip).8 sec / 1.6 sec
Feedrate Rapid on (X,Y,Z)1969 IPM
Cutting Feedrate1181 iPM
Equipped With (subject to buyer verification):

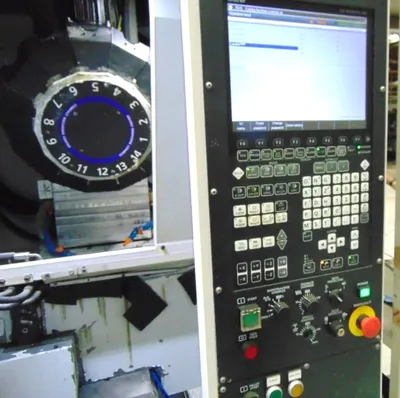

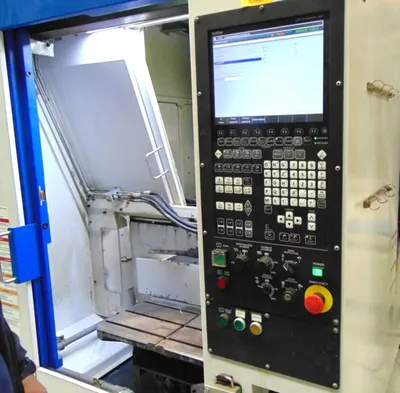

CNC-C00 CNC Control
10k spindle high torque
14 tools

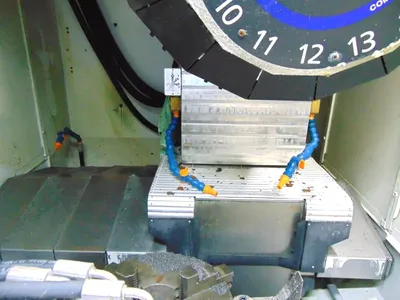

Quick Turn Table (2-Pallet)

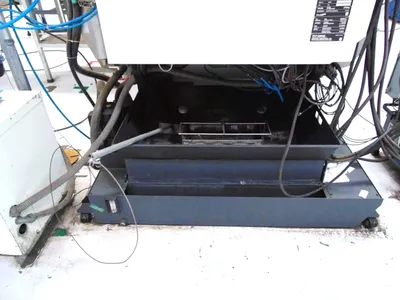

Chip Conveyor

Type 0 deg./180 deg. turntable system
Table dimension [mm (inch)] 600 x 420 (23.6 x 16.5) (one face)
Max. turning diameter [mm (inch)] D1,020 (40.2) [D1,100 (43.3)]*1
Max. jig height [mm (inch)] 300(11.8) [350 (13.8)]*2
Table work area size [mm (inch)] 600 x 300 (23.6 x 11.8) (one face)
Max. loading capacity [kg (lds)] 120 (265) [200 (441)] (one face)*3
Rated table load inertia for turning axis [kg·m2] 14.2 [23.5] (one face)*3
Table turning system AC servo motor (1kW) Worm gear (total speed reduction ratio:1/50)
Table position time 2.9s*4td>
Table change repeatability [mm (inch)] 0.01 (0.0004)
(in the X,Y, and Z axes directions 270(10.6) from the center of rotation)

The Brother R450X1 Speedio is a compact and versatile CNC drill tap machining center that offers high-speed and high-precision capabilities. Here are its key features: - High-Speed Machining: The R450X1 is designed for high-speed machining operations, delivering rapid traverse rates and quick tool changes to minimize cycle times and maximize productivity. - CNC Control System: The machine is equipped with a user-friendly CNC control system that offers intuitive programming and operation. It provides advanced features for optimizing cutting parameters and monitoring machining processes. - High-Speed Spindle: The machining center features a high-speed spindle capable of delivering fast and precise cutting performance. The spindle enables efficient drilling, tapping, and milling operations. - Precision and Accuracy: The R450X1 ensures high precision and accuracy in machining, thanks to its rigid construction and advanced motion control systems. It is capable of achieving tight tolerances and maintaining consistent quality in parts production. - Versatile Machining Capabilities: The machine offers versatile machining capabilities, including drilling, tapping, milling, and thread milling operations. It can handle a wide range of materials, making it suitable for various industries and applications. - Tool Management System: It features a tool management system that allows for efficient tool storage, tracking, and selection. This simplifies tool setup and ensures optimal tool utilization during machining. - Chip Management: The machining center incorporates effective chip management systems, such as chip conveyors and chip washers, to ensure efficient chip evacuation and maintain a clean work environment. - Connectivity and Data Management: It offers connectivity options, such as USB and Ethernet ports, for easy program transfer and data management. This enables seamless integration with external systems and supports efficient production planning. The Brother R450X1 Speedio CNC Drill Tap Machining Center combines compact size, high-speed machining capabilities, and versatile functionality. It is well-suited for a range of applications, including small to medium-sized parts production, and is particularly beneficial in high-volume manufacturing environments where speed and efficiency are paramount.
