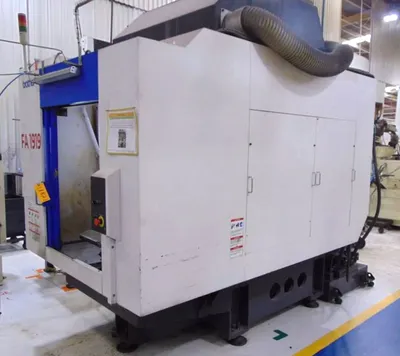

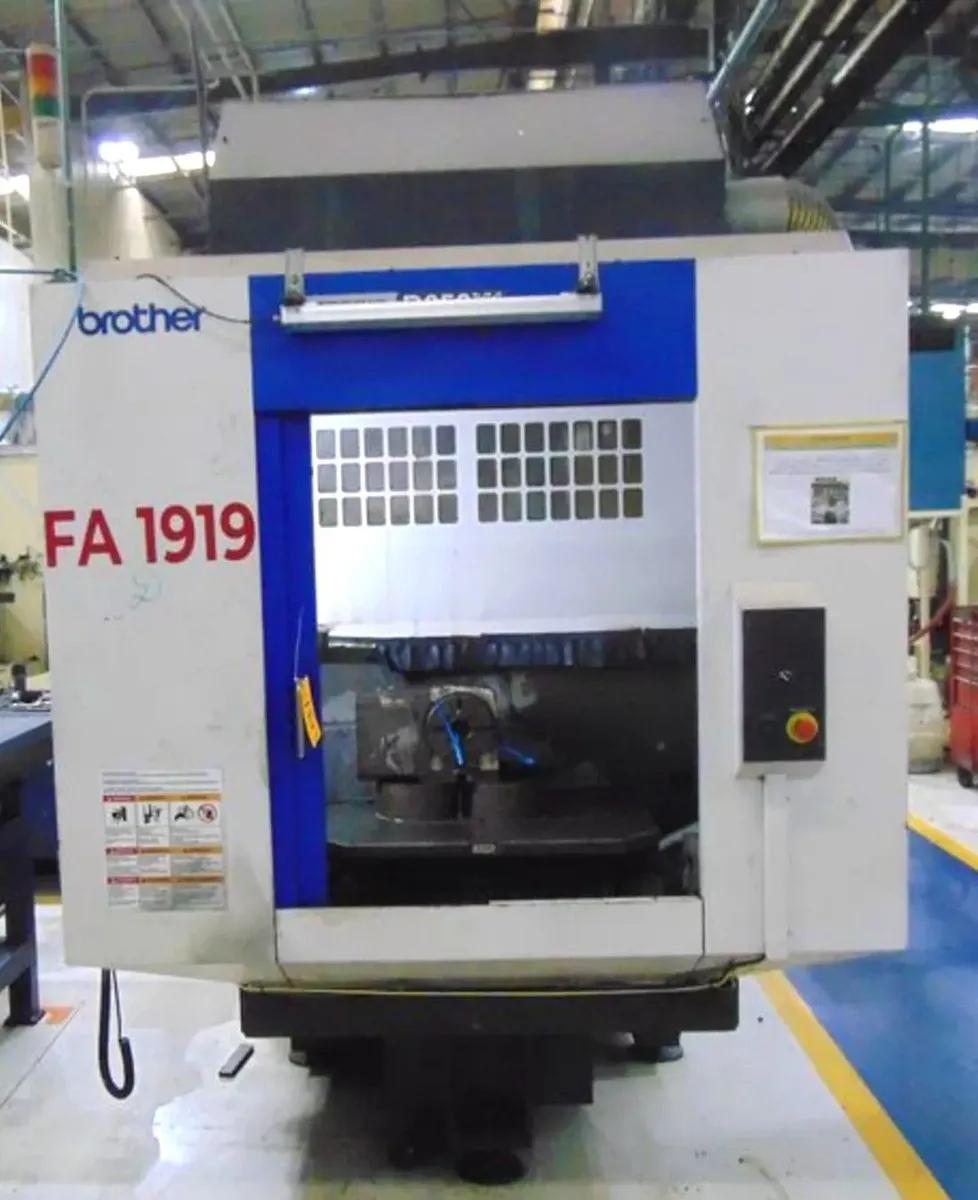

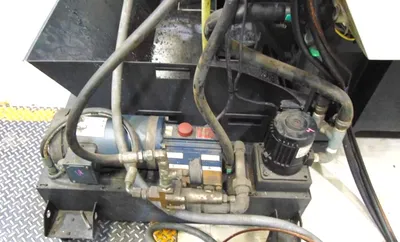

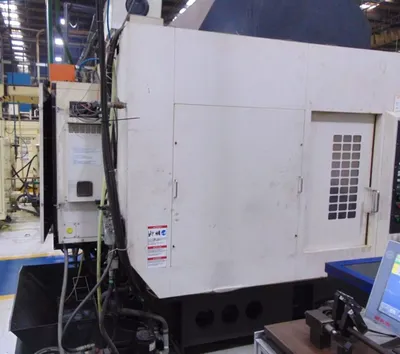

BROTHER SPEEDIO R650X1 4-AXIS CNC DRILL TAP CENTER, NEW 2018

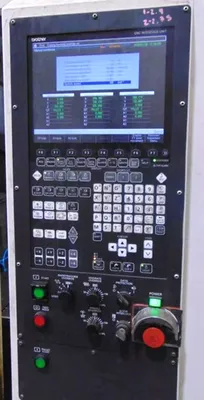

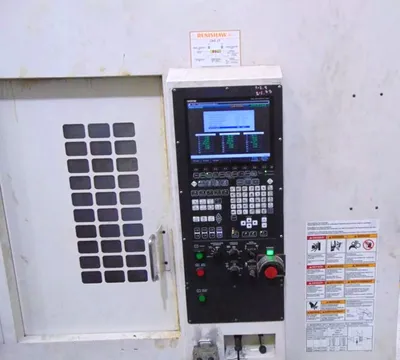

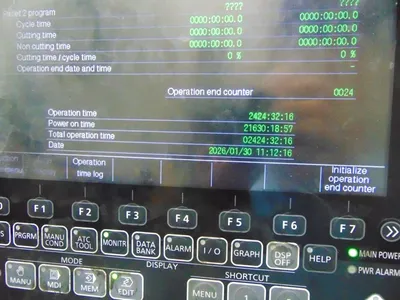

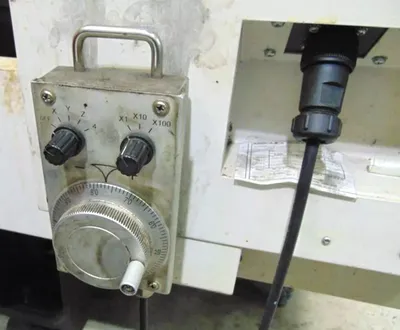

CNC unit CNC-D00
Travels X axis [mm (inch)] 650 (25.6)
Y axis [mm (inch)] 400 (15.7)
Z axis [mm (inch)] 305 (12.0)
Distance between table top and spindle nose end [mm (inch)] 200-505 (7.9-19.9)
[280-585 (11.0-23.0) *8 250-555 (9.8-21.8)
[350-655 (13.8-25.8) *8] 250-685 (9.8-27.0)
[350-785 (13.8-30.9) *8]

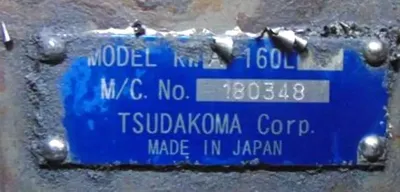

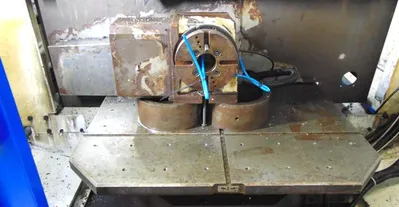

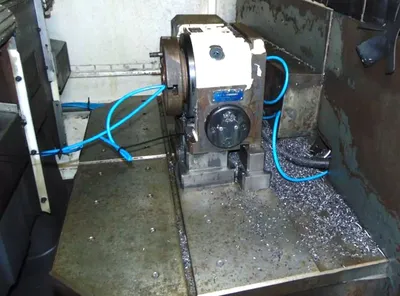

Table Work area size [mm (inch)] One face 600 x 300
(23.6 x 11.8)
Max.loading capacity
(uniform load)
[kg (lbs)] One face 120 (265)
[200 (441) *6] One face 200 (441)
[300 (661) *6]

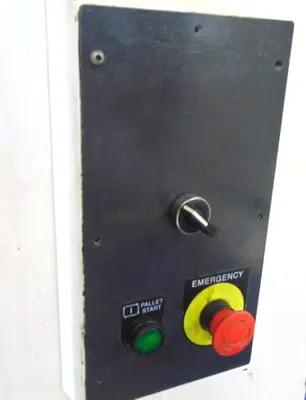

Position time [sec.] 2.7 *11 3.1 *11
Spindle Spindle speed [min-1] 10,000min-1 specifications : 1 - 10,000
10,000min-1 high-torque specifications(Optional) : 1 - 10,000
Speed during tapping [min-1] MAX. 6,000
Tapered hole 7/24 tapered No.30
BT dual contact system
(BIG-PLUS) Optional

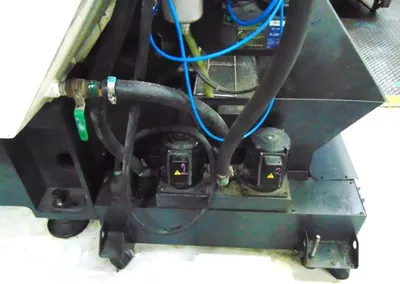

Coolant Through Spindle (CTS) Optional
Feed rate Rapid traverse rate (XYZ-area)
[m/min (inch/min)] 50 x 50 x 50 (1,969 x 1,969 x 1,969)
Cutting feed rate
[mm/min (inch/min)] X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *9
ATC unit Tool shank type MAS-BT30
Pull stud type *4 MAS-P30T-2
Tool storage capacity [pcs.] 14
Max.tool length [mm (inch)] 200 (7.9)
Max.tool diameter [mm (inch)] 80 (3.1)
No adjacent tool
Max.tool weight [kg (lbs)] *1 3.0 (6.6)

Tool selection method Random short cut method Random short cut method Double arm method
(random closet path)
Tool change time *5 Tool To Tool [sec.] 0.6 / 0.7
Chip To Chip [sec.] 1.3 / 1.5
(14-tool 1.4 / 1.5
Electric motor Main spindle motor
(10 min/continuous)[kW] *2 10,000min-1 specifications : 10.1/7.0
16,000min-1 specifications(Optional) : 7.4/5.1
10,000min-1 high-torque specifications(Optional) : 12.8/9.2
Axis feed motor [kW] X, Y axis : 1.0 , Z axis : 1.8

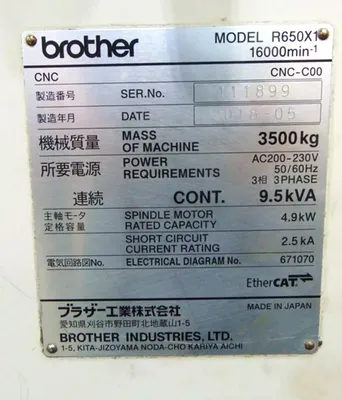

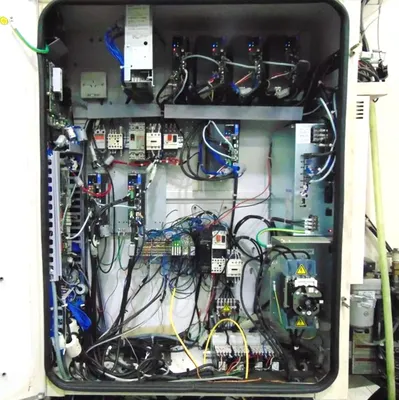

Power source Power supply AC 200 to 230 V±10％, 3-phase, 50/60Hz±2%
Power capacity (continuous) [kVA]
10,000min-1 high-torque specifications(Optional) : 10.4
Air supply Regular air pressure [MPa] 0.4 - 0.6 (recommended value: 0.5MPa *10)
Required flow [L/min] 45 45

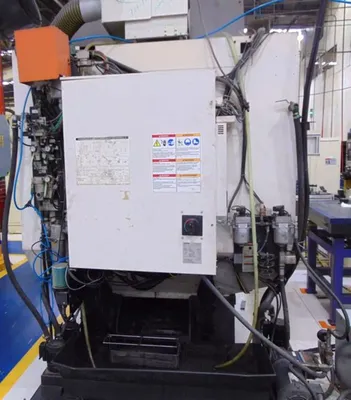

Machine dimensions Height [mm (inch)] 2,584 (101.7) 2,704 (106.5)

Weight (including control unit, machine cover) [kg (lbs)] 3,550 (7,826)
