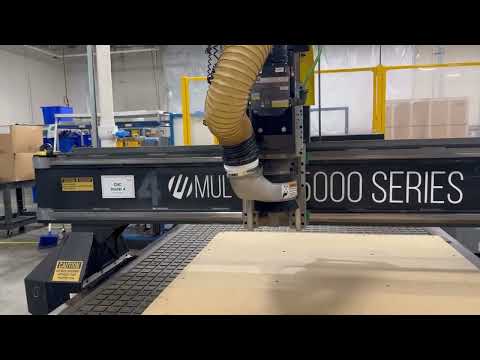

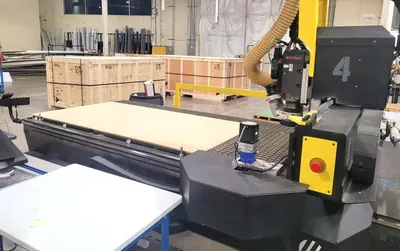

5' X 10' MULTICAM 5000 SERIES CNC ROUTER, NEW 2018

MULTICAM
Model: 5000 SERIES
Year: 2018

High-Speed CNC Router

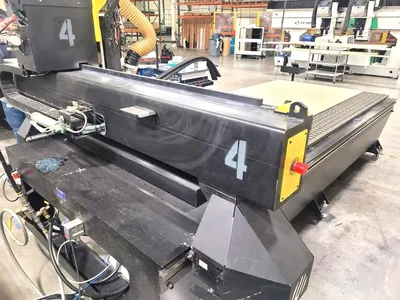

Moving Gantry System
Usage: Plastics, Metals, Woods
OEM: MultiCam (Dallas, TX)
Model: 5000 Series Router
DOM: 2018
Install Date: 5/2018

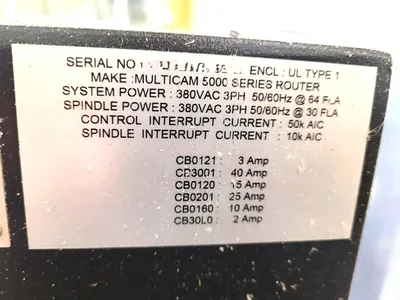

System Power: 380 VAC, 3 Phase, 50-60 Cycle, 64 FLA
Spindle Power: 380 VAC, 3 Phase, 50-60 Cycle, 30 FLA

Features and Specifications:

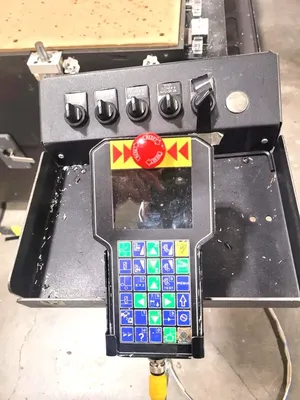

...CNC Controls: MultiCam EZ Control w/ Pendant

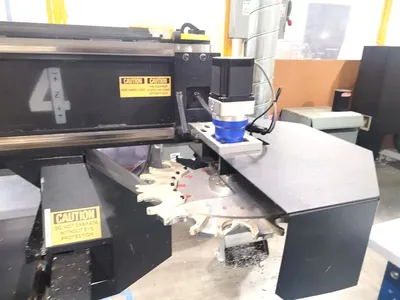

...Tool changer Positions: 12
...Spindle Speed: 24,000 RPM (Standard)

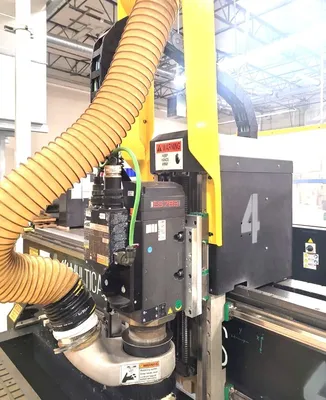

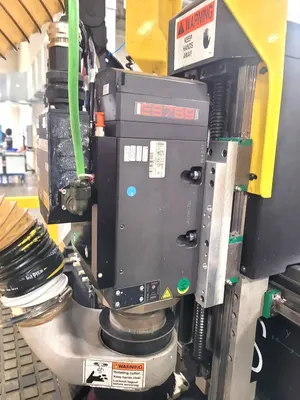

HSD ES789L, 15KW/20HP Spindle
...Cut Speed: 1,800 IPM
...Rapid Traverse: 3,000 IPM
...Z-Axis Clearance: 8"

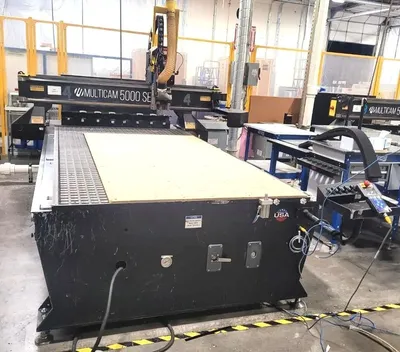

...Table Size: 5' x 10'

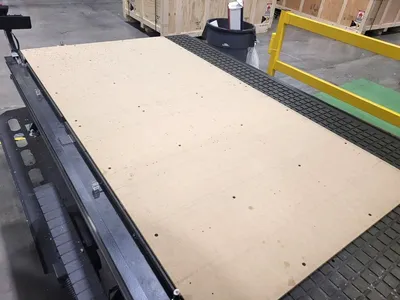

...Table Surface: Phenolic w/ Grid Pattern
...Repeatability: 1/1000th Inch
...Helical Rack & Pinion on X, Y Axis
...Ball Screw on Z-Axis

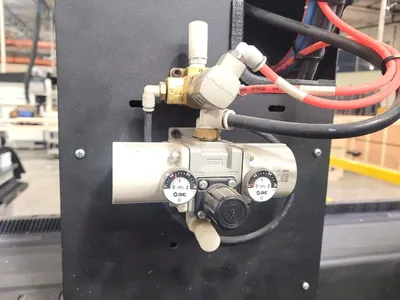

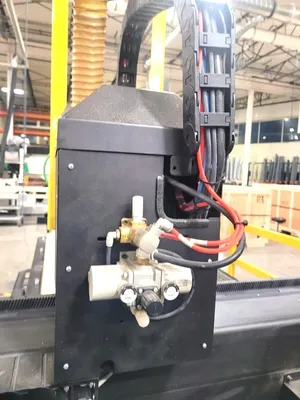

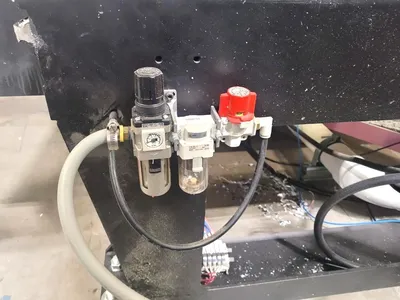

Pneumatic pop up pins

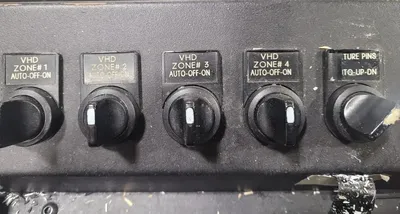

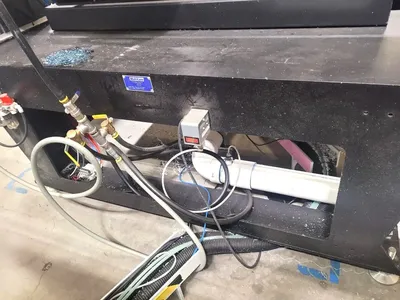

4 zone vacuum table

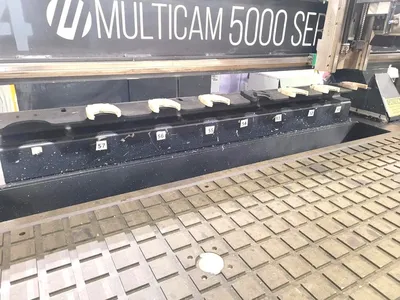

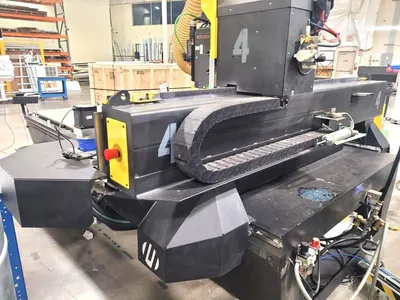

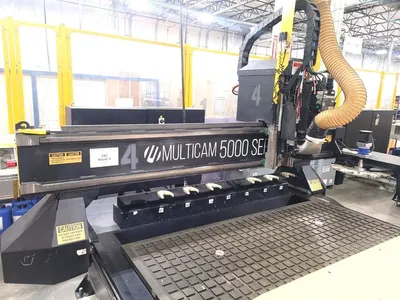

Additional 8 position bar type tool changer

Machine Size (approx.): 156" x 118" x 96"
Working Table (approx.): 61" x 122" (5' x 10')

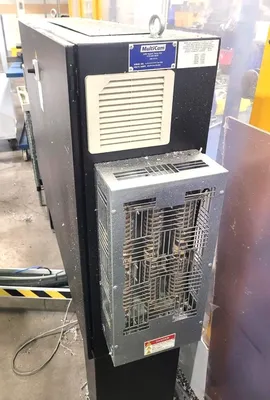

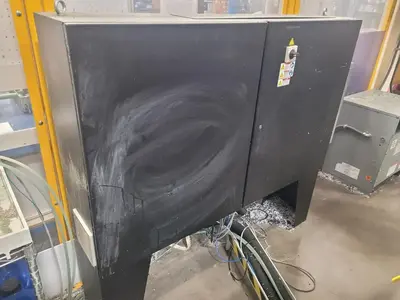

Control Cabinet (approx.): 67" x 16" x 55"
Machine Weight (approx.) 11,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine was purchase new by current owner in 2018; machine was installed at current location on May 2018. The machine is currently in process of being decommissioned because building has been sold. This machine cut plastics for the last 8 years.
