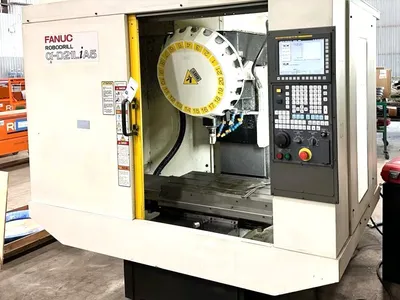

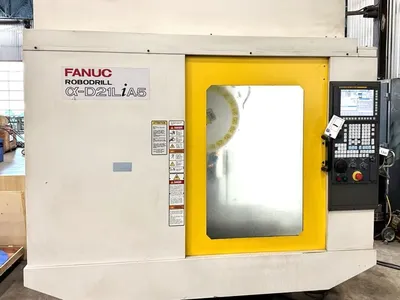

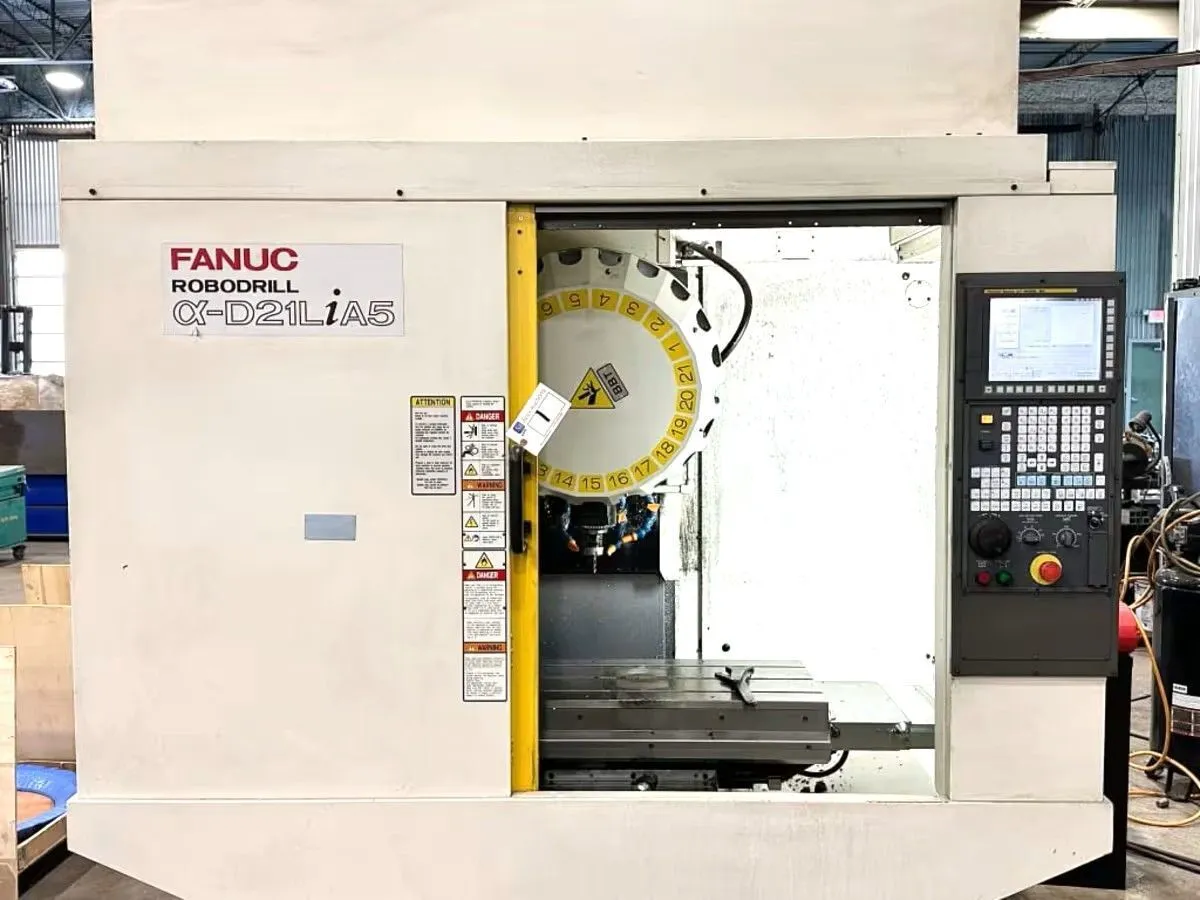

2014 FANUC Robodrill A-D21LiA5 CNC 3-Axis Drill Tap Center

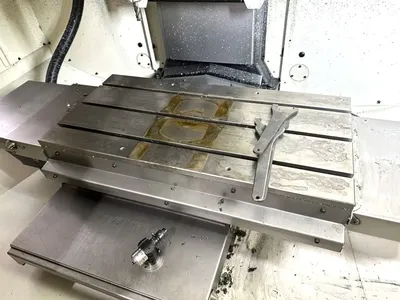

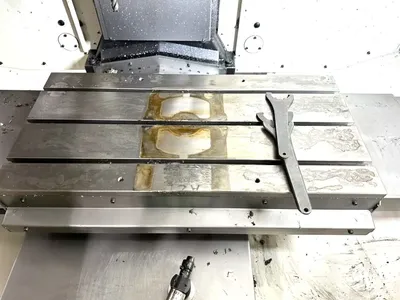

Large Table Size: 25.59″ x 15.74″
Max Table Load: 66.1 LBS

X-Axis Travel 700 mm (27.6 in)
Y-Axis Travel 400 mm (15.7 in)
Z-Axis Travel 330 mm (13.0 in)
A Axis Range -120° to +30° (DDR direct-drive)
C Axis Range 360° continuous (DDR direct-drive)
Ddr Table Diameter ~300 mm (11.8 in)
Ddr Table Load 30 kg (66 lb)

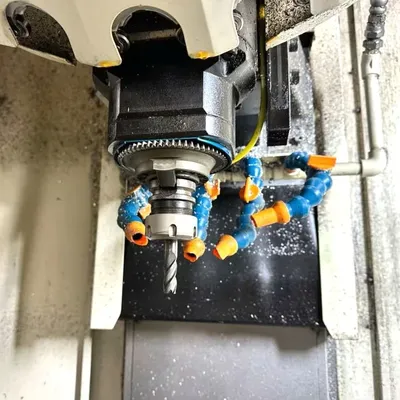

Max Spindle Speed 10,000 RPM (24,000 RPM optional)
Spindle Taper BT30 / BBT30
Spindle Motor Power 11 kW (15 hp) continuous

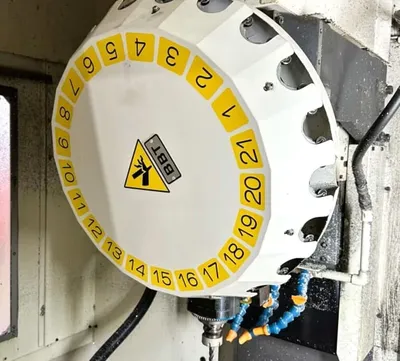

Tool Capacity 21-position turret
Tool To Tool 0.7 sec
Chip To Chip 1.3 sec
Rapid Traverse Rate 54 m/min (2,126 ipm)
Positioning Accuracy ±0.003 mm
Repeatability ±0.002 mm

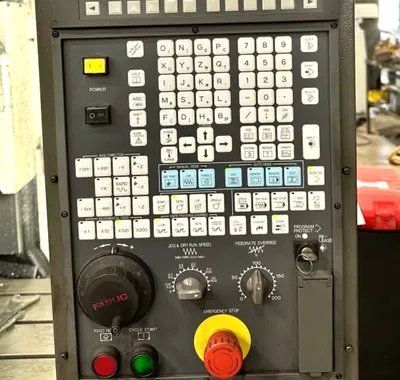

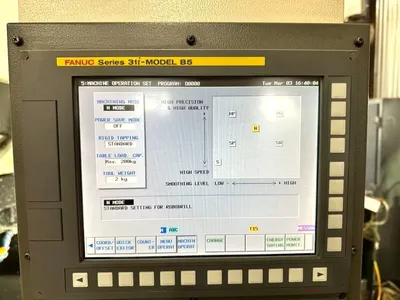

CNC Control Fanuc 31i-A5 (iA5 gen) / 31i-B5 on current production
Machine Weight ~4,200 kg (9,259 lb)

Full simultaneous 5-axis contouring in a compact Robodrill footprint — handles complex aerospace, medical, and impeller geometries that require true 5-axis motion
Direct-drive A and C axes provide fast, backlash-free positioning with no mechanical wear, maintaining 5-axis accuracy over long machine life
Fanuc 31i control is universally supported by all major CAM systems, eliminating post-processor compatibility issues common with proprietary 5-axis controls
700 mm X-travel provides maximum room for the DDR table — reduces interference risks when tilting large fixtures or tall workpieces
0.7-second tool-to-tool change and 54 m/min rapids retain the Robodrill's cycle time advantage even in 5-axis applications
