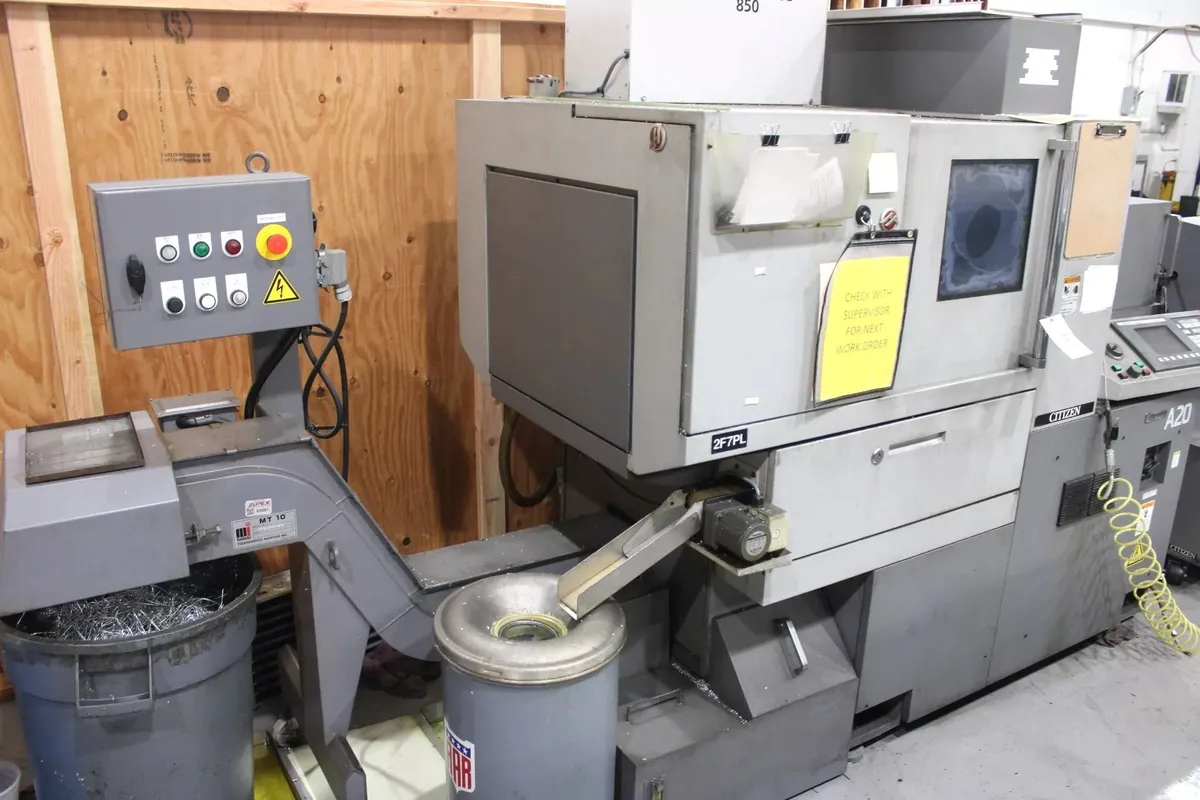

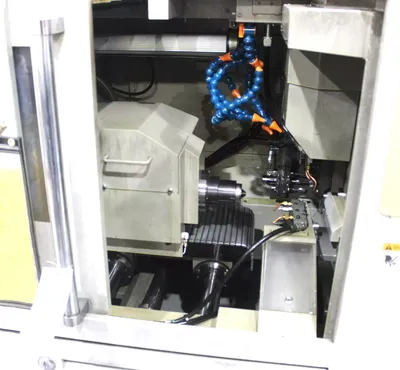

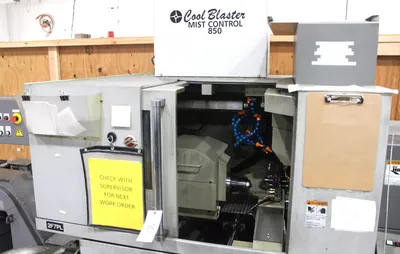

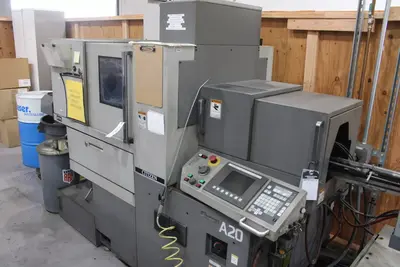

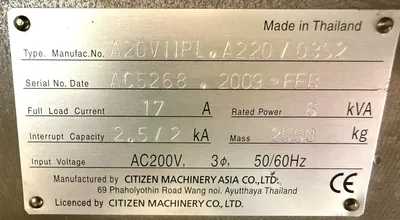

20MM CITIZEN A20 TYPE VIIPL CNC SWISS TYPE AUTOMATIC LATHE, NEW 2009

Max. Machining Diam. 20mm
Max. Machining Length 165mm/1 chucking
Main Spindle speeds 100-8000 RPM
Main Spindle Indexing Full C-axis (.001 Deg)

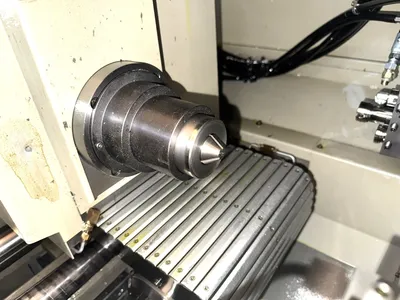

Back Spindle Speeds 100-8,000 RPM
Sub-Spindle Indexing Full C-Axis(.001 Deg)
Rotary Tool Speeds 6,000 Max. RPM
Back Spindle Max. Chucking Diam. 20mm

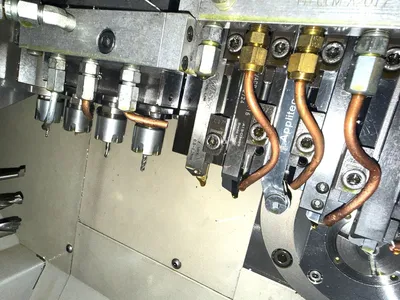

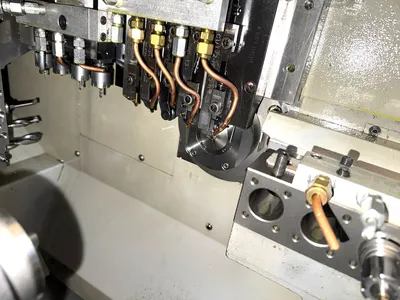

Turning Tools 5 Static on Main Slide
Rotary Live Tools 4 Live on Main Slide

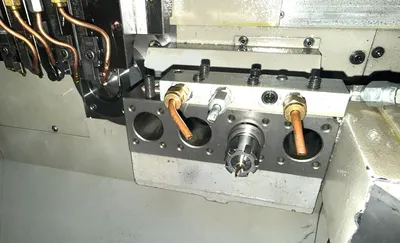

Front Endworking Tools 4 Static

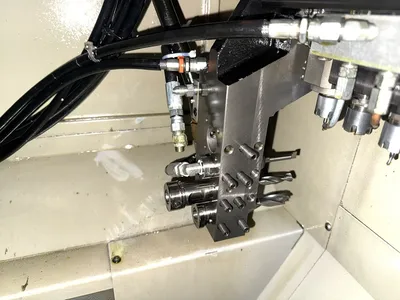

Back Endworking Tools 4 Static
Cutting Tool Shank/Sleeve Size 1/2" Square Shank
1" Diam. Sleeves
Rapid Traverse (X/Y/Z) 32mm/min X2, Y1,Z1
Z2 & 18 m/min on X1
Main Spindle Drive 5 HP/3 HP
Back Spindle Drive 2 HP
Rotary Tool Drive 1 HP
