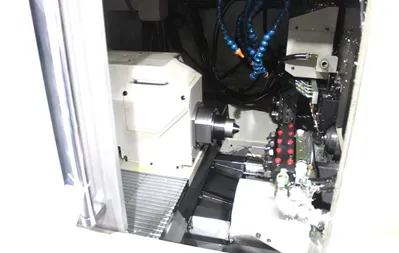

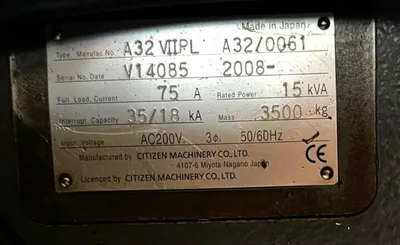

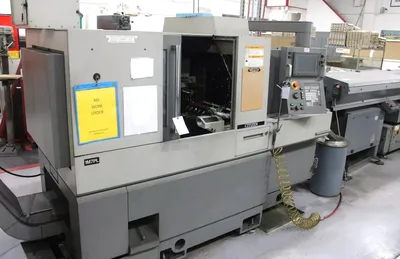

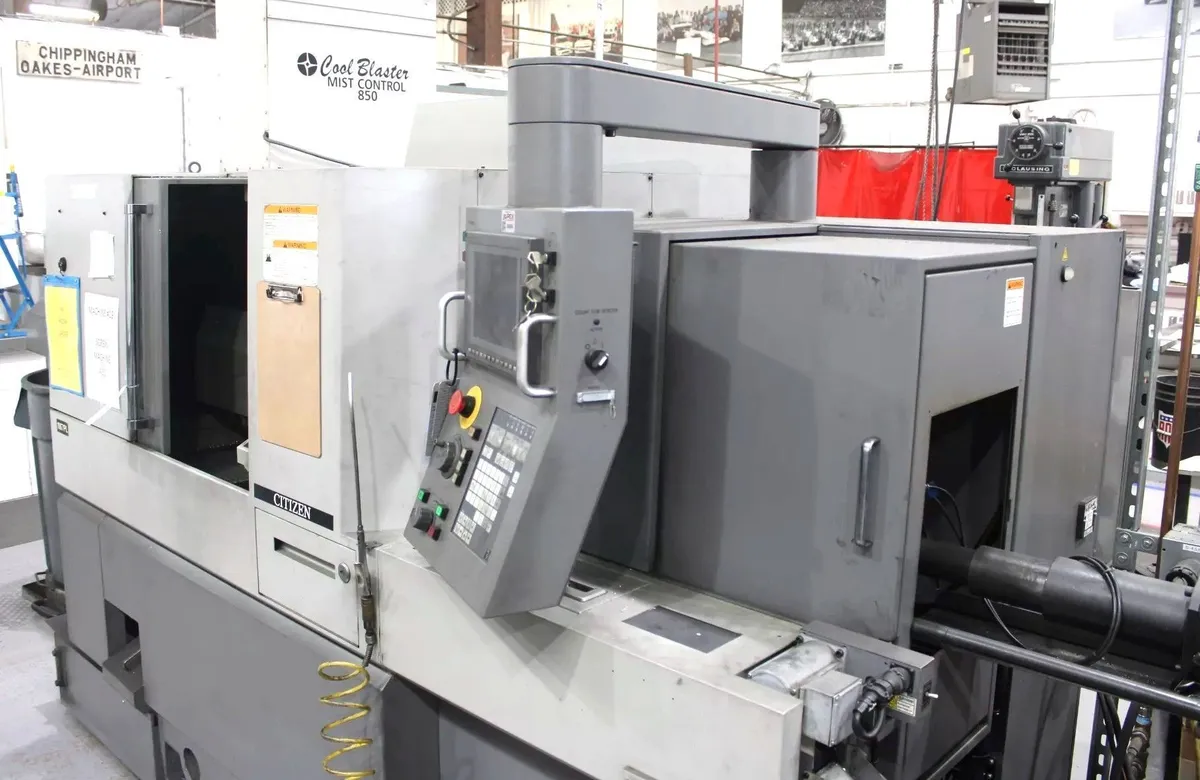

2008 CITIZEN A32 VIIPL CNC Swiss Type Sliding Headstock Automatic Lathe

Capacity
1.25 in
Power
5.0 kw
Rpm
8000.0 rpm
Swiss, chucker or convertible?
Swiss
Main spindle indexing
C-Axis
Sub-spindle indexing
C-Axis
Live back working tools
Yes
Machining diameter
32mm
Machining length
320mm
Main spindle speeds
8000 Max RPM
Back spindle speeds
8000 Max RPM
Rotary tool speeds
5000 Max RPM
Back spindle max chucking diameter
32mm
Turning tools
10 Turning Tool Stations
Rotary (live) tools
4 Live Tool Stations
Front endworking tools
4 Stations
Back endworking tools
9 Total Stations (4 + 5)
Cutting tool shank/sleeve size
24.5mm
Rapid traverse (x/y/z)
(45m/min X2,Y1,Z1,Z2)(32m/min X1)
Main spindle drive
7.5 KW
Back spindle drive
3.7 KW
Rotary tool drive
1 KW
Electrics
220 Volt 3 Phase
Machine dimensions
104" x 53" x 91"
Machine weight
7,716 lbs
Category

Citizen A32 Type VIIPL CNC Swiss Screw Machine with Edge C332 Bar Feed, CoolBlaster HD
Coolant
Manufacturer: Citizen (Marubeni Citizen-Cincom)
Model#: A32 Type VIIPL
Age: 2012
Specification:

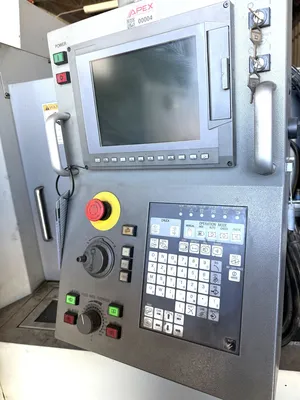

Control Citizen Cincom (Mitsubishi Meldas) CNC Control
Maximum Machining Diameter 32mm
Maximum Machining Length 320mm
Main Spindle Speeds 8000 Max RPM
Back Spindle Speeds 8000 Max RPM
Rotary Tool Speeds 5000 Max RPM
Back Spindle Max Chucking Diameter 32mm
Turning Tools 10 Turning Tool Stations (6 Static, 4 Live)
Rotary (Live) Tools 4 Live Tool Stations
Front Endworking Tools 4 Stations
Back Endworking Tools 9 Total Stations (4 + 5)
Rapid Traverse (X/Y/Z) (45m/min X2,Y1,Z1,Z2) (32m/min X1)
Main Spindle Drive 7.5 KW
Back Spindle Drive 3.7 KW
Rotary Tool Drive 1 KW
Cutting Tool Shank/Sleeve Size 24.5mm
Main Spindle Indexing C-Axis
Sub-Spindle Indexing C-Axis
Equipped With:

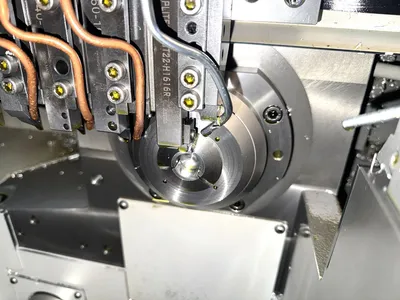

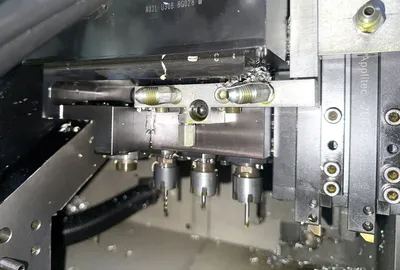

Cincom (Mitsubishi Meldas) CNC Control, C-axis on Main and Sub-Spindles, (4) Live Tool Holders, 4

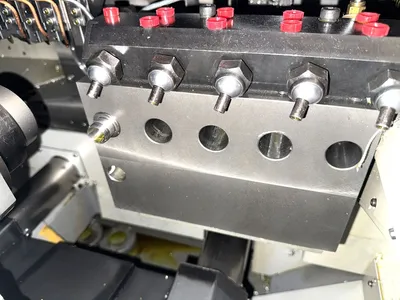

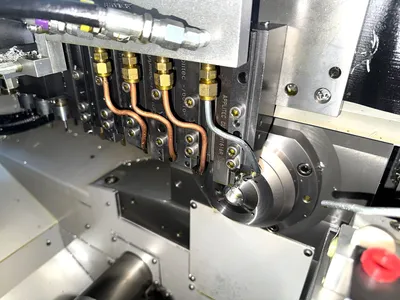

Position Endworking Tool Block on Main-Slide, 5 Position Static Endworking Tool Block, Long Parts

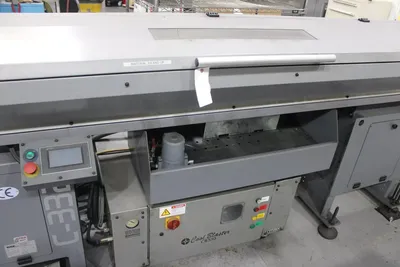

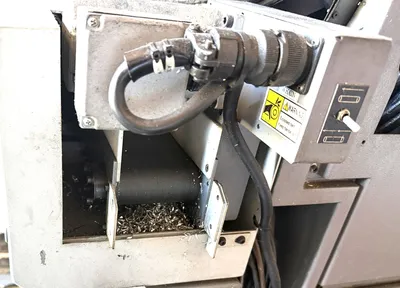

Attachment, MistBuster Mist Collector, Chip Conveyor, CoolBlaster HD High Pressure Coolant

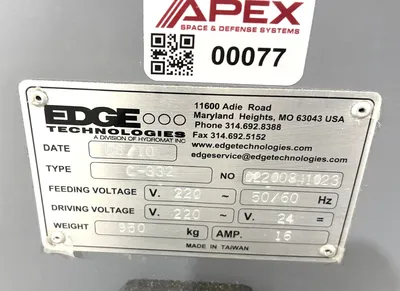

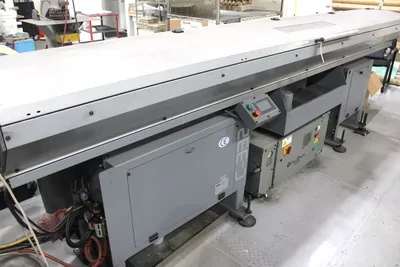

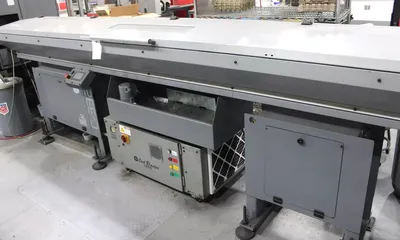

System, Edge C332 Magazine Bar Feed ,
Electrics:
220 Volt 3 Phase
Approximate Machine Dimensions: 104.00"L x 53.00"W x 91.00"H
Approximate Weight: 7700.00 lbs.
