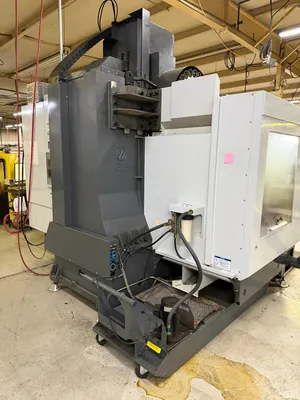

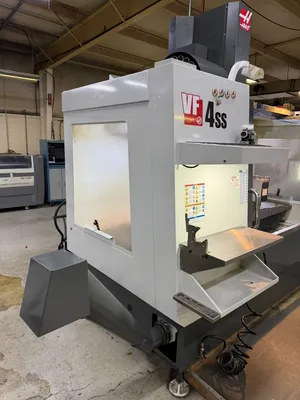

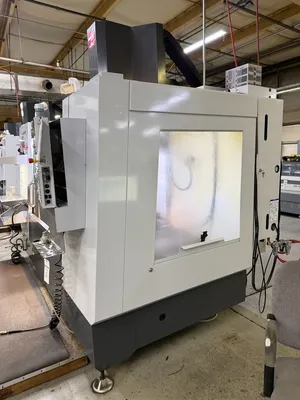

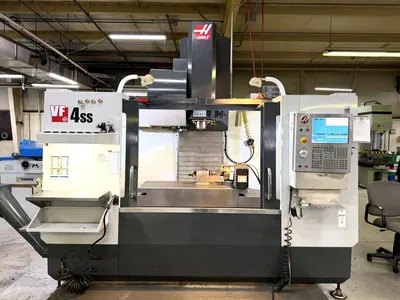

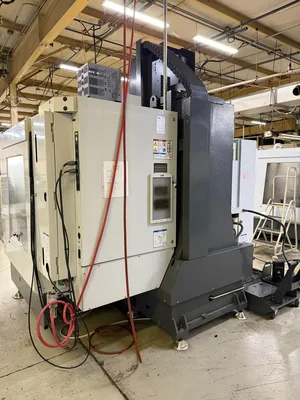

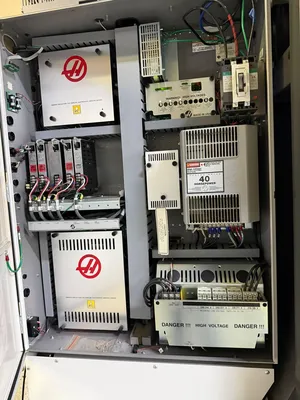

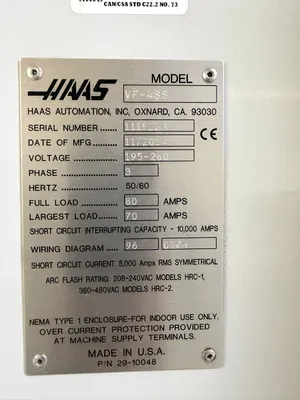

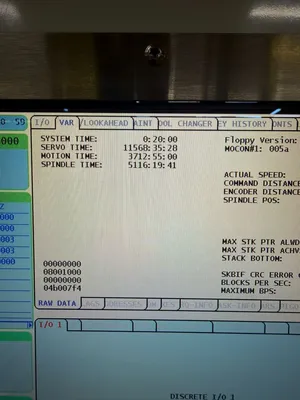

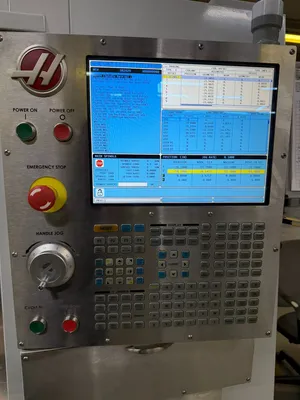

2014 Haas VF-4SS CNC 4-Axis Vertical Machining Center

TRAVELS:
X Axis: 50.00 in
Y Axis: 20.00 in
Z Axis: 25.00 in
Spindle Nose to Table (~ max): 29.2 in
Spindle Nose to Table (~ min): 4.2 in

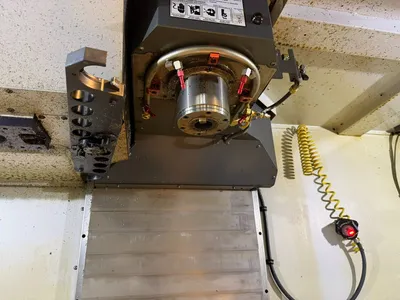

SPINDLE:
Max Rating: 30.0 hp
Max Speed: 15000 rpm
Max Torque: 90.0 ft-lbf @ 2000 rpm
Drive System: Inline Direct-Drive
Taper: CT40

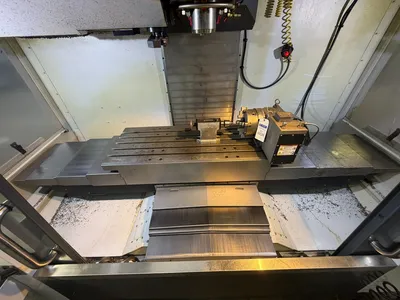

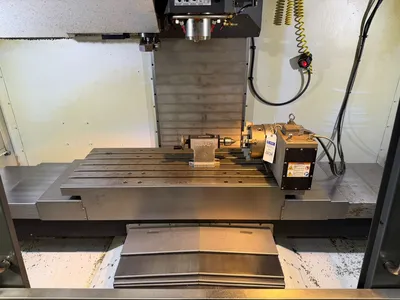

TABLE:
Length: 52.0 in
Width: 19.5 in
T-Slot Center Distance: 3.15 in
Number of Std T-Slots: 5
Max Weight on Table (evenly distributed): 1750lb

FEED RATES:
Max Cutting: 21.2 m/min
Rapids on X: 35.6 m/min
Rapids on Y: 35.6 m/min
Rapids on Z: 35.6 m/min
AXIS MOTORS
Max Thrust X: 3085 lbf 13723 N
Max Thrust Y: 3085 lbf 13723 N
Max Thrust Z: 3925 lbf 17459 N

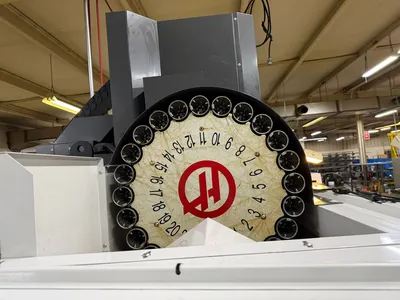

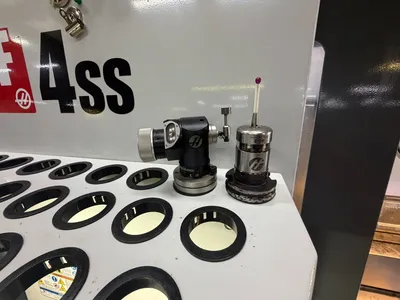

TOOL CHANGER:
Capacity 30+1
Max Tool Diameter (full): 2.5 in
Max Tool Diameter (adjacent empty): 5.0 in
Max Tool Length (from gage line): 13 in
Max Tool Weight: 12.0 lb
Tool-to-Tool (avg): 1.80 s
Chip-to-Chip (avg): 2.40 s

GENERAL:
Coolant Capacity: 55 gal
Air Required: 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose: 3/8 in
Coupler (Air): 3/8 in
Air Pressure Min: 80 psi 5.5 bar
