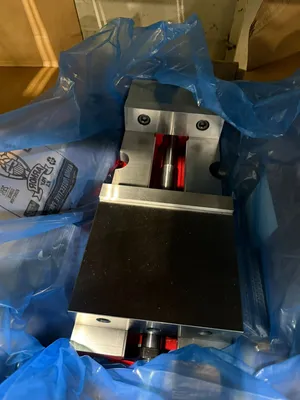

Haas 8" Single-Station Fixed-Jaw Vise, 10-1/2" Opening, Haas Workholding by Kurt
Have one to sell?
1 available
New
Explore the new 8" Single-Station Fixed-Jaw Vise by HAAS, offering a 10-1/2" opening and robust flange design. Precision-crafted in the USA, this tool ensures reliable clamping. Priced at $2499.95, it's a professional's choice for precision workholding.
Technical specifications
System of Measurement
Inch - ANSI
Vise Type
Manual
Vise Holding Type
Fixed Jaw
Number of Stations
1
[BL] Body Length
21.865 in \ 555.37 mm
[BH] Body Height
3.31 in \ 84.07 mm
[H] Height of Screw Hole
1.22 in \ 30.99 mm
[JH] Jaw Height
2.2 in \ 55.88 mm
[JW] Jaw Width
8.0 in \ 200.0 mm
[a] Dimension
0.77 in \ 19.56 mm
[b] Dimension
7.732 in \ 196.39 mm
[OAL] Overall Length
24.016 in \ 610.01 mm
[OAH] Overall Height
5.51 in \ 139.95 mm
[OAW] Overall Width
8.987 in \ 228.27 mm
[J1] Inner Jaw Range
0.0-10.63 in \ 0.0-270.0 mm
[J3] Outer Jaw Range
12.37-22.4 in \ 314.2-570.0 mm
[VO] Vise Opening
10.5 in \ 265.0 mm
[BT] Base Thickness
0.76 in \ 19.3 mm
[S] Screw Spacing
4.75 in \ 120.65 mm
[ZPC] Zero Point Connections
0
[TP] Thread Pitch
5/8"-11
[W] Wrench Size
0.875 in \ 7/8"
Weight
158.0 lbs \ 71.7 kg
Country of Origin
USA
List price $2499.95
