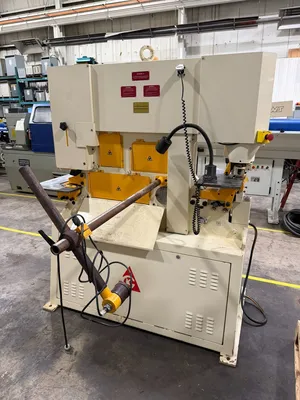

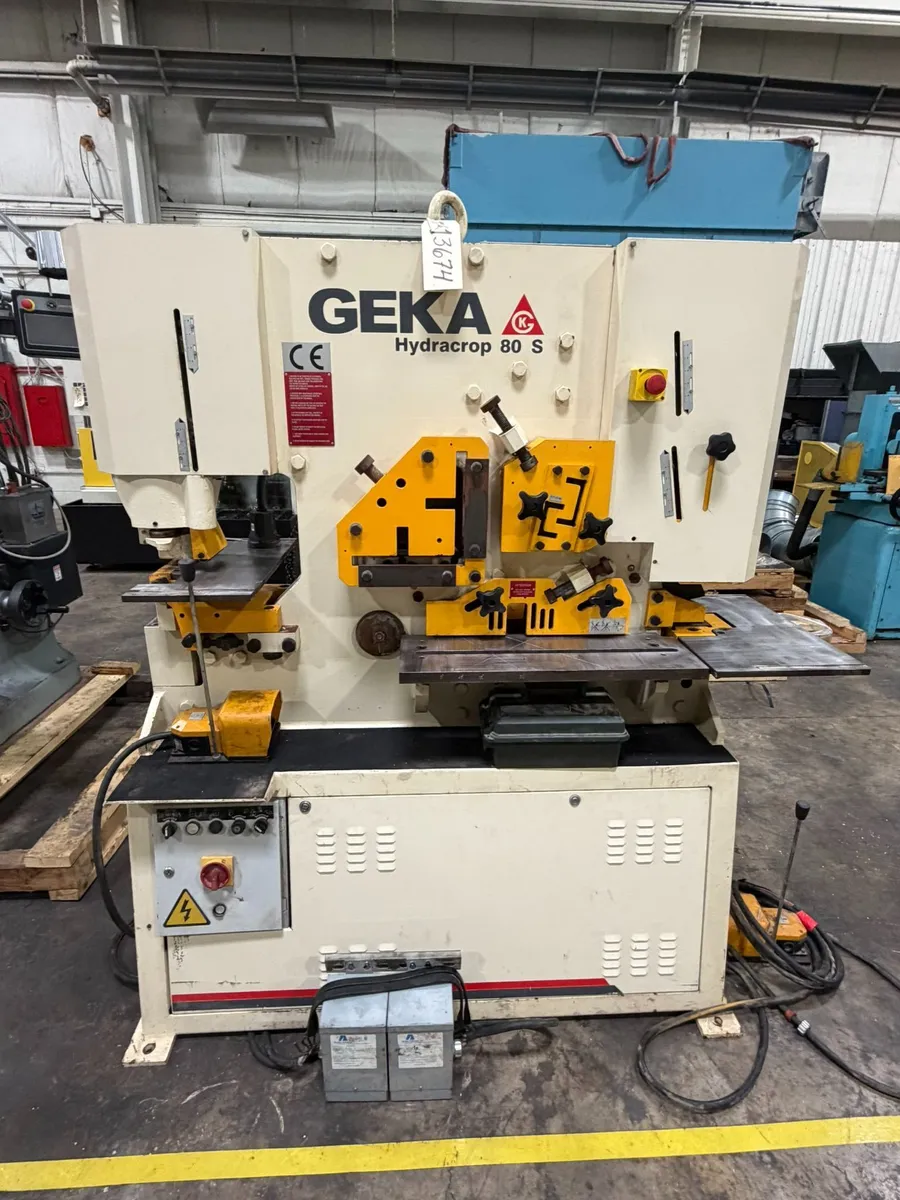

2022 Geka Hydracrop 80S 88-Ton Two-Cylinder Universal Hydraulic Ironworker

Punching Power: 88 US Tons

Throat: 12″

Max. Capacity: Ø 1 1/2″ x 3/8″, 3/4″ x 3/4″

Shearing Power: 155 US Tons

Shearing Capacity:

Flat Bars and Plates: 18″ x 5/8″, 12″ x 3/4″

Angles (No Deformation): 5″ x 5″ x 1/2″

Solid Round and Square Bars (with Optional Blades): Ø 1 3/4″ Round, 1 3/4″ Square

Rectangular Notching: 3 1/2″ x 2″ x 15/32″

Standard Features:

The two-cylinders featured in the Hydracrop Series ironworkers allow for higher production speeds, a higher capacity for materials, and for the possibility of being used by two operators at once. The five workstations featured in this machine may also be equipped with additional optional accessories to suit a range of different tasks

The five workstations in the Geka Hydracrop 80 Universal Ironworker:

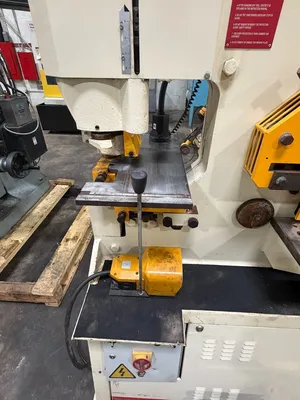

– Punching Station: Since it is fitted with an independent cylinder, this station offers great flexibility by being able to be mounted with many different optional Geka tools and die sets

– Station for Shearing Angles at 90°: Thanks to a Geka-designed patented system of a floating upper blade traveling along a rectilinear line, this station offers distortion-free single-cut shearing

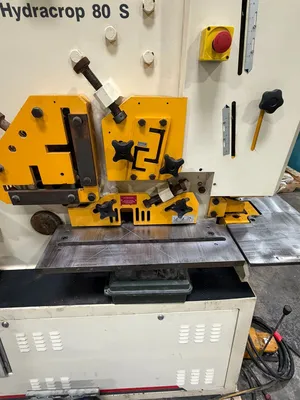

– Notching Station: This station is incredibly versatile. It can be mounted with many different Geka tools and equipment to equip it for a range of tasks including triangular notching at 90°, pipe notching, and radiusing the ends of flat bars, among others

– Station for Shearing Flat Bars and Plates: The superior stability of the monoblock blade-holder included in the station allows it to provide optimum shearing results

– Cutting Station for Round and Square Bars: The station includes standard blades for cutting square and round bars. However, it may also be fitted with optional blades that can cut U profiles, I, T, and other shapes

Mechanical Specifications:

Shipping Weight: approx. 5,125 lbs.
