DAEWOO LYNX 200L CNC Lathe,

Specifications:
Swing Over Bed: .................. 18.11"
Swing Over Saddle: ............... 13.78"
Recommended Machining Daimeter: .. 6.5"
Maximum Machining Diameter: ...... 11.02"
Maximum Work Length: ............. 19.68"
Draw Tube Diameter: .............. 2.59"
X-Axis Travel: ................... 6.3"
Z-Axis Travel: ................... 20.86"
Spindle Chuck Diameter: .......... 8"
Spindle Speed Range: ............. 40 - 4500 RPM
Spindle Nose: .................... A2-6
Spindle Bore Diameter: ........... 2.99"

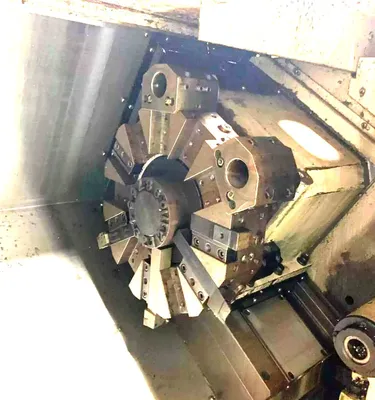

Number of Turret Stations: ....... 12
OD Tool Height ................... 1"
Boring Bar Dia. .................. 1.5"
Tailstock Quill Diameter: ........ 2.56"
Tailstock Quill Travel: .......... 3.15"
Tailstock Quill Taper ............ MT#4
Spindle Drive (Cont/30 Min): ..... 9/11 kW
Approx. Weight ................... 7,000 Lbs.
