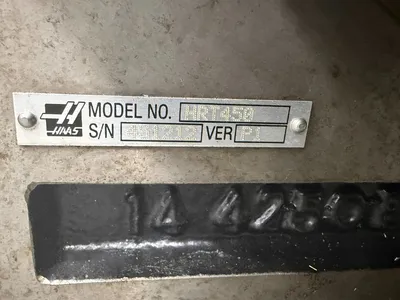

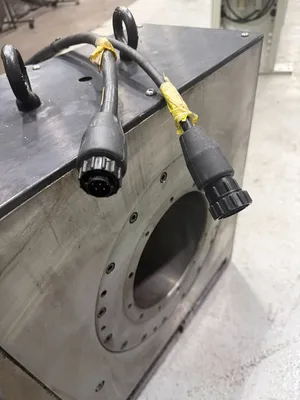

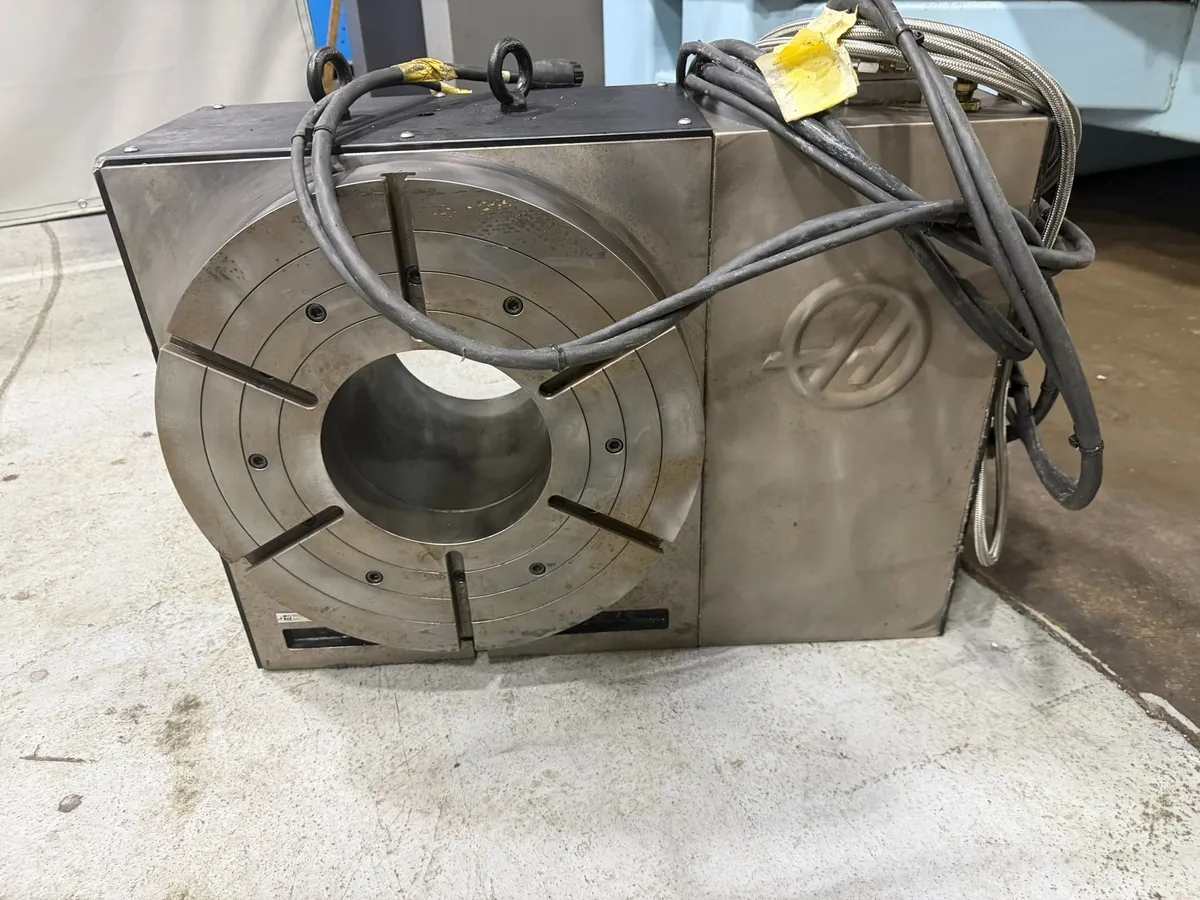

17.7"(450MM) HAAS MODEL HRT450 ROTARY TABLE & 7.5" THRU HOLE

Platter Diameter 17.7"
Number of Std T-Slot 6@ 60 deg.
Spindle
Max. Speed 0.001 to 50 deg/sec
Max. Torque 400 ft-lb
Runout Max 0.0015"
Backlash 30 arc-sec
Center height 11.500 +/-0.001"
Gear ratio 72:1
Timing 3:1
Brake Torque @ 100 Psi/6.9 Bar 1800 ft-lb
Thru Hole 7.5"
Indexing
Max. Rotation/Step 999.999 deg.
Resolution 0.001 deg.
Accuracy +/- 15 Arc-Sec
Repeatability 10 arc-sec
Worm Gear dia. 13.5"
Power requirement 115 +/ 5% Vac @15A
Air Pressure 150 PSI
Operating Temp (Max. ambient) 100 deg.
Duty Cycle Full/Low Speed 50/100%
Brushless control 14.2 lb
Table 850 Lbs.
***New Price Today $37k***
