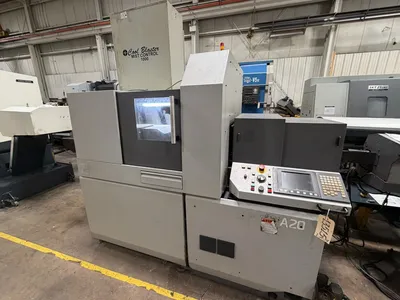

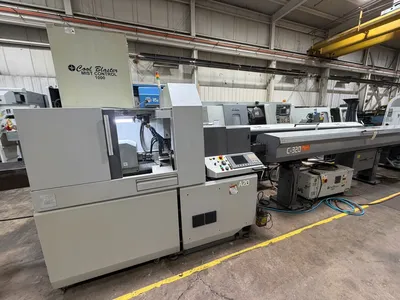

20MM CITIZEN A20 TYPE VIIPL CNC SWISS TYPE AUTOMATIC LATHE, NEW 2015
Have one to sell?
1 available
2015 Citizen A20 Type VIIPL CNC Swiss Lathe available, featuring max machining diam. of 20mm, main spindle speeds up to 8000 RPM, and equipped with Fanuc CNC controls, live cross milling spindles, sub-spindle, and high-pressure coolant system.
Max. Machining Diam. 20mm
Max. Machining Length 165mm/1 chucking
Main Spindle speeds 100-8000 RPM
Main Spindle Indexing Full C-axis (.001 Deg)
Back Spindle Speeds 100-8,000 RPM
Sub-Spindle Indexing Full C-Axis(.001 Deg)
Rotary Tool Speeds 6,000 Max. RPM
Back Spindle Max. Chucking Diam. 20mm
Turning Tools 5 Static on Main Slide
Rotary Live Tools 4 Live on Main Slide
Front Endworking Tools 4 Static
Back Endworking Tools 4 Static
Cutting Tool Shank/Sleeve Size 1/2" Square Shank
1" Diam. Sleeves
Rapid Traverse (X/Y/Z) 32mm/min X2, Y1,Z1
Z2 & 18 m/min on X1
Main Spindle Drive 5 HP/3 HP
Back Spindle Drive 2 HP
Rotary Tool Drive 1 HP

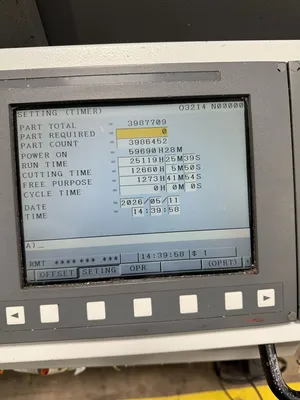

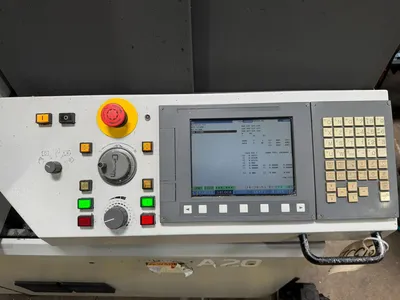

Fanuc CNC Controls

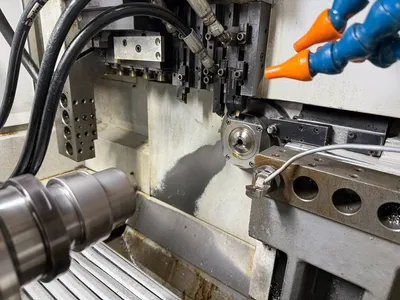

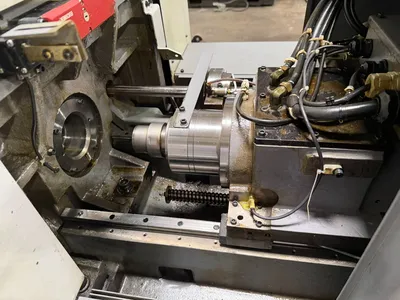

(4) Live Cross Milling Spindles,

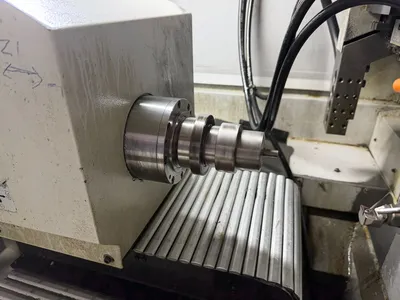

Sub-Spindle
C-Axis on Main & Sub Spindles

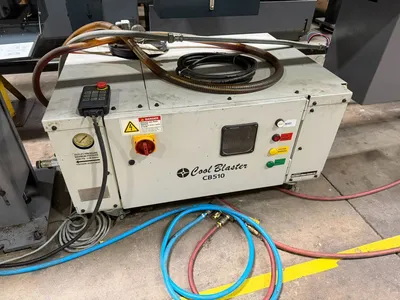

Coolant System with Coolblaster high pressure pump
Parts Catcher
Synchronous Rotary Guide Bushing
Mist collector

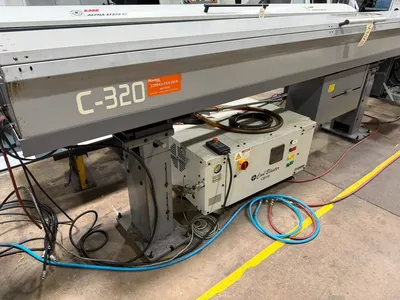

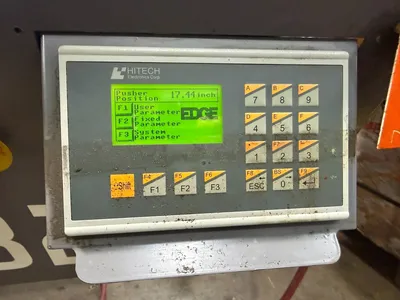

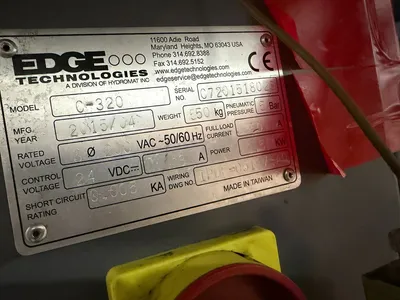

EDGE TECHNOLOGIES C-320 MAGAZINE FEED 12' BAR FEEDER,
