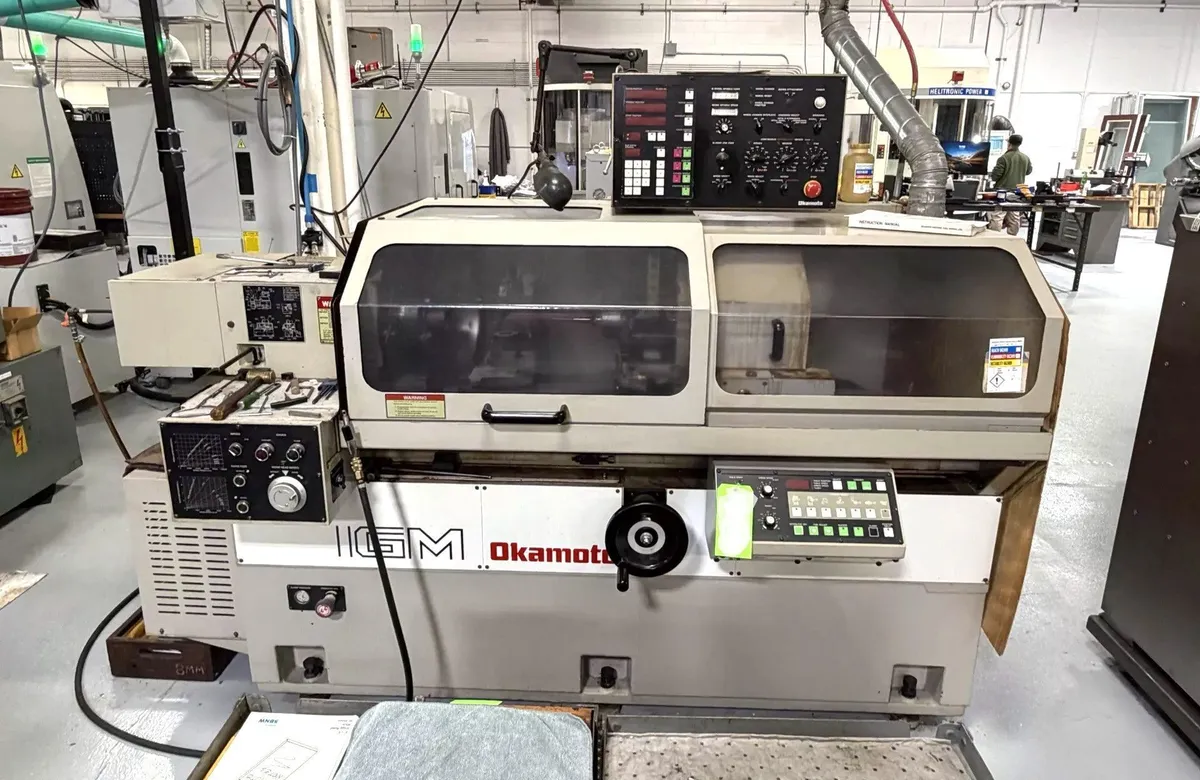

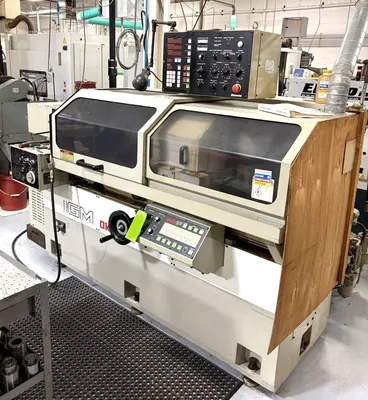

OKAMOTO IGM-2M PROGRAMMABLE INTERNAL GRINDER
Have one to sell?
1 available

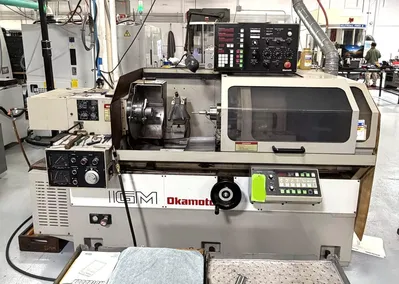

OKAMOTO IGM-2M PROGRAMMABLE INTERNAL GRINDER
ID Grinding capacity .24-8"
Grinding stroke 0.08-8"
Reversals at 0.08" stroke 300/pm
Swing over table 24"
Swing inside splash guard 14"
Workhead swivel -5 to +30 deg.
Wheelhead cross feed travel (X-Axis) 9.4"
Max. longitudinal travel 20"
Rapid feed rate 600 IPM
Table speed 20-600 IPM
Workhead spindle speeds 50-850 RPM
Microfeed increment (minimum) 0.0003"
Wheelhead spindle drive 3 HP AC
Workhead spindle drive 2 HP AC
Approx. machine weight 6,160 LBS
Approx. machine dimensions 92"LR x 78"FB x 6
9"H

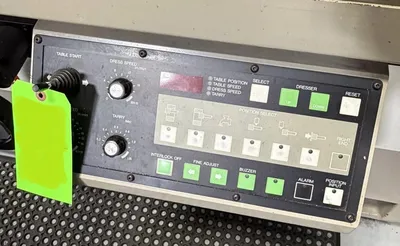

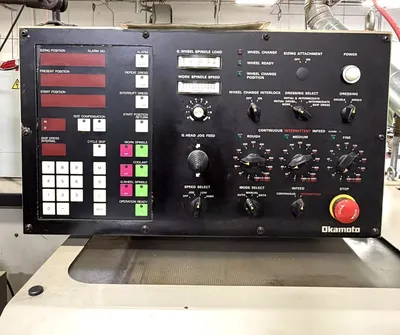

Okamoto MDI Computer Control for Setting of Grinding Parameters and
Digital Display
Automatic grinding cycles
Automatic dresser
Size compensation
Dressing cycles

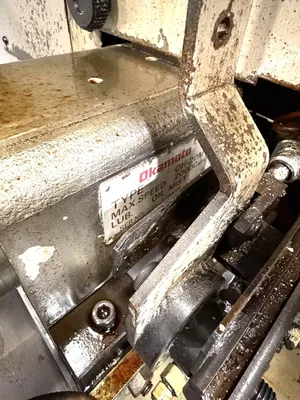

10,000 RPM Okamoto Internal Grinding Spindle
Coolant system
