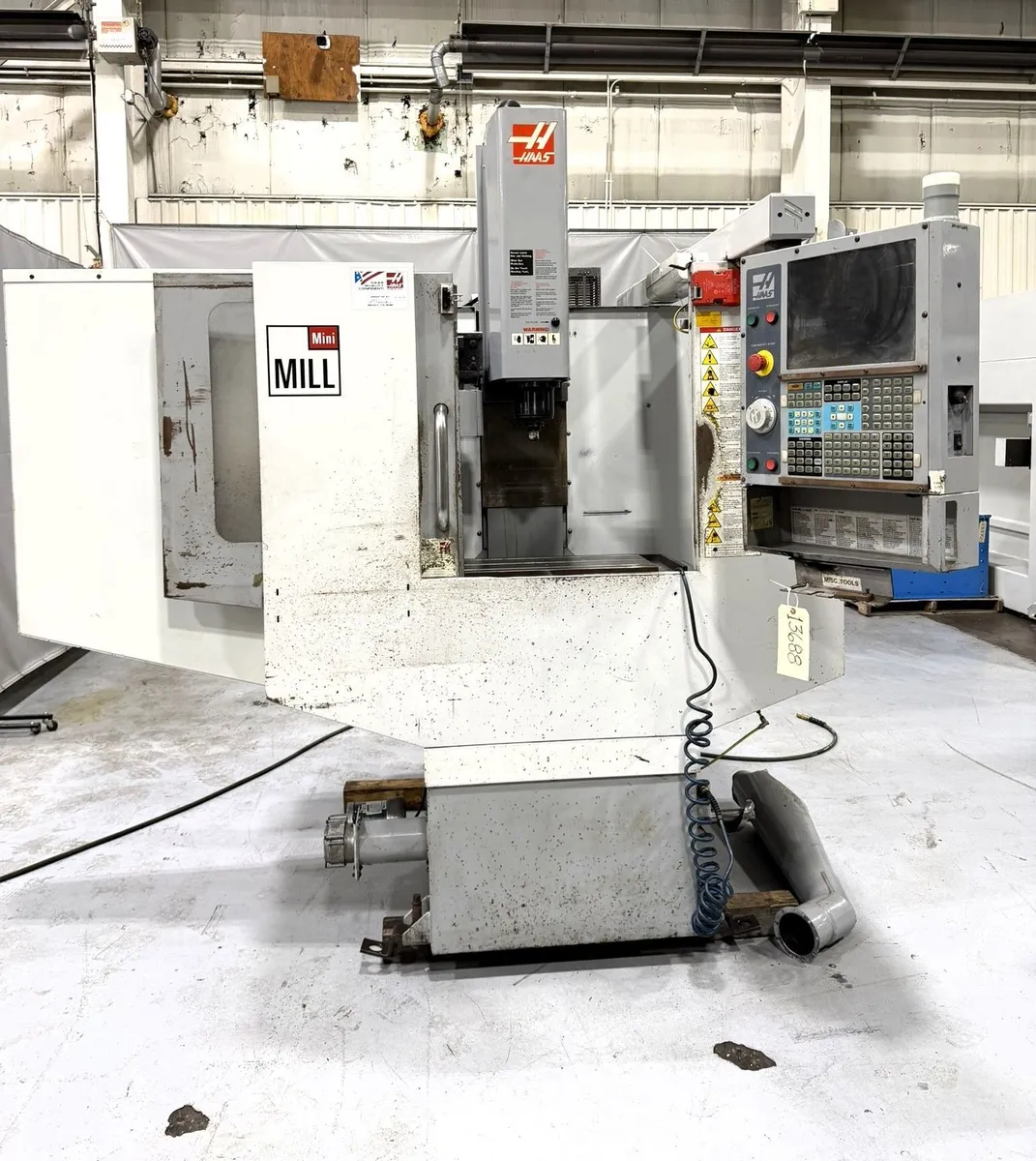

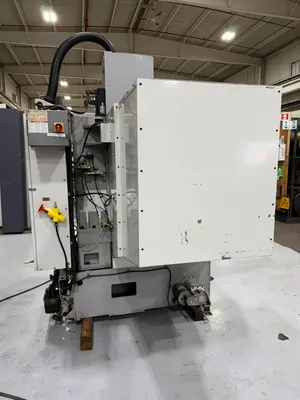

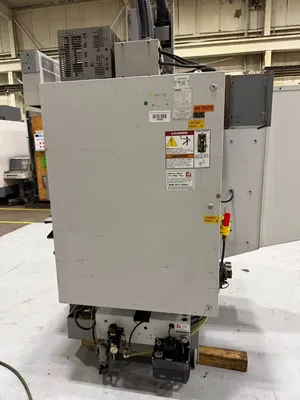

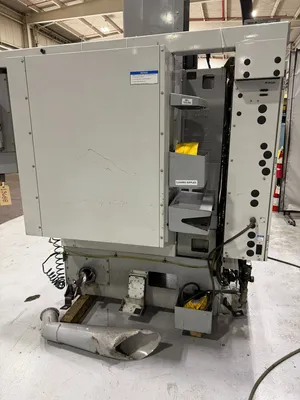

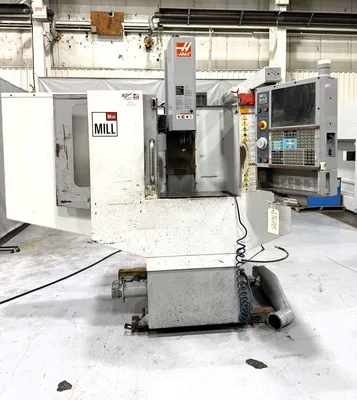

Haas Mini Mill CNC 3-Axis Vertical Machining Center
Have one to sell?
1 available
Haas Mini Mill CNC 3-Axis Vertical Machining Center from 2006. Features Haas 32-Bit CNC Control, 10-Station Carousel Tool Changer, CAT 40 Taper, 6000 RPM spindle, and a chip auger. Dimensions: 70" x 80" x 98", weight: 3400 lbs. Power: 208/240V.
Haas Mini Mill CNC Machining Center
Equipped With:
Haas 32-Bit CNC Control, Cat-40 Spindle Taper, 10-Station Carousel Tool Changer, 3.5" Floppy, Machine Manual

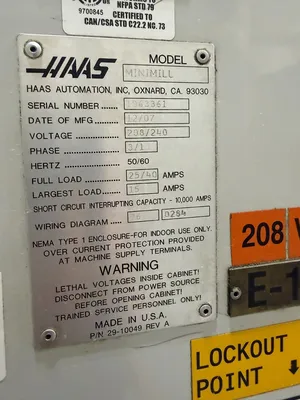

Electrics:
208/240 Volt, 3/1 Phase
Manufacturer: Haas Model: Mini Mill Year: 2006
Main Unit Approx Weight: 3400.00 lbs
Main Unit Dimensions (in inches): Length: 70.00" Width: 80.00" Height: 98.00"
Specs:

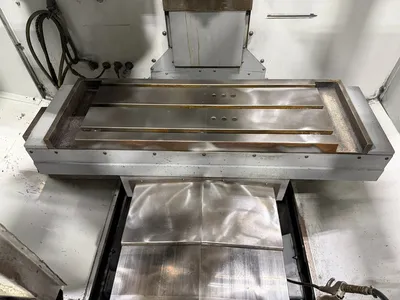

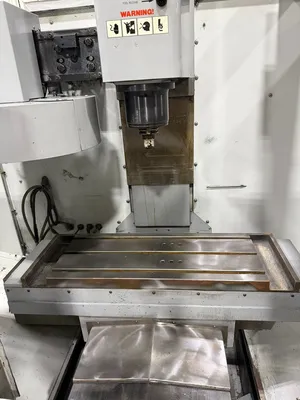

Table Size: 36" x 12"
Machine Control: Haas 32 Bit CNC
Machine Travels (X/Y/Z): 16" x 12" x 10"
Table Capacity: 500 Lbs.

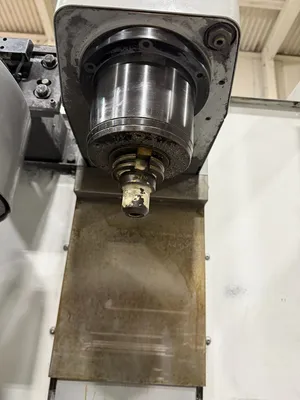

Spindle Taper: Cat 40
Spindle Speeds: 6,000 Max RPM
Rapid Traverse Rate (X/Y/Z): 600 IPM
Spindle To Table Distance: 4" - 14"
Maximum Cutting Feed Rate: 500 IPM
Tool Changer Style: Carousel
Tool Changer Capacity: 10 Stations
Tool Change Time: 4.2 Seconds
Max Tool weight: 12 Lbs.
Spindle Drive: 7.5 HP

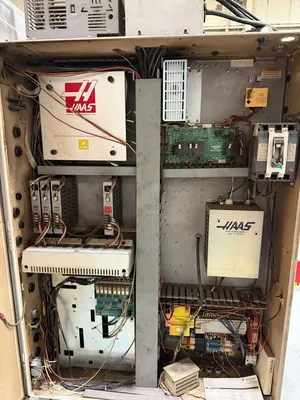

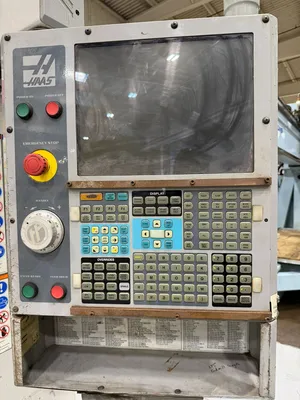

Haas 32-Bit CNC Control
10 Station Tool Changer
6000 rpm 40 taper tool changer
8 spare M codes
coolant system
external high voltage transformer
4" extended Z Axis Riser
chip auger
