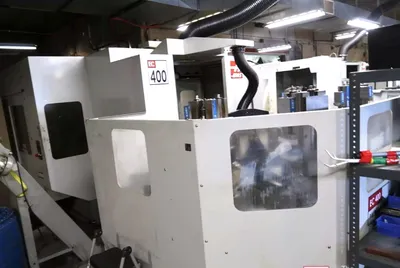

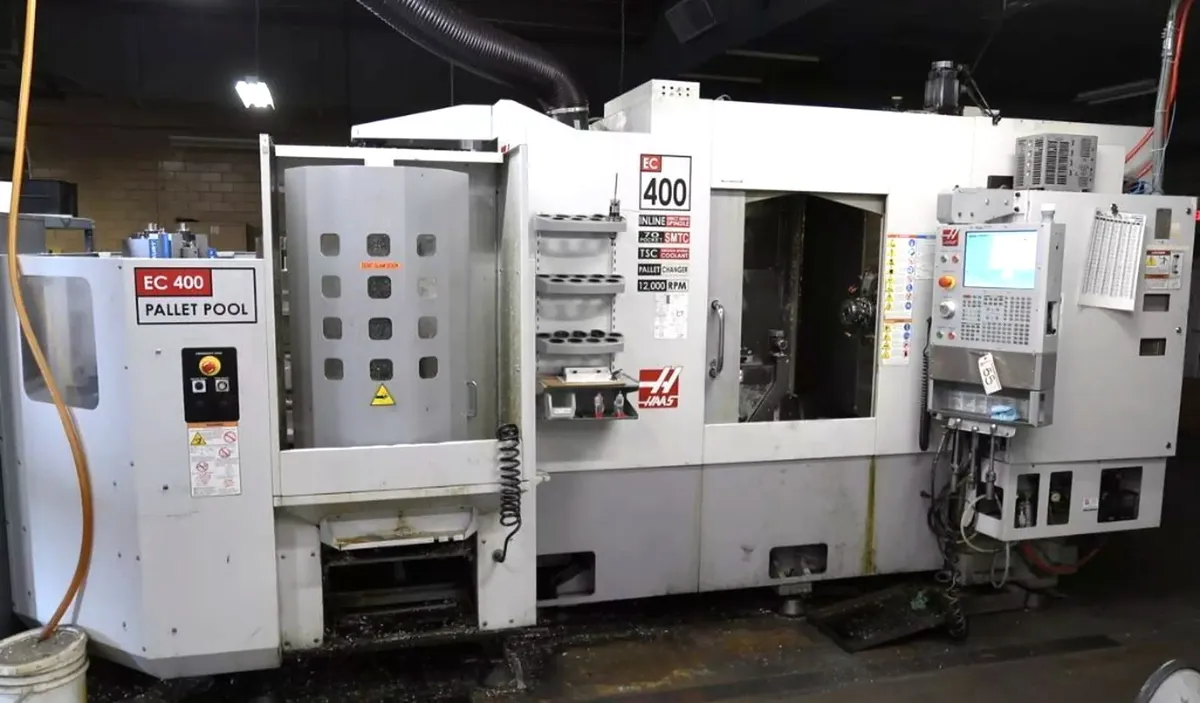

HAAS EC-400PP 4-AXIS CNC HORIZONTAL MACHINING CENTER WITH 6 PALLET POOL

SPECIFICATIONS:
Travels:
– X-Axis…………22″
– Y-Axis…………25″
– Z-Axis…………22″
Rapid Rate:
– X-Axis…………1000 IPM
– Y-Axis…………1000 IPM
– Z-Axis…………1000 IPM
Pallet Size…………15.75″ x 15.75″
Spindle Speed…………12,000 RPM
Spindle Motor…………30 HP
Pallet Load – Maximum…………1000 Lbs.
Spindle Taper…………40 CT
Tool Changer…………70 ATC

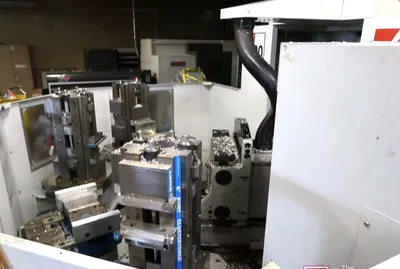

6 Pallet Pool Changer
Pallet Change Time…………8 Sec.
Cutting Feed Rates…………710 IPM
Torque – Maximum…………90 Ft-Lb
Tool Weight – Maximum…………12 Lbs.
Tool Diameter – Maximum…………6″
Tool Length – Maximum…………16″
Tool Changing Time…………2.1 – 3.7 Sec.
Air Requirement…………100 PSI, 4 scfm

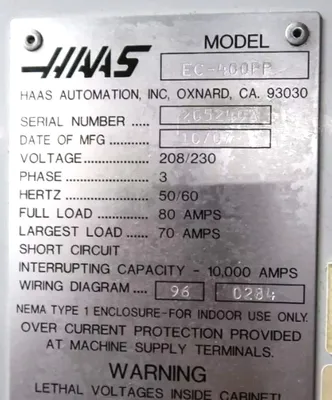

Power…………220v / 66FLA / 3-Phase
Memory…………1 MB, 3.5″ Floppy Drive
Dimensions – Approximate…………176″ x 92″ x 101″
Weight – Approximate………22,000 Lbs.

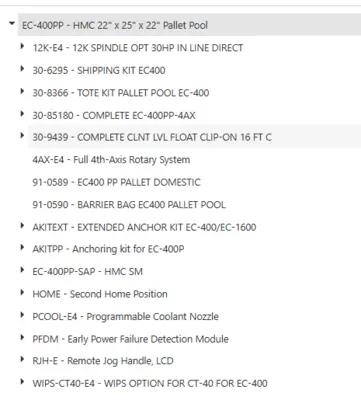

Haas EC 400 PP HMC EQUIPPED WITH:

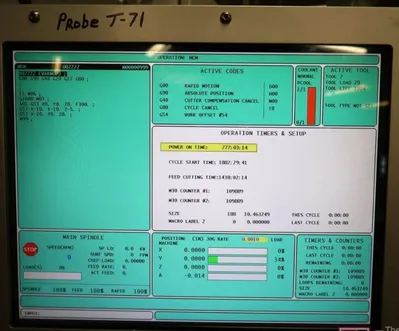

HAAS CNC Control
