TRAVAINI TRO400S 25HP VACUUM PUMP

Travaini TRO 400S Specifications

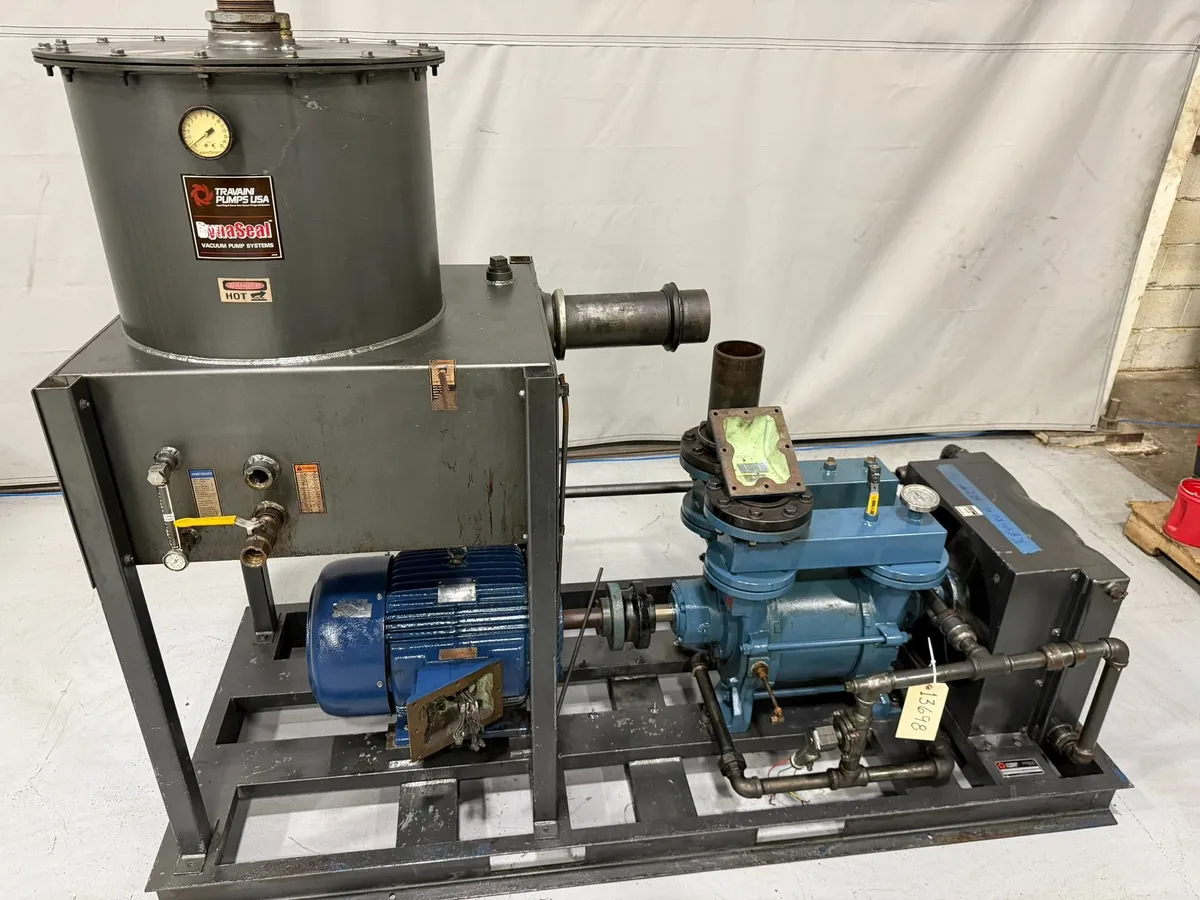

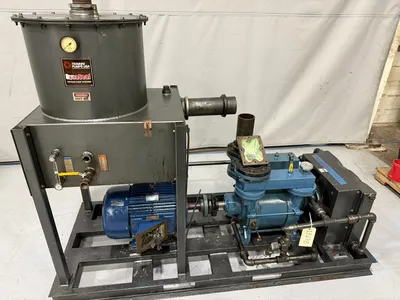

The Travaini TRO 400S is a high-efficiency DynaSeal™ liquid ring vacuum pump designed for heavy-duty industrial vacuum applications. It features a monoblock construction with all components integrated for ease of installation and maintenance.
Key Specifications & Features GlobalSpec+1
• Type: High-efficiency liquid ring vacuum pump (monoblock design)
• Motor: NEMA C-face TEFC, 3-phase, 60 Hz, 230/460 V, Class F insulation, 1.15 service factor
• Sealing Fluid: Complete charge of long-life sealing fluid type TR 1001-22
• Separator Reservoir: With level, temperature, and pressure gauges plus drain valve
• Discharge Separator Element: High-efficiency discharge separator
• Cooling: High-efficiency air-cooled heat exchanger (oversized for ample cooling)
• Seal System: Seal liquid solenoid valve, Y-strainer, and stop valve
• Temperature Protection: High-temperature switch to prevent overheating
• Inlet: Check valve installed on suction flange
• Vacuum Gauge: Liquid-filled, dual-scale
• Base & Piping: All components mounted on fabricated steel base plate; interconnecting piping included; painted Travaini gray as standard
•

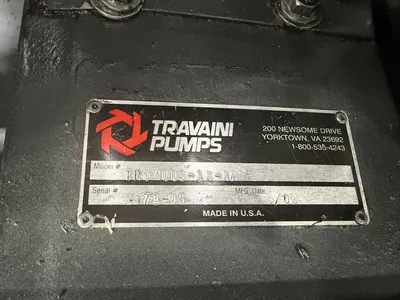

Model: TR0400S-1A (single stage, external sealed bearings, air-cooled)

Nominal Capacity: 400 ACFM @ 20 in. HgV

Max Vacuum: 27 in. HgV

Motor: Baldor 25 HP, 230/460V, 1760 rpm, 3-phase, 60 Hz, direct drive

Weight: ~1,631 lbs / 740 kg
