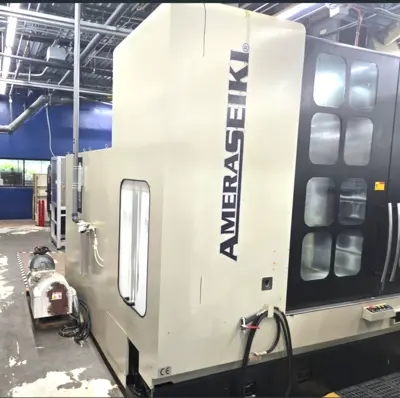

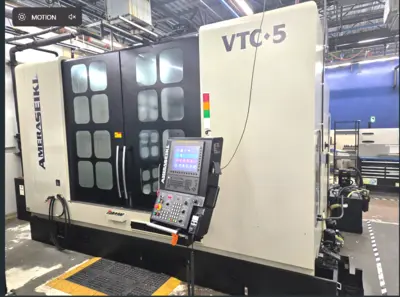

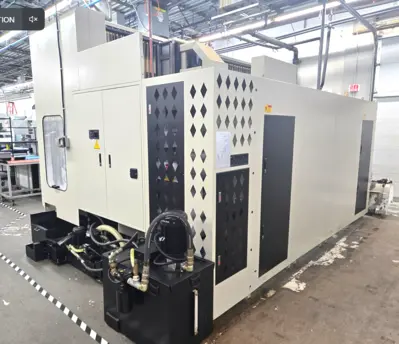

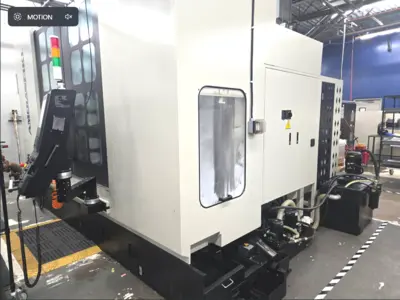

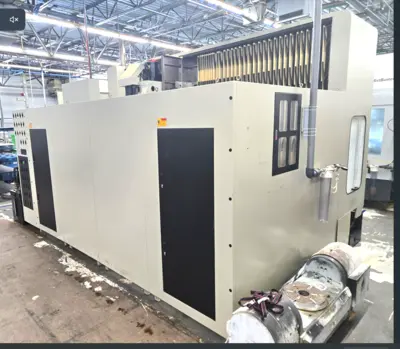

2022 AMERA SEIKI VTC-5 TRAVELING COLUMN CNC VERTICAL MACHINING CENTER, NEW 2022

Vertical Traveling Column Mill (VTC)

Do you need higher efficiency than a traditional Vertical Machining Center can offer? With our VTC, the table is fixed and all XYZ machine movement happens in the column.The larger table allows you to place multiple workpieces at one time, reducing your load/unload time.With a partition, you can even load one side of the table while the machine is working on the opposite side.

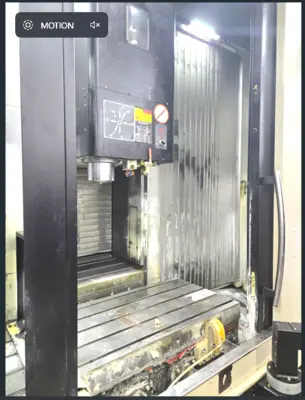

The fixed table also allows you to work on extremely long, heavy pieces that can’t be attached safely to the moving table on a traditional bridge mill or machining center. We offer our VTC in two sizes to best meet your machining requirements. See the specifications page to find out if Amera-Seiki’s Vertical Traveling Column mill is the best machine for your job!
Specifications
Model Unit VTC-5
Travel X-Axis mm 2200
Y-Axis mm 620
Z-Axis mm 620
Spindle Nose to Table Surface mm 120 – 740
Spindle Center to Column Surface mm 690
Table Dimension mm 2500×600
T-Slots: Width/Number/Pitch mm 18 / 5 / 125
Table Height From Floor mm 830
Max. Table Load kg 1800
Headstock Spindle Type BT 40, CAT 40
Spindle Speed RPM 8000 (opt. 10,000)
Feedrate Rapid Feed for X/Y/Z Axis mm/min 32,000
Cutting Feed for X/Y/Z Axis mm/min 1 – 10,000
Power Spindle Motor, Contin./30 Min. kw 11/15
AC Servo Motor, X/Y/Z kw 35./2.0/2.0
Coolant System W 580
Lubrication System W 25
Spindle Chiller System W 850 (spindle over 8000 RPM)

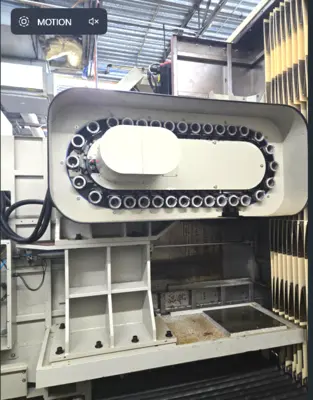

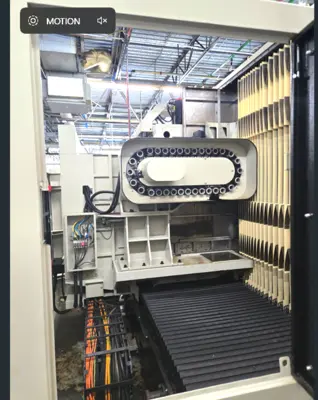

ATC Tool Capacity, Arm Type Magazine pcs 24/32/40
Max. Tool Diameter mm 70 (Adjascent space empty: 127)
Max. Tool Length mm 300
Max. Tool Weight kg 7
Accuracy Positioning mm 0.005 ±0.0002
Repeatability mm 0.005 ±0.0002
General Information Machine Weight kg 14,200
Machine Dimensions mm 4068x5810x3000
Source Air Pressure kg/cm² 5 5

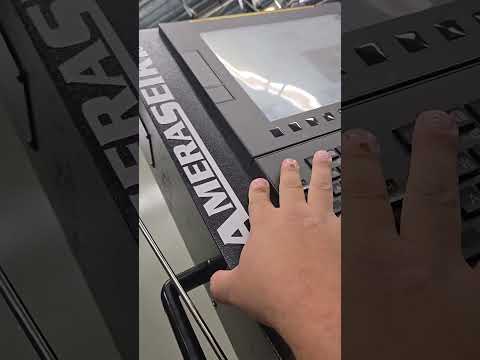

Controller Fanuc Oi-MB
Standard Equipment Full Enclosure Guard Standard on all models
Rigid Tapping
Remote Handwheel
Halogen Work Light
Beacon Light
Auto. Power Off
Auto Lube System
Spindle Air Purge System
Spindle Air Blow System
Coolant System
Heat Exchanger for Electrical Box
Optional Accessories
Controller: Fanuc 18i MB, 21i MB, Heidenhein Available on all models
10,000/12,000 RPM Spindle w/ Chiller
Coolant Through Spindle (CTTS)
ZF-2 Gear Head with Oil Chiller
Chip Flushing System
Chain Type Chip Conveyor
4th Axis Interface
