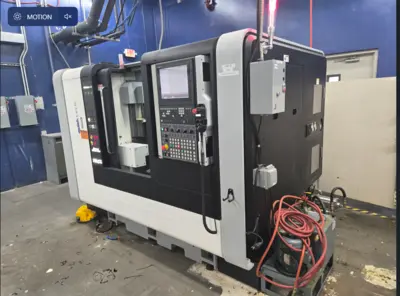

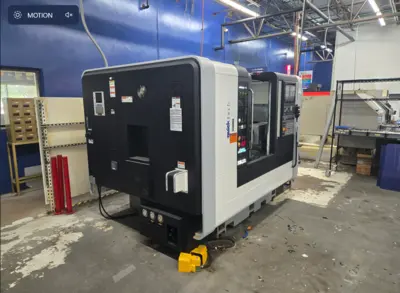

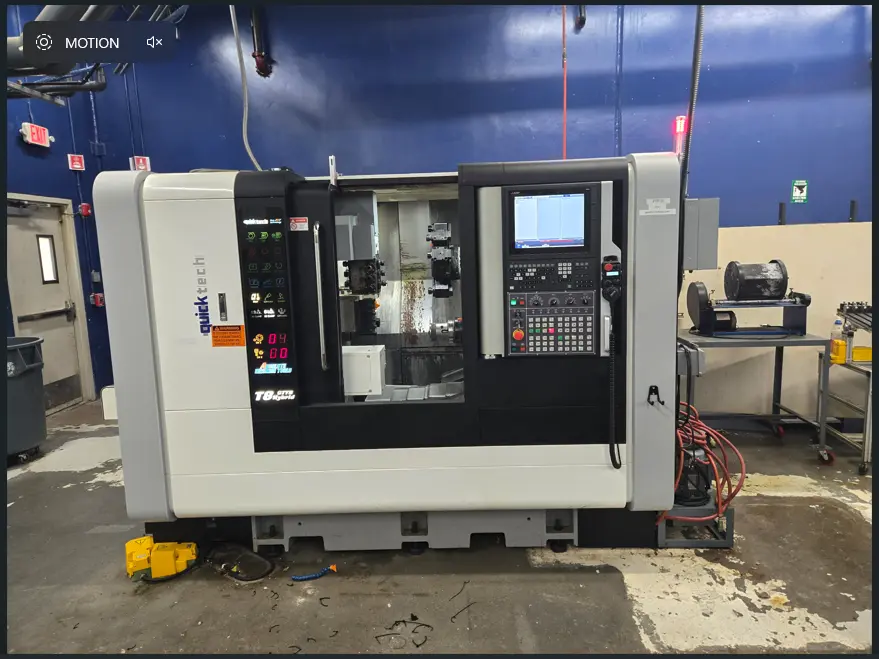

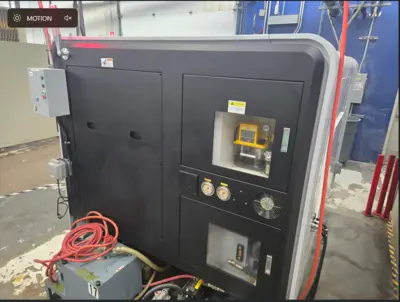

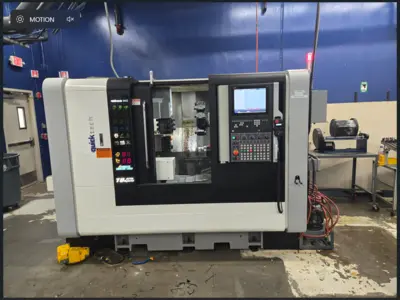

2022 Quicktech T8 9-Axis Hybrid CNC Lathe
Have one to sell?
1 available
$169,500.00 USD
QUICKTECH T8 Hybrid CNC Lathe, 2022 model, features 9-axis with twin-spindle, 4000 RPM spindle speeds, and max turning diameter of 11.8". Equipped with collet chucks, live toolholders, and Fanuc CNC control for precise machining.
Machine Type 9-Axis Twin-Spindle CNC Mill/Turn Center
CNC Control Fanuc 0i-TF (typical North American configuration)
Main Spindle Motor 15 HP (11 kW)
Main Spindle Speed 4,000 RPM
Main Chuck 8" 3-jaw or 60 mm collet
Main Bar Capacity 65 mm (2.56") with chuck / 60 mm with collet
Main Spindle Nose A2-6
Sub-Spindle Motor 7.5 HP
Sub-Spindle Speed 4,000 RPM
Sub-Spindle Nose A2-5
Sub-Spindle Bar Capacity 32 mm (1.26")
Maximum Turning Diameter 11.8" (300 mm)
Maximum Turning Length 13.8" (350 mm)
Distance Between Centers 20" (508 mm)
Swing Over Bed 19.7" (500 mm)
9 Axis (X1, Y1, Z1, C1, X2, Y2, C2, B-Axis
Collet Chucks
3) Live Toolholders and a Full Compliment of Static Holders
Twin Spindle

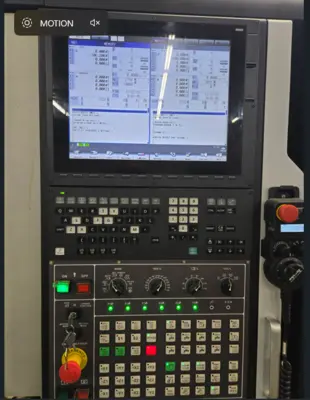

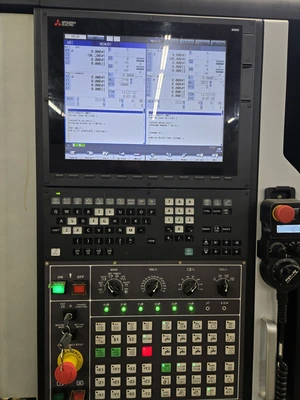

Mitsubishi CNC Control
Standard Features

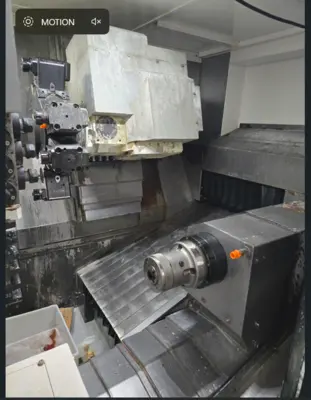

Twin opposed spindles
Simultaneous machining (Flexible Duo System)
True Y-axis machining
Full 360° programmable B-axis
C-axis interpolation on both spindles
Rigid tapping
Automatic lubrication
Bar feeder interface
