2022 MIYANO GN3200W TWIN SPINDLE CNC LATHE WITH GANTRY LOADER

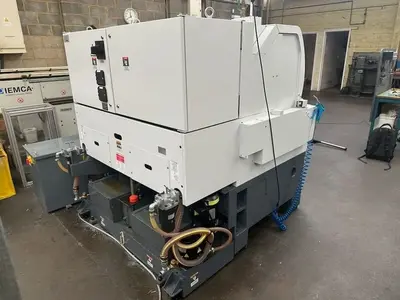

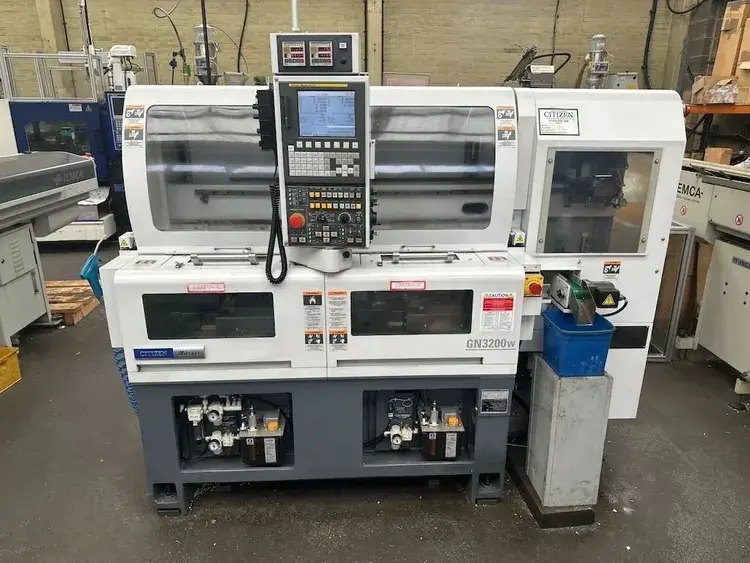

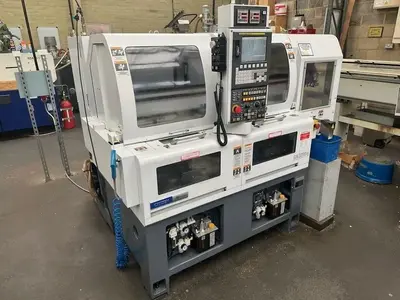

2022 Citizen Miyano GN-3200W-2F2 twin-spindle CNC turning centre fitted with Fanuc Series 0i-TF control, twin horizontal linear turrets and integrated gantry loader. Designed for high-efficiency production of small turned components, the machine offers twin-spindle machining, automated loading and unloading, 8,000 rpm spindle speed and a compact production footprint.
With only 4,866 recorded hours, this is a modern, low-hour turning centre suited to repeatable batch production where speed, consistency and automation are key requirements.
Specifications
Machining Length 1.9685"
Chuck Size 1.7717"
Bar Capacity 0.6693"
Max RPM 8,000 RPM

Control CNC (Fanuc Series 0i-TF control)
Dimensions 85.4331 x 64.9606
Weight 2,700 kg
Specifications
Make Citizen Miyano
Model GN-3200W-2F2
Year 2022

Type Twin-spindle CNC turning centre

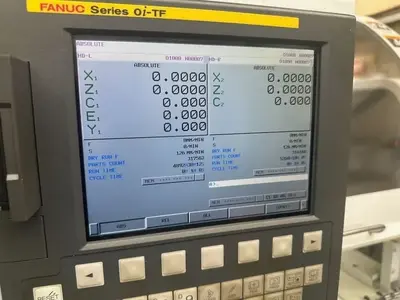

Control Fanuc Series 0i-TF

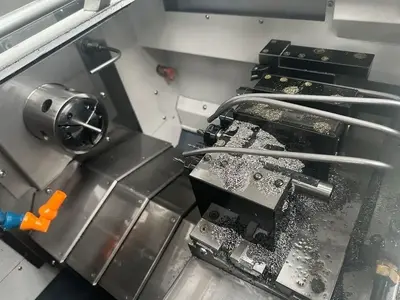

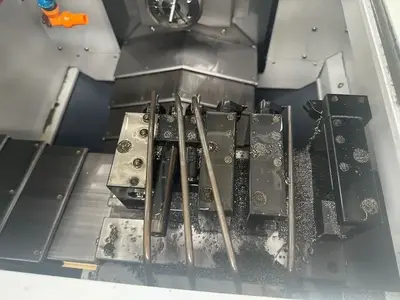

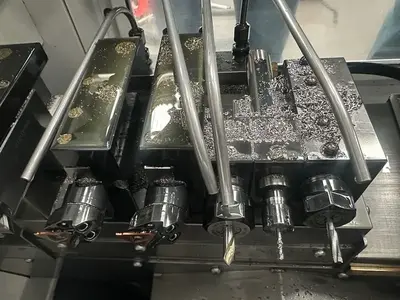

Configuration Twin horizontal linear turrets

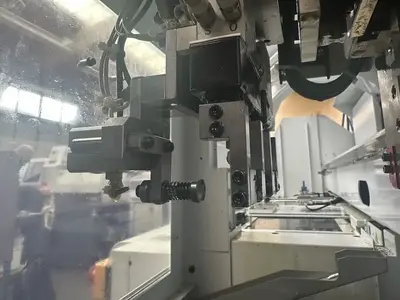

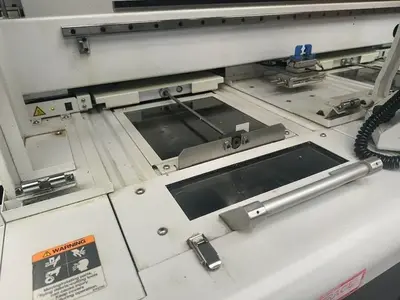

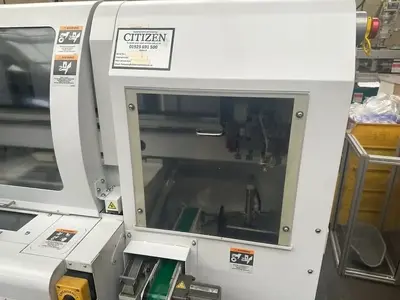

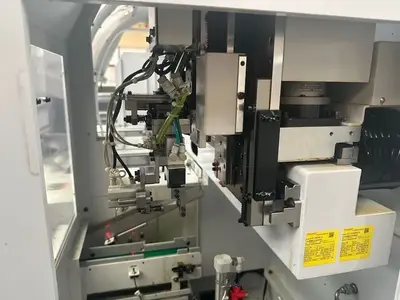

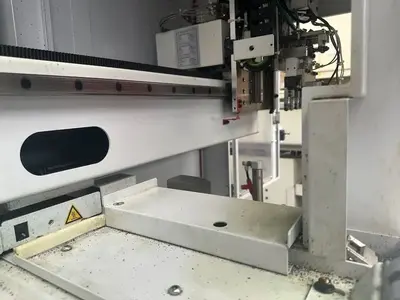

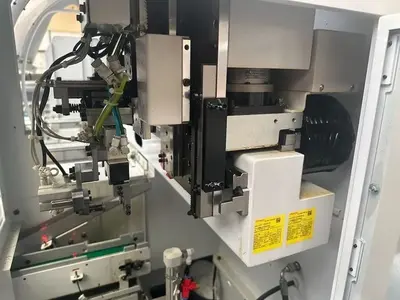

Loader Gantry loader
Spindle speed Up to 8,000 rpm
Maximum chuck capacity Up to 45 mm, depending on chuck type
Maximum machining length 50 mm
Maximum work length with loader 40 mm
Spindle through-hole diameter 17 mm
X-axis travel 180 mm
Z-axis travel 200 mm
Tool stations 10

Recorded hours 4,866 hours
Machine dimensions Approx. 217 cm wide x 165 cm deep x 176 cm high
Transformer dimensions Approx. 66 cm x 52 cm
