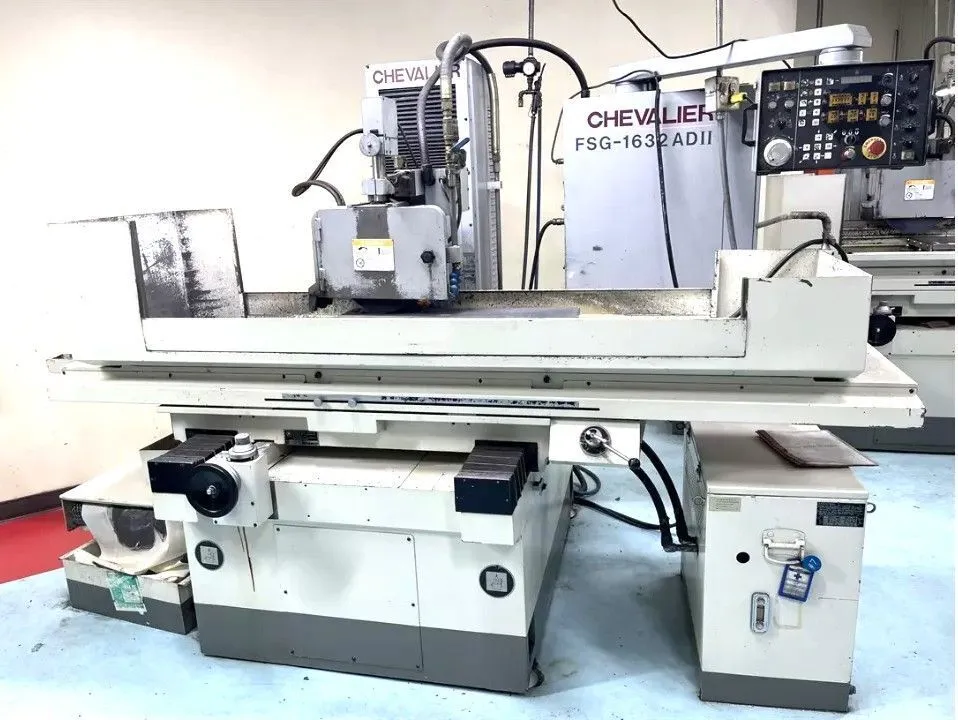

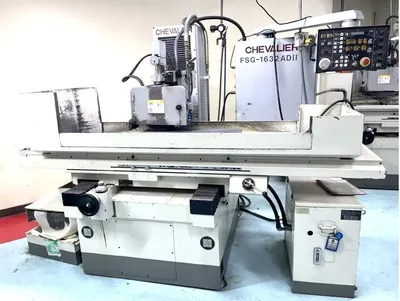

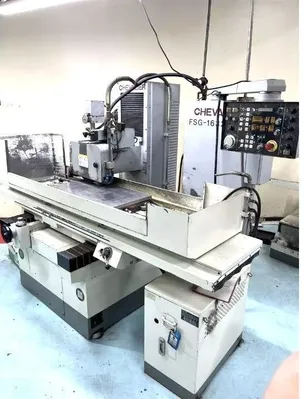

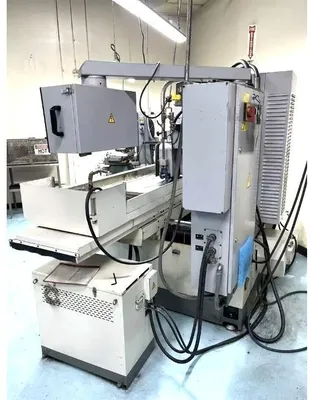

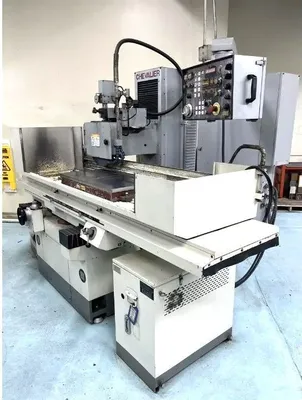

CHEVALIER FSG-1632ADII Automatic Horizontal Surface Grinder, New 2008

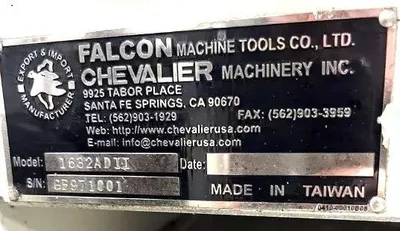

MODEL ................................. FSG-1632ADII
GRINDING CAPACITY ..................... 16" X 32"
SPINDLE TO TABLE (MAXIMUM) ............ 24"
LONGITUDINAL TABLE TRAVEL ............. 35-3/8"
CROSS TABLE TRAVEL .................... 18"
TABLE SPEED (VARIABLE) ................ 5 TO 25 FPM
SPINDLE SPEED ......................... 3450 RPM
GRINDING WHEEL SIZE ................... 14" X 2" X 5"

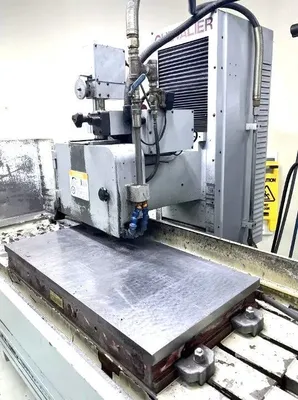

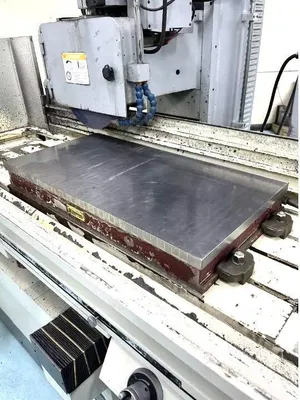

ELECTRO-MAGNETIC CHUCK SIZE ........... 32-3/8" X 15-3/4"
INCREMENTAL DOWNFEED .................. 0.00005" TO 0.002"
AUTOMATIC CROSSFEED ................... 0.005 IPR
POWER ELEVATION ....................... 12 FPM

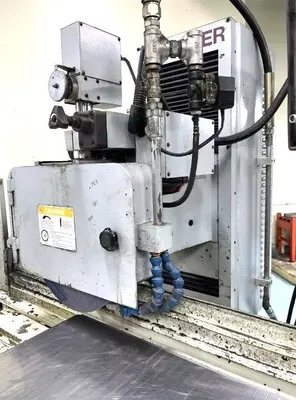

COOLANT W/PAPER FILTRATION ............ YES
OVER THE WHEEL DRESSER ................ YES

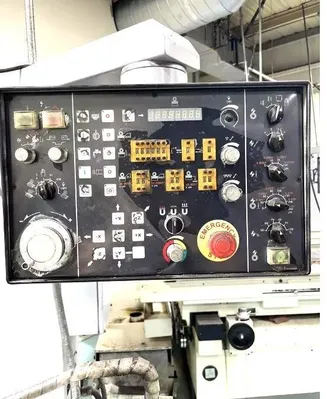

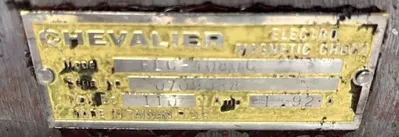

ELECTRO-MAGNETIC CHUCK W/CONTROLS ..... YES
SPINDLE MOTOR ......................... 5 HORSEPOWER
HYDRAULIC MOTOR ....................... 2 HORSEPOWER
