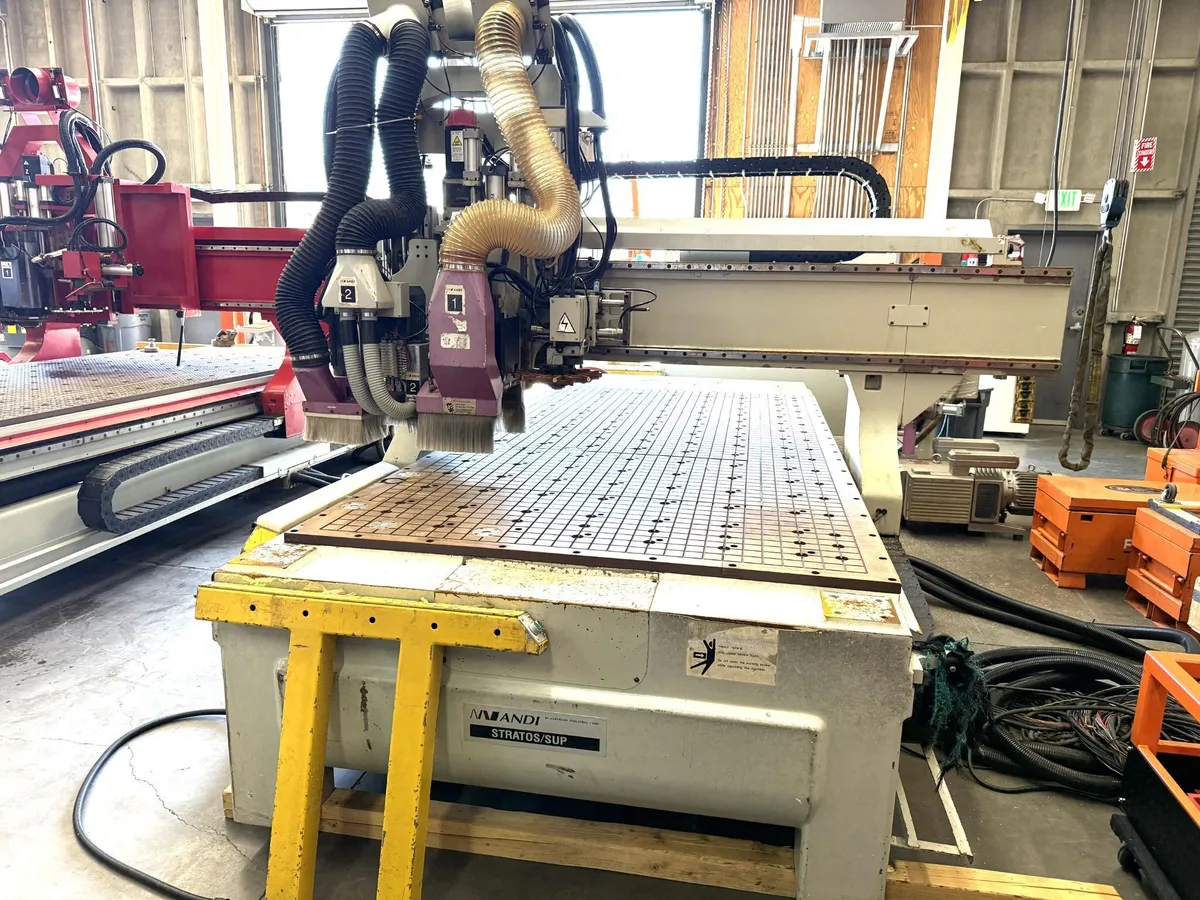

2001 ANDI STRATOS SUP 5' x 10' CNC Router

Working Area (X×Y×Z)
60" × 120" (5×10 ft) standard; 60" × 144" (5×12 ft) extended
Spindle Power
12–18 HP (9–13.4 kW)
Max Spindle Speed
24,000 RPM
Feed Rate
Up to 1,800 IPM (45,720 mm/min) rapid
Positioning Accuracy
±0.005" (±0.127 mm)
Repeatability
±0.003" (±0.076 mm)
02
Overview
The Anderson Stratos Series is a high-production CNC router platform engineered for demanding cabinet, furniture, and nested-based manufacturing environments. Produced by Anderson America Corp., a subsidiary of Biesse Group, the Stratos Series is designed to maximize throughput on panel-based production — delivering fast load/unload cycles, high feed rates, and reliable vacuum workholding for sheet goods including MDF, particleboard, plywood, solid wood, aluminum composite, and plastics.

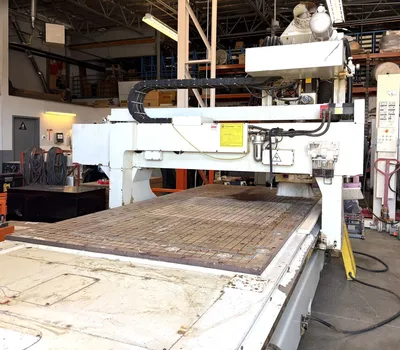

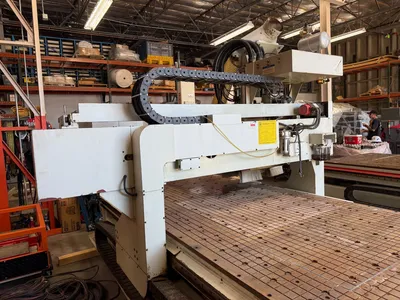

The Stratos features a solid welded steel frame with a moving gantry architecture, providing the structural rigidity necessary for aggressive cutting parameters on dense engineered wood products. The standard 5×10 ft and 5×12 ft table configurations cover the full range of North American sheet sizes, with extended-table versions available for door and panel manufacturers working with oversized sheets. Zone-based vacuum pods and a full-table aggregate foam gasket system provide flexible workholding for mixed production runs with varying part sizes.

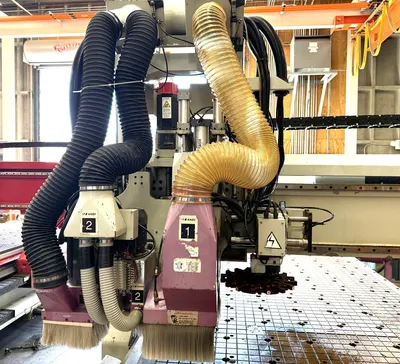

At the heart of the Stratos is a high-frequency electrospindle delivering 12 to 18 HP, with speeds up to 24,000 RPM for clean, vibration-free cuts in soft and hard materials. An automatic tool changer with 8 to 12 positions handles common production routing, drilling, and grooving tools without operator intervention. An optional multi-spindle drilling head delivers rapid line-boring and shelf-pin drilling for cabinet carcass production, dramatically reducing cycle time compared to single-spindle sequential drilling.
Anderson integrates the Stratos with Biesse's CNC Suite software ecosystem, including Maestro CAM software for seamless programming from design to cut file. The machine's Syntec-based or Biesse-proprietary control offers job scheduling, barcode label reading for automatic program loading, and network file management for integrated factory floor workflows. The Stratos Series is particularly popular in custom cabinet shops, large kitchen and bath manufacturers, and architectural millwork producers across North America.
03
Full Specifications
Parameter Value
Working Area (X×Y×Z) 60" × 120" (5×10 ft) standard; 60" × 144" (5×12 ft) extended
Spindle Power 12–18 HP (9–13.4 kW)
Max Spindle Speed 24,000 RPM
Feed Rate Up to 1,800 IPM (45,720 mm/min) rapid
Positioning Accuracy ±0.005" (±0.127 mm)
Repeatability ±0.003" (±0.076 mm)
Control System Biesse / Syntec-based; Maestro software compatible
Table Type Zone vacuum pods with T-slot spoilboard
ATC 8–12 position (disc or carousel)
Drilling Unit Optional multi-spindle line boring head
Drive System Servo motors, rack and pinion (X, Y); ballscrew (Z)
Machine Weight Approx. 3,500–5,000 lbs (1,587–2,268 kg)
Basic Configuration Stratos SUP/NEST
No Of Vacuum Zones 1 or 2
Table Size X 3100 mm (124 in)
Table Size Y 1600 mm (63 in)
Stroke Of X Axis 3400 mm (134 in)
Stroke Of Y Axis 2180 mm (86 in)
Stroke Of Z Axis 250 mm (10 in)
Rapid Travel Speed In X 50 M/min (1968"/min)
Rapid Travel Speed In Y 50 M/min (1968"/min)
Rapid Travel Speed In Z 20 M/min (787"/min)
Maximum Rapid Traverse 70 M/min (2755"/min)
Power 12 HP / 18 HP
Max Speed 24000

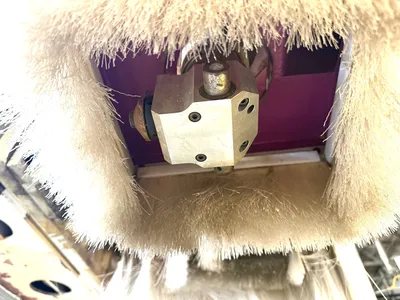

Clamping System HSK 63
Ride Along Tool Changer 8 / 10 / 12
Boring Block 5+5

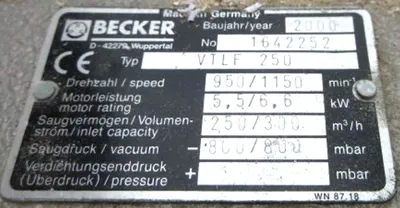

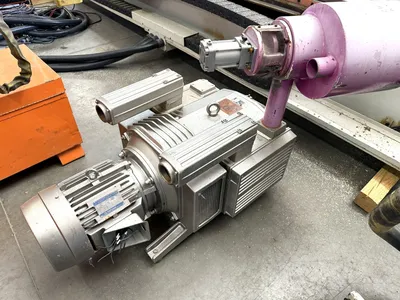

Vacuum Pump 10 HP

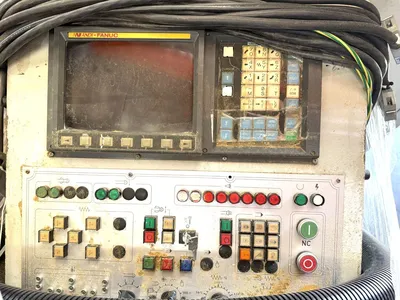

Cnc Control FANUC
