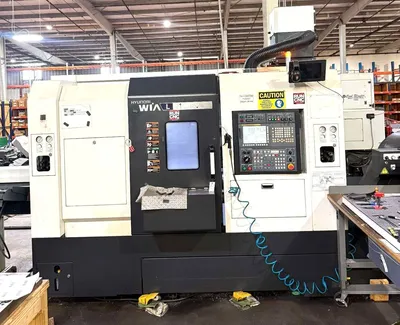

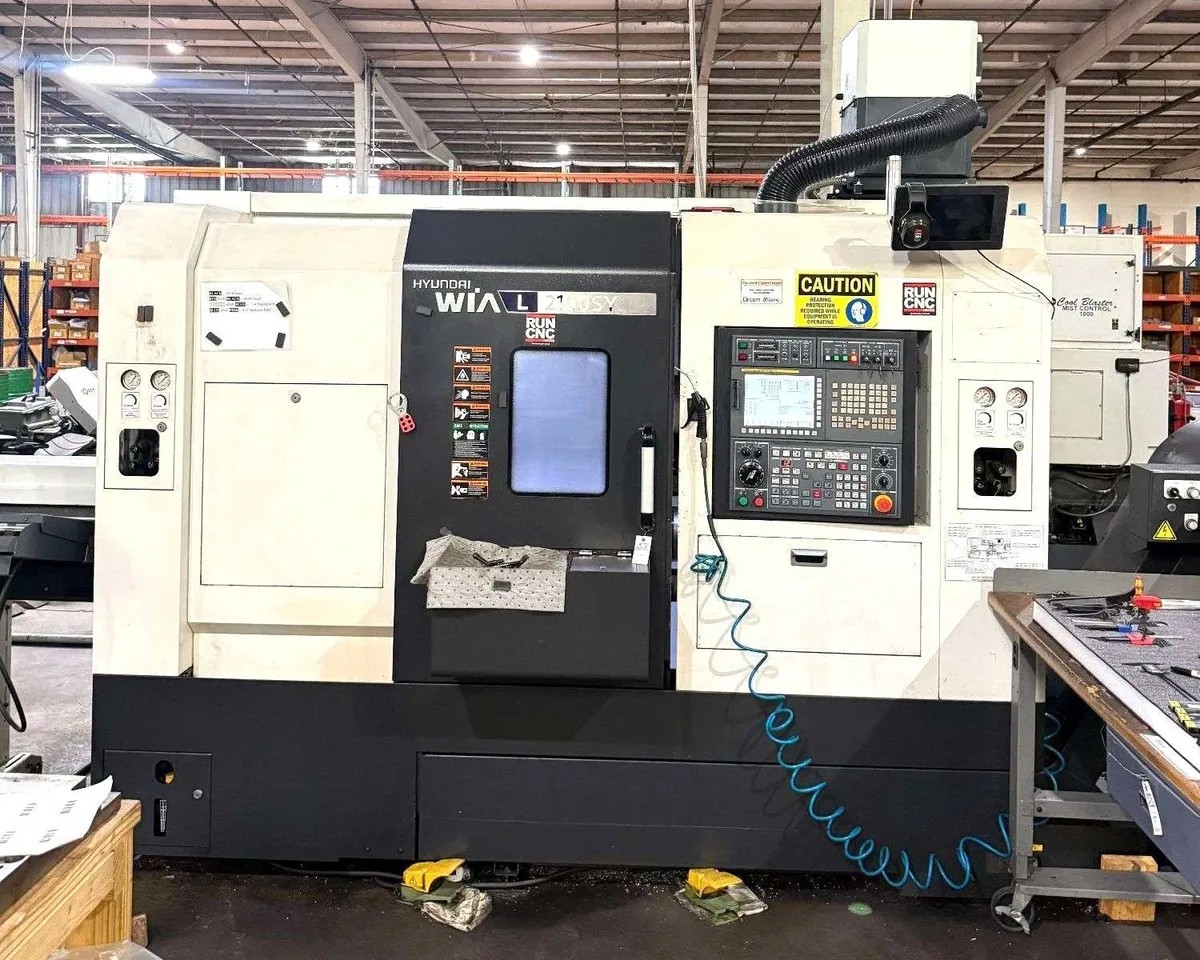

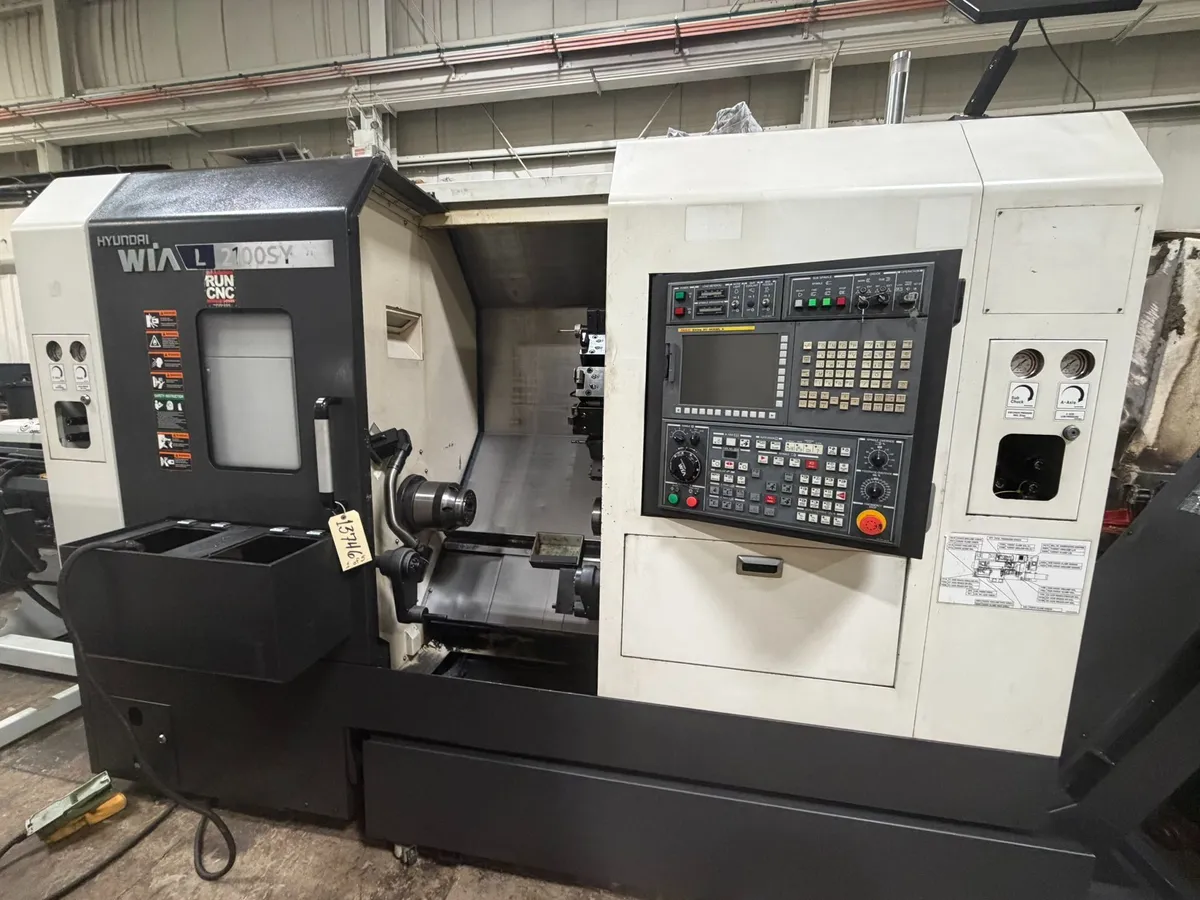

HYUNDAI WIA L2100SY CNC Turning Center Lathe

Product Specifications
SPECIFICATIONS:
Maximum Swing 24.8"
Maximum Turning Diameter 13.18"
Maximum Turning Length 17.91"
Bar Capacity 2.6"
Spindle Speed 4,500 RPM
Spindle Motor 20 HP
Sub Spindle Bar Capacity 1.4"
Sub Spindle Speed 6,000 RPM
Sub Spindle Motor 10 HP
Live Tooling Speed 5,000 RPM
X-Axis Travel 8.26"
Y-Axis Travel 3.93"
Z-Axis Travel 22.83"
ZB-Axis Travel 19.69"
X-Axis Rapids 709 IPM
Y-Axis Rapids 472 IPM
Z-Axis Rapids 945 IPM
Approximate Dimensions 114.2" x 65" x 73.6"
Approximate Machine Weight 12,600 Lbs.
Equipped With:

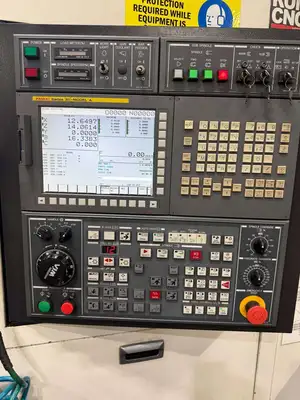

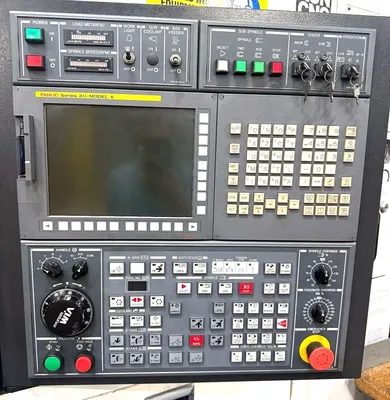

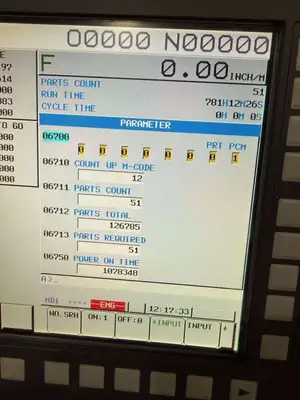

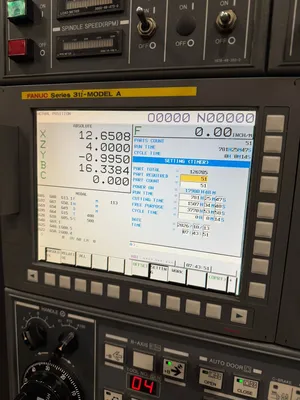

Fanuc 32iB CNC Control

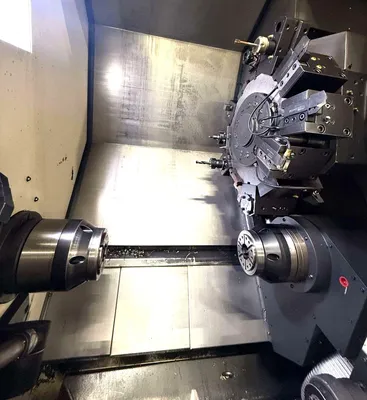

Collet Chuck for Main Spindle

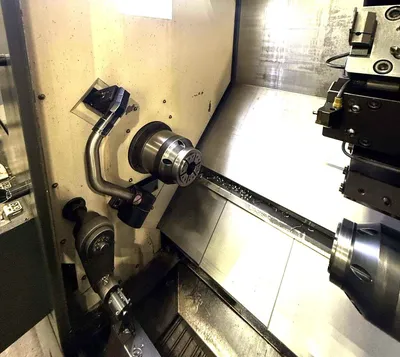

Collet Chuck for Sub-Spindle

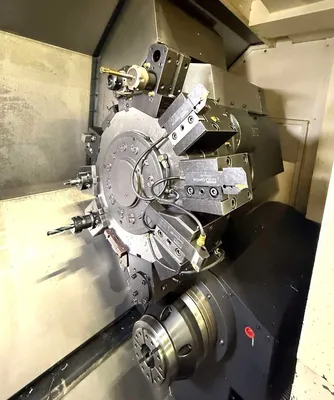

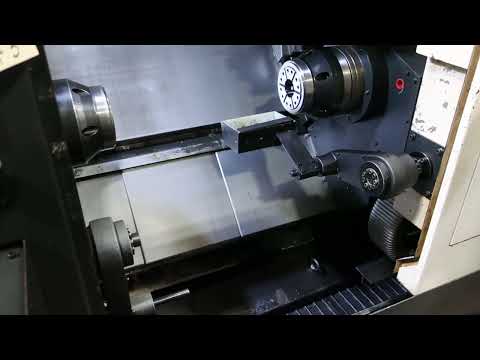

12-Position BMT 65 Turret
Automatic Tool Pre-Setter
C-Axis Live Tooling, Y-Axis
Chip Conveyor

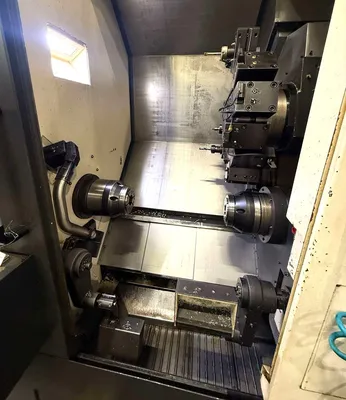

Parts Catcher
Tooling

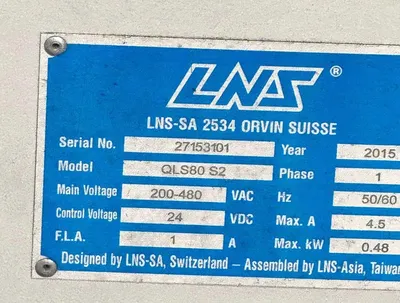

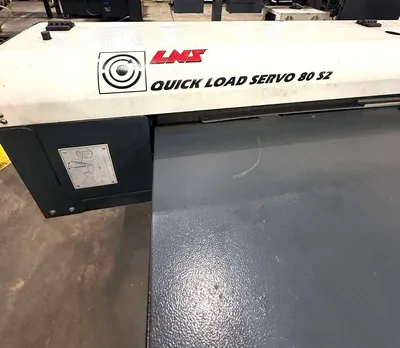

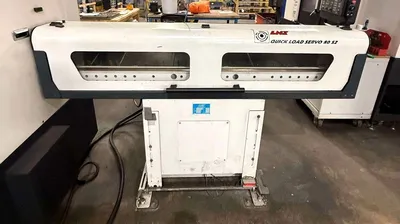

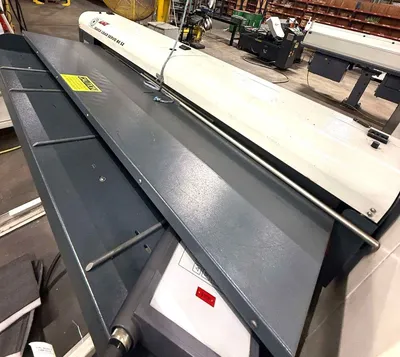

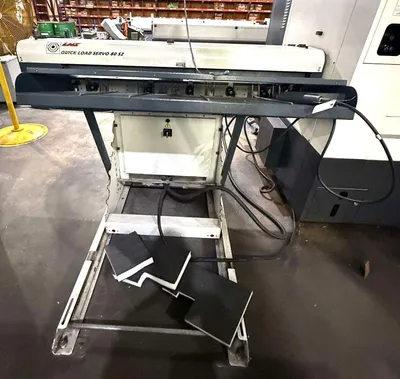

LNS Quickload Bar Feeder
