(2) 5' x 10' TABLES THERMWOOD MODEL C67DT 5 AXIS CNC ROUTER WITH UPGRADED CNC
Have one to sell?
1 available

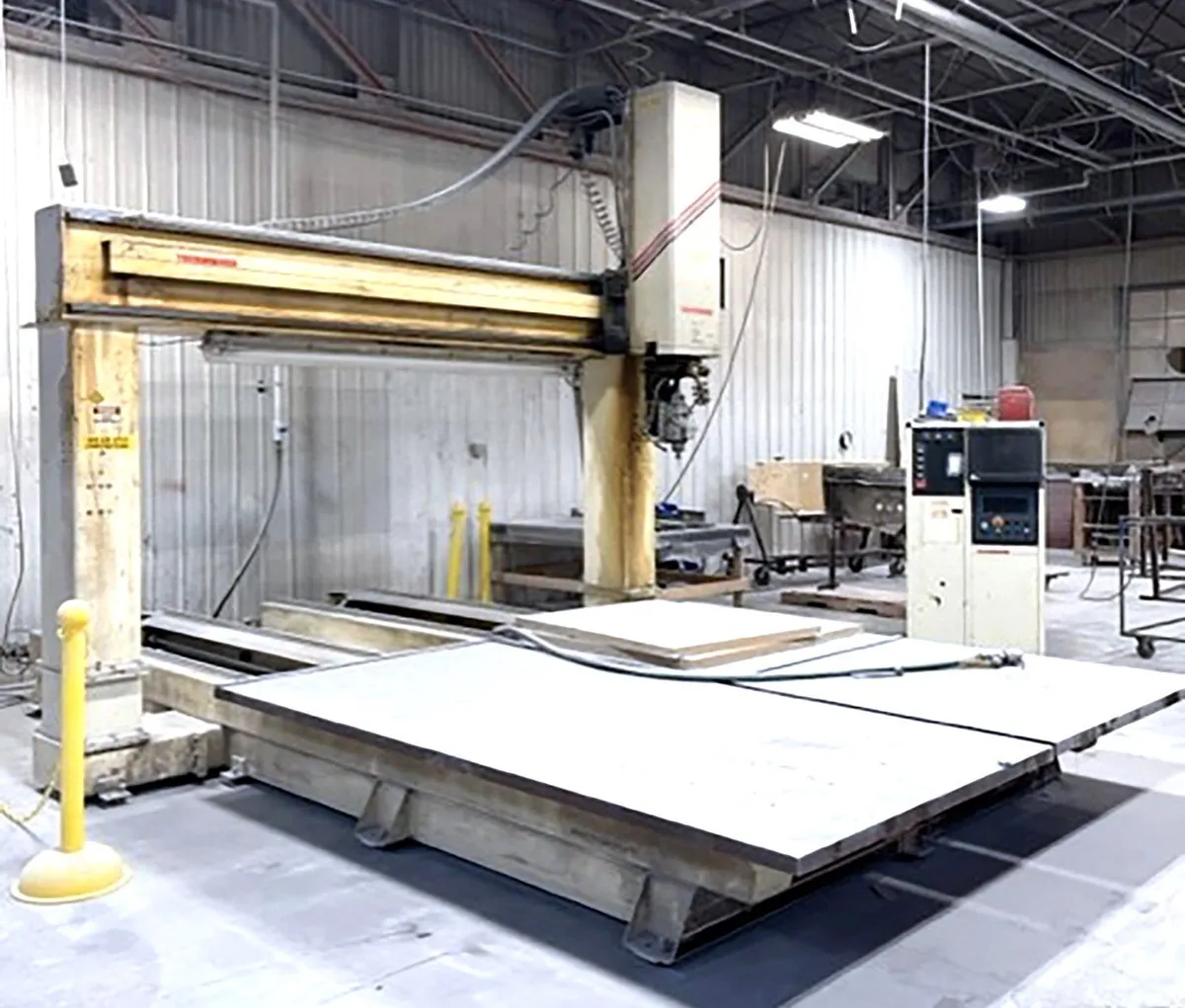

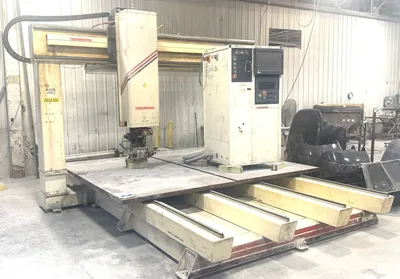

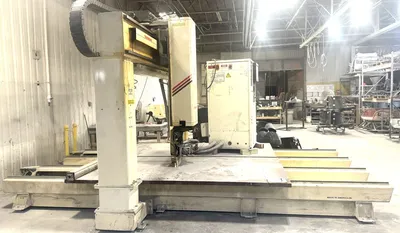

THERMWOOD MODEL C67DT 5 AXIS CNC ROUTER, (2) 5' x 10' tables, 36" Z, Perske dual head spindle, UPGRADED TO QCORE CNC CONTROL
*MOVING TABLE STYLE MACHINE*
Table 2 5' x 10'
Axis X 122"
Axis Y 60"
Axis Z 36"
Axis 4 Rotation 360 Degrees Rotation
Axis 5 Tilt 180 Degree tilt
Feed speeds 0 to 900 IPM

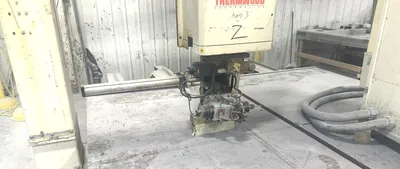

Spindle 7-1/2 HP Columbo Dual End
Spindle speed Variable 3,000 to
18,000 RPM
Air required 90 PSI
Voltage required 220 or 440 Volt
3 Phase, 60 Cycle
MOTOR SPECIFICATIONS:
7.5 HP 3000-18,000 RPM Columbo
Wired 460 Volt

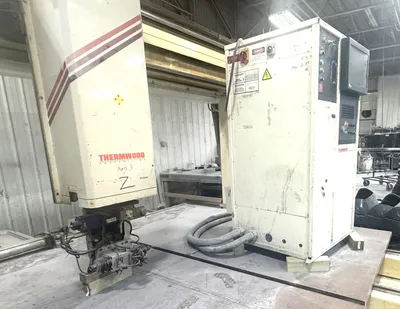

Thermwood QCORE UPGRADE 9/2020 CNC Controls
Software is Windows 10
36" Z Axis

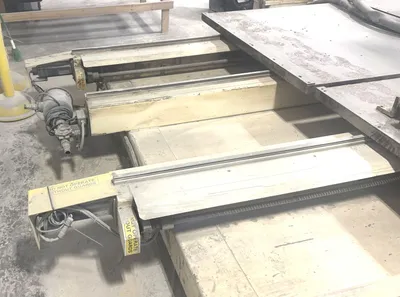

(2) 5' X 10' Extruded Aluminum Tables
4 vacuum ports per table
Automatic Lubrication
Gantry light
6 POSITION IN LEG TOOL CHANGER (must verify)
