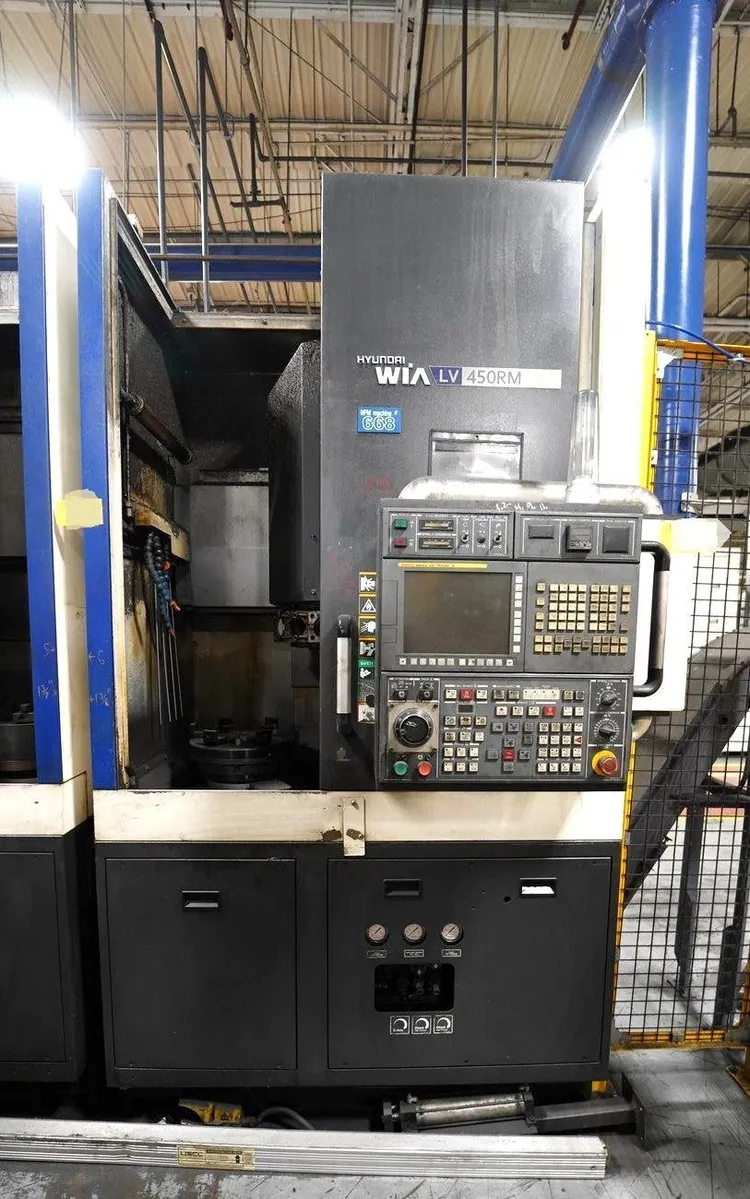

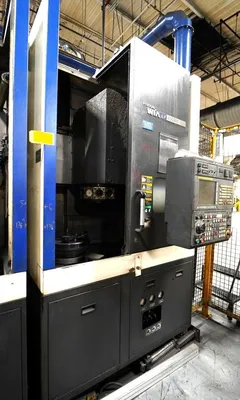

2014 HYUNDAI WIA LV450RM CNC 3-AXIS VERTICAL LATHE

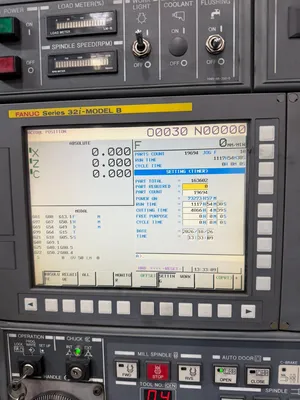

Control System: Fanuc 32i-B (standard)

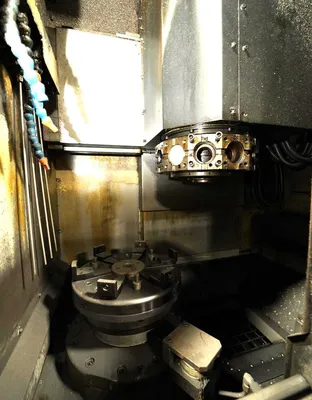

Turret: Servo turret with 3-piece couplings for indexing accuracy
Coolant System: 290 PSI, rear hinged chip conveyor (42" discharge height)

Bed: Massive Meehanite cast iron with step frame design

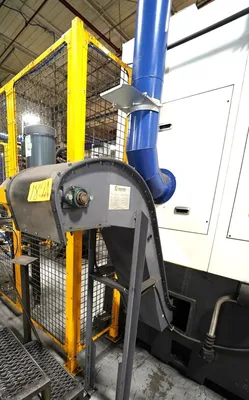

Chip Disposal: Rear hinged conveyor with splash guard
Enclosure: Full enclosure with 3-color tower signal lights
Features
High-Speed & Heavy-Duty Cutting: Stable spindle structure with roller guideways for minimal vibration
2-Step Chuck Pressure Mechanism: High pressure for rough cutting, low pressure for precision to reduce workpiece deformation
Right/Left Configuration: For efficient automation setup

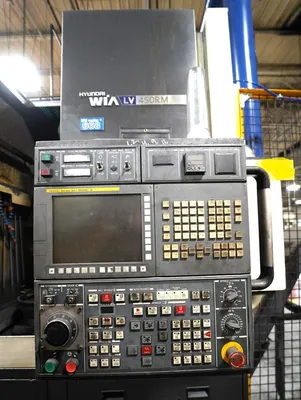

Front Operation Panel: Power supply, hydraulic, and lubrication controls on the front for convenience
Live Tooling Option (M/LM): Enables milling operations in addition to turning
Chip Influx Protection: Sloped bed and chip disposal system to maintain spindle cleanliness

Table Diameter:12”- 15"
Swing Diameter: 24.4"
Turning Height: 18.3"
Spindle Nose : A2-8
Table Speed: 3,000 RPM
Main Motor: 29.5 HP
Number Of Ranges: 1
X - Axis Travel: 12.2"
Z - Axis Travel: 19.5"
W - Axis Travel : 0
W - Axis Positions: 0
C - Axis Indexing: .001 Degree
Ram Size: 0
Rotary Spindle Speed: 4,000 RPM
Rotary Spindle Horsepower: 7.3 HP
Turret Configuration: 12
Automatic Tool Changer: 0
Rapid Traverse X, Z: 788, 945 IPM
Machine Weight: 16,062 Lbs.

Equipped With
FANUC 32IA CNC CONTROL
CHIP CONVEYOR
C-AXIS POSITIONING
Live milling 12 position turret
12" CHUCK
COOLANT SYSTEM
