KOMO VR510 3-AXIS CNC ROUTER
Have one to sell?
1 available

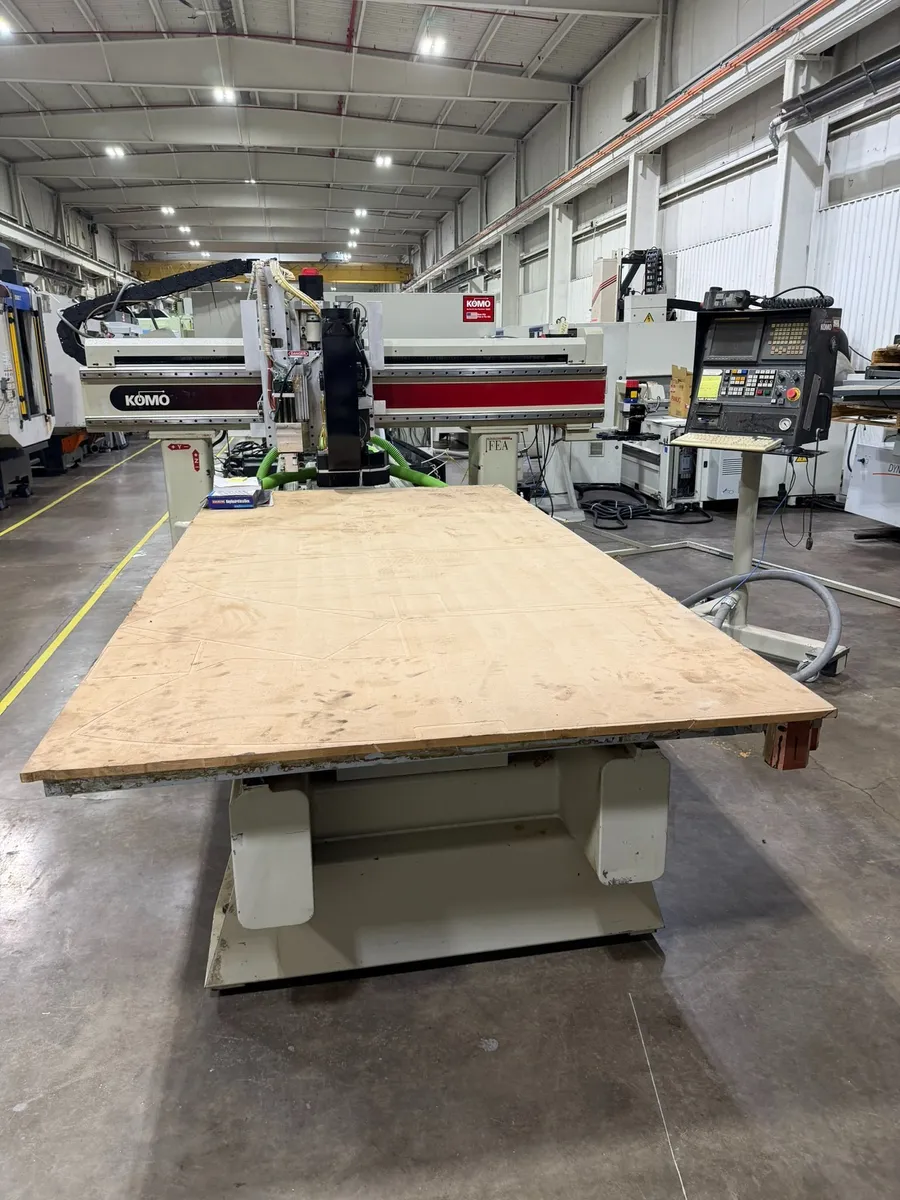

KOMO VR510 3-Axis CNC Router from 2003 in used condition. Features a 11.39 HP spindle reaching 17,600 RPM, equipped with a 10-tool changer, high-velocity air blast, drill bank, and GE Fanuc control. Table size: 120 x 60, axis travels: 134 x 84 x 8.
Komo VR510 Mach One 3-axis cnc Router
GENERAL SPECIFICATIONS
Axis Travels: 134 X 84 X 8
Spindle Mfg
Komo Mdl. 103208
Spindle Speed
17,600 RPM
Spindle Motor
11.39 HP
Spindle Taper
HSK-63F
Feedrate/traverse: X axis up to 3150 IPM
Y axis up to 1600 IPM
Z axis up to 1200 IPM
Table Dimensions: 120 x 60
Table Design: Precision machined cast aluminum vacuum plenum with four
Clearance under bridge: 10
Leveling feet to table top: 29
Table Height: 32
Installed Dimensions: (L) 260 x (W) 143 x (H) 90
10 Tool Servo-controlled, Bi-Directional Automatic Tool Changer,
High Velocity Air Blast Of The Cutting Tool,
Drill Bank with Vertical as well as Horizontal Tools,
Pressurized Automatic Centralized Oil Lubrication System,
CNC Control Utilizing Ge Fanuc With Integrated PC,
Automated Tool Length Measurement
Pop Up Pins
