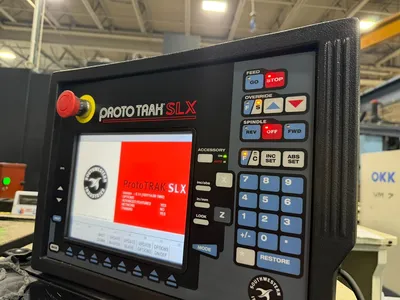

2011 Southwestern Industries Trak 2460SX 2-Axis CNC Lathe

HEIGHT OF CENTERS .......................... 12"
SWING OVER BED ............................. 24"
SWING OVER CROSS SLIDE ..................... 14.5"
MAX DISTANCE BETWEEN CENTERS ............... 60"
CROSS SLIDE TRAVEL (X) ..................... 12.5"
SPINDLE SPEEDS TWO RANGES:
LOW RANGE ............................... 40 - 670 RPM
HIGH RANGE .............................. 100 - 1800 RPM
SPINDLE BORE ............................... 4.09"
SPINDKE NOSE ............................... D1-8
WIDTH OF BED ............................... 15.75
TAILSTOCK QUILL TRAVEL ..................... 6.88"
TAILSTOCK QUILL DIAMETER ................... 3"
TAILSTOCK QUILL TAPER HOLE ................. #5 MT
APPROX WEIGHT .............................. 7,500 LBS
APPROX DIMENSIONS .......................... 114" X 53" X 70"
