2024 OGP SMARTSCOPE FLASH 302 DCC NON CONTACT PRECISION MEASURING MACHINE, NEW 2024

SmartScope Flash 302 -
VERSATILE “ALL-IN-ONE” 3D
MULTISENSOR MEASUREMENT SYSTEM
BUILT TO HANDLE A WIDE VARIETY OF
MEASUREMENT TASKS
SmartScope® Flash™ 3D Multisensor Measurement Systems are versatile “all-in-one”
multisensor coordinate measuring systems built to handle a wide variety of measurement
tasks. The Flash product line offers the largest range of XYZ machine travels, from 200 x
200 x 150 mm to 650 x 660 x 400 mm, as well as models with expansive XY travels up to
1500 x 1500 mm, to easily accommodate very large parts.
A 12:1 zoom metrology lens features patented AccuCentric® that auto-compensates itself after every magnification change.
Flash offers a range of innovative illumination sources for video measurements. SmartRing™ light is standard for the ultimate
flexibility in surface illumination. All LED illumination including backlight, ring light and coaxial surface light-and an optional
grid protector for focusing on low contrast images.
SmartScope Flash can be configured as an economical yet capable multisensor metrology system, with numerous
combinations of touch probes, scanning probes, micro-probes, and lasers. ZONE3® 3D CAD-based metrology software
makes every Flash model a powerful video measuring system.
SmartScope Flash systems feature an ideal price-to-performance ratio and are extremely popular, with thousands in service
worldwide. SmartScope Flash systems are the best choice in automatic general-purpose, coordinate measuring with
multisensor dimensional measurement.
Flash branded systems are sold in North America while Flash CNC and CNC systems are found outside North America.

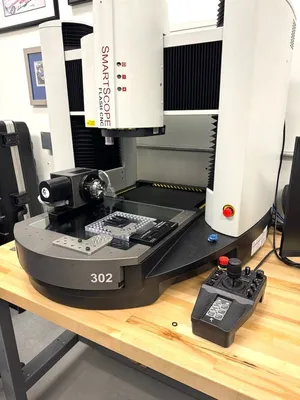

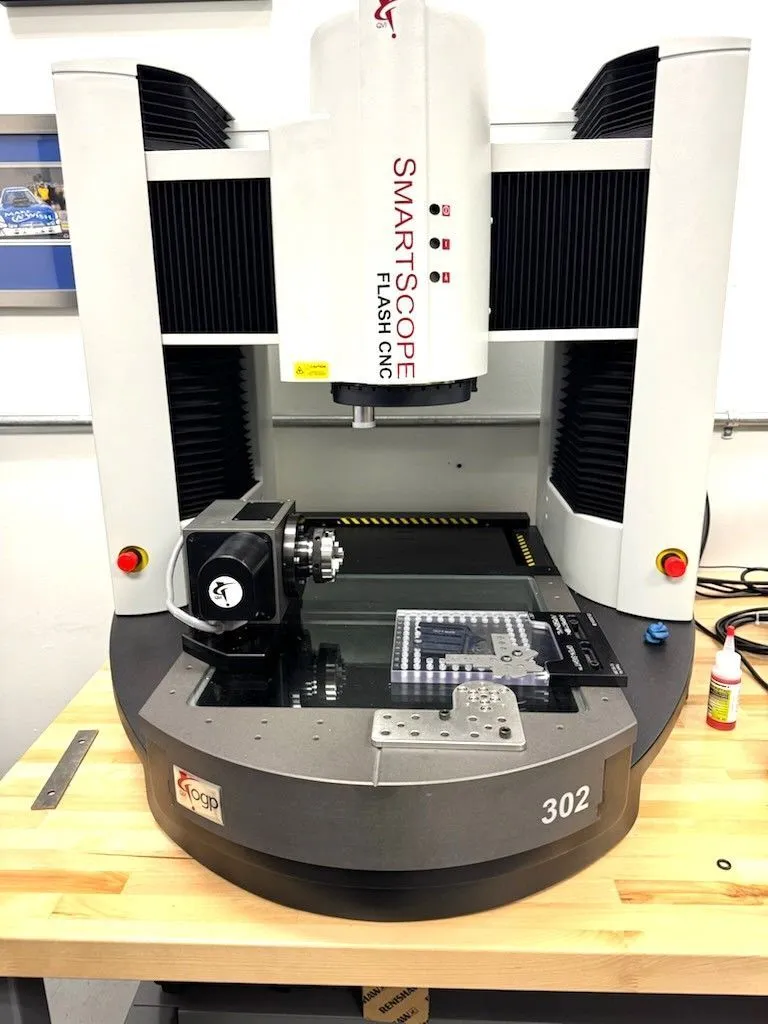

SmartScope® Flash™ 302 is a unique high capacity benchtop multisensor measurement system and one of the most
versatile benchtop systems OGP offers.
Designed-in accuracy – Elevating bridge design eliminates errors common to other designs
Precision optics – High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position
Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light
illuminate parts from all angles
Multisensor versatility – Optional touch probe, scanning probe, laser, and micro-probe sensors
XYZ TRAVEL (MM)
300 x 300 x 250
OPTICS
AccuCentric® auto-compensating zoom with up to 25 calibrated positions, 1.0x lens
ILLUMINATION
Substage LED profile, coaxial LED surface, SmartRing LED ring light (white)
Model Number S501-050
ZONE3 Prime - Included
ZONE3 Prime SSA - Included
BASE SYSTEM SOFTWARE PART NUMBER PRODUCT IMG.
ZONE3® Metrology Software represents a totally new way of working with
multisensor measurement systems and provides faster, easier, and more
productive measurements than ever before. Its interface clearly displays
relationships between parts, sensors, datum alignments, and machine
accessories.
ZONE3.zone is the online community for ZONE3 users. Connect with fellow
ZONE3 users and OGP Application Engineers to share metrology tips and get
answers to your questions about ZONE3 features.
ZONE3 Prime offers all the functionality of Express, plus full 3D CAD
capability and advanced GD&T functionality.
ZONE3 is optionally available in two other version: the base version, Express,
and the more powerful version, Pro.
720647
SOFTWARE OPTIONS PART NUMBER PRODUCT IMG.
One Year Software Subscription Agreement for ZONE3. Includes free updates
of ZONE3 software, with anticipated release intervals every 6 months.
Includes SSA for any associated seat of ZONE3 offline, and access to
exclusive support areas in the zone3.zone support forum.
860315

Scanning Probe Adapter - Included
SP25 Scanning Probe Kit 1 - Included
3-Station Change Rack - Included
SCANNING PROBE OPTIONS PART NUMBER PRODUCT IMG.
The scanning probe adapter package is required for all systems equipped with
scanning probe. Includes Sonic Controller, electronic controls, mounting
hardware, calibration artifact, cables, and software. Scanning with the Sonic
controller is available in Zone3 software only.
B10-SPAP
Includes SP25M Scanning Probe, SM25-1 Scanning Module, and 2x SH25-1,
3 x 21mm Stylus
B10-SP-KIT1

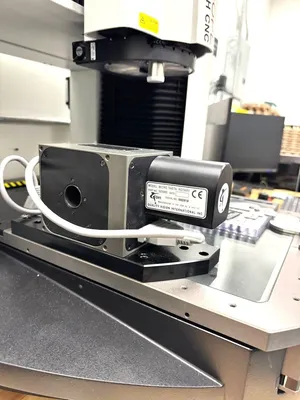

Change racks allow the automated changing of scanning probe modules and
styli configurations. Docks mount on kinematic mounting mechanism. Includes
additional kinematic mount base.
B10-CR-3ST-155SP
