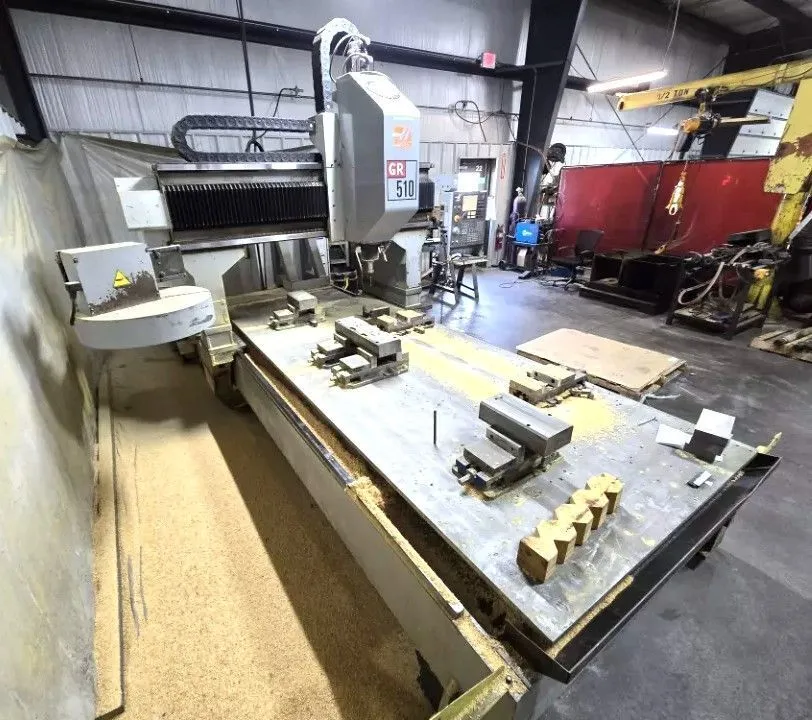

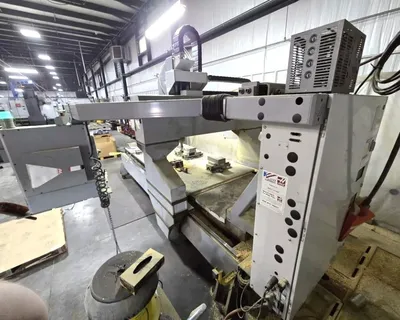

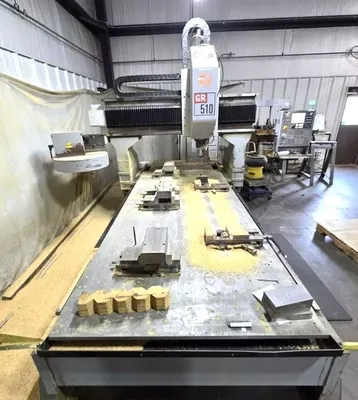

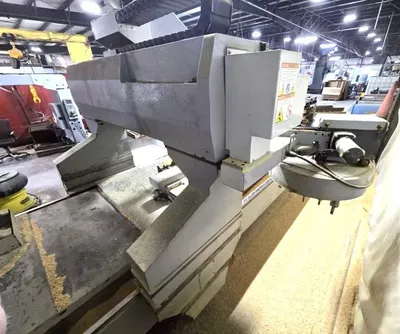

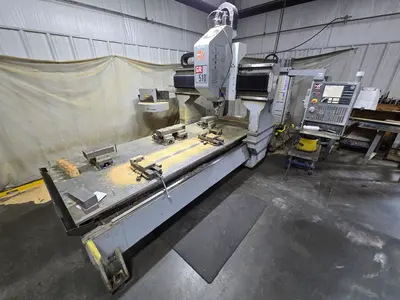

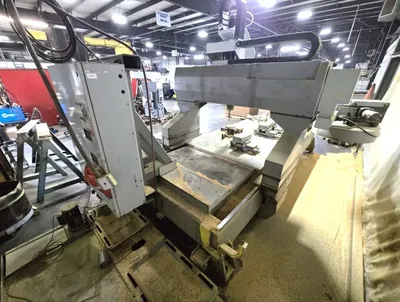

5'X10' HAAS MODEL GR510 3-AXIS CNC ROUTER VERTICAL MACHINING CENTER, NEW 2007

Travels:
X-Axis 121"
Y-Axis 61"
Z-Axis 11"
Spindle Nose to Table (Max) 13.5" PLUS 6"
Spindle Nose to Table (Min.) 2.5"
Table:
Length 122"
Width 53"
Bewteen Columns 62"
Max. weight on table (evenly distributed) 6000 lbs
Spindle:
Max. Rating 15 HP
Max. Speed 8,100 RPM
Max. Torque 17 ft-lb @4600 RPM
Drive system Direct speed Belt drive
Taper CT 40
Feedrates:
Rapids on X 800 in/min
Rapids on Y 2100 in/min
Rapids on Z 1100 in/min
Max. Cutting 800 in/min
Axis Motors:
Max. Thrust X 2520 Lb
Max. Thrust Y 1020 Lb
Max. Thrust Z 2050 Lb
Tool Changer:
Type 20
Capacity 3.5"
Max. Tool Diameter (full) 3.5"
Max. Tool weight 12 Lb
General:
Air required 4 scfm, 100 PSI
Coolant Capacity 95 Gal
MOTOR SPECIFICATIONS:
15 HP
