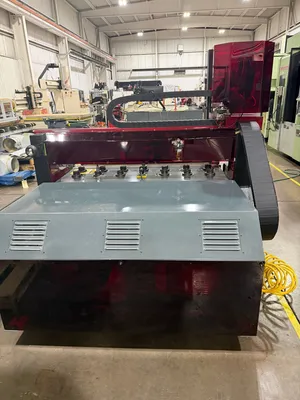

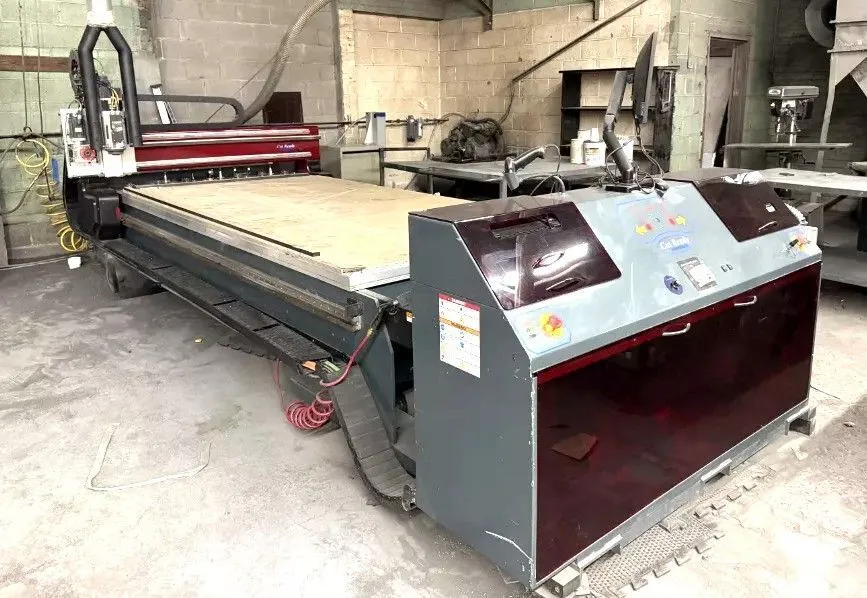

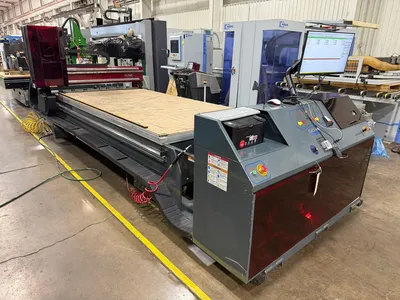

5' X 10' Thermwood Cut Ready Cut Center CNC Router designed for Cabinets, New 2021

MACHINE SPECIFICATIONS

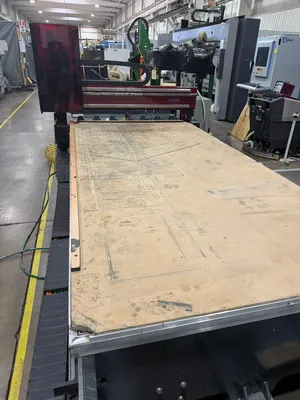

Maximum sheet size 61" X 121"

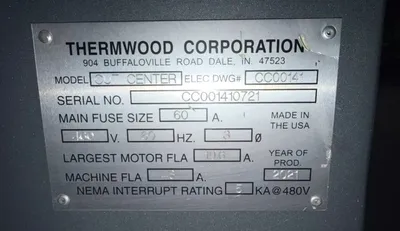

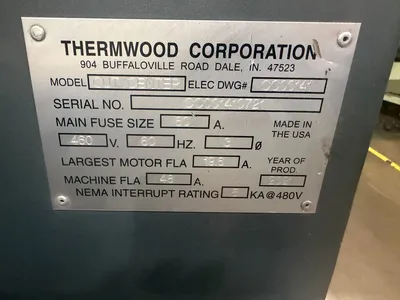

Electrical requirements 380 – 440 Volt 50 Hz / 440-480V 60Hz 3 Phase power input (other voltages optional). NOTE: A grounding rod with a resistance to ground of 25 ohms or less should be set near the machine. This rod is intended as a supplementary grounding device, and shall not be used as the sole grounding means for the equipment.
Air requirements 30 CFM @ 100PSI (max) utilizing a ¾”incoming line
Internet connection required – wireless connection is provided if connection is not currently available.

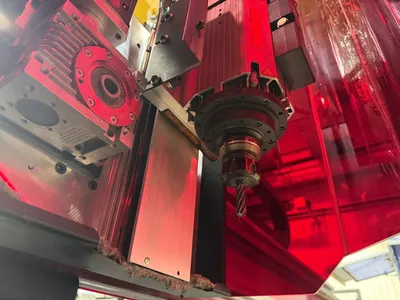

• Automatic tool change spindle Horsepower - 12
• Max speed RPM - 24,000
•
• Minimum required dust collection 1200 CFM, 6” connection

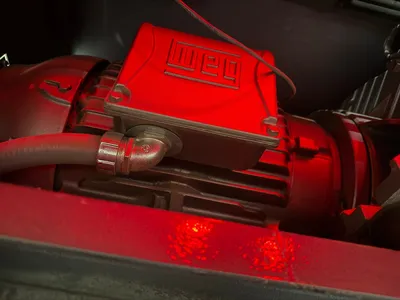

• Vacuum hold down system (internal) Horsepower – 15 at 60 Hz
• CFM – 280
• Valve operation – automatic

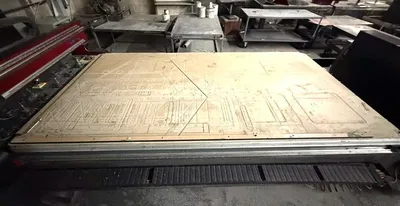

• Ultra-flow table design
• One (1) ¾” MDF high flow vacuum table board
• Five (5) ¼” MDF high flow vacuum waste boards
• Automatic three-stage machining, based on part size
• Automatic waste board management
• Automatic waste board resurfacing
• Automatic table board resurfacing
• Three retractable material locator stops with position sensors
• Automatic air float system to assist in moving material on the table
•

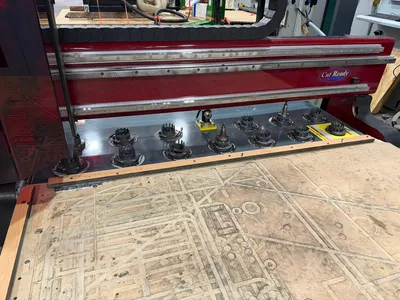

• Tooling Automatic tool position management
• Automatic tool life monitoring
• Automatic tool change system
• Automatic tool length and diameter measurement
• Automatic tool parameter maintenance

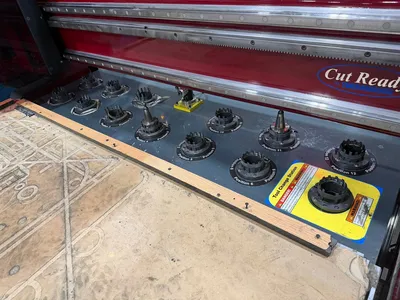

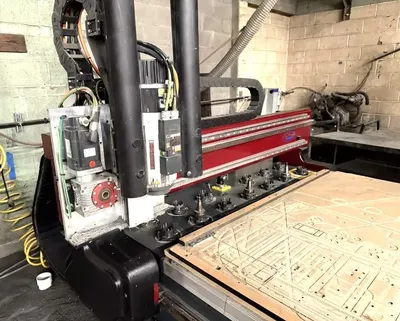

• 12 tool storage positions (maximum 2” diameter tools)
• Tool change station
• 12 precision balanced tool holders with appropriate tooling installed
• Cut ready tool kit (one set)
• Tool change station and torque wrench
•
-

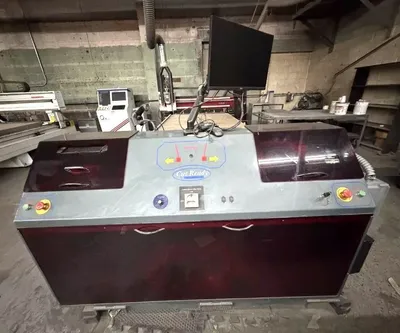

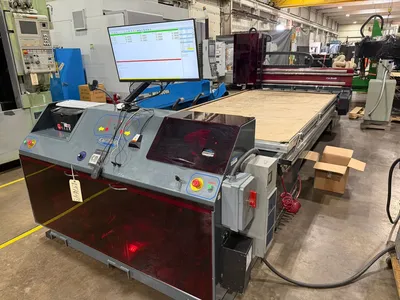

Operator interface
o
Main power switch
o
Start Button (2 locations)
o
Emergency Stop button (2 locations)
o
USB keyboard ready
o
Wearable “Clicker/Pause Button”
o

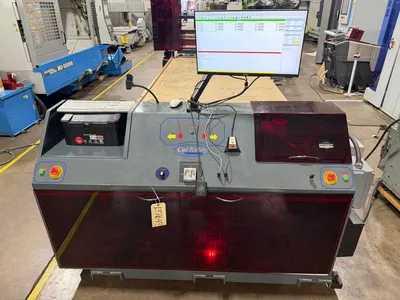

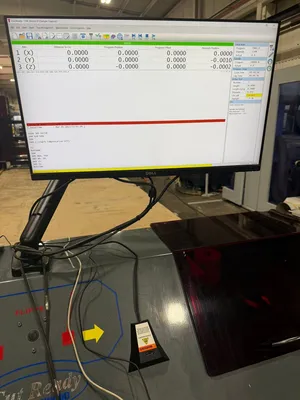

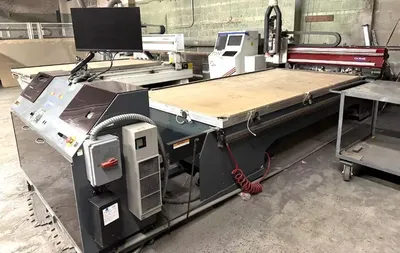

23 Inch touch screen display
▪
Adjustable position arm
▪
Video instruction for each step
▪
Gesture interface
▪
Graphic display of products
▪
3D display of products including rotate, zoom, pan and explode
-

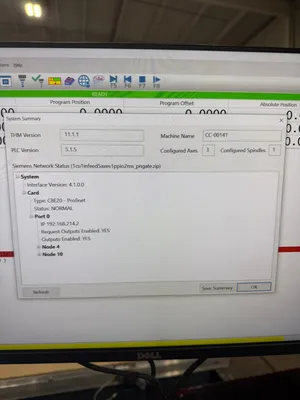

System software Version 1.0.27
-
Cut Ready mobile App for remote data entry
-
The system can operate solely as a Cut Center with no CNC Programming required
-
The system can be operated as a CNC router in the traditional manner, running programs generated with virtually any CNC software. This feature activation requires the operator to have successfully completed Thermwood’s standard 3 axis machine training class.
-
The system can operate utilizing eCabinetSystems software and following specific design protocols, Custom products can be designed and added to the Cut Center by users and then those items can be run as part of a Cut Center with no further programming
-
Maintenance
o
Automatic routine maintenance management
o
Video instruction for each routine maintenance task
o
Virtual Service, real time, live assistance on the control screen (see current operating hours)
-
Lubrication
o
Automatic oil/grease lubrication
-
Updates
o
System software updates are available as a free download when they are released
o
Product library updates and additions are available as a free download when they are released
