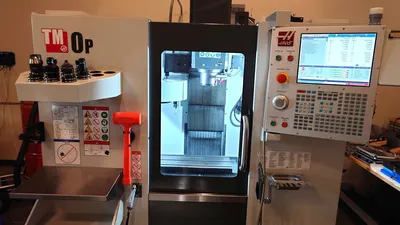

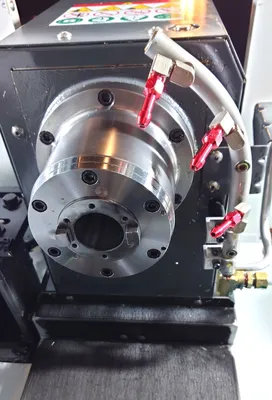

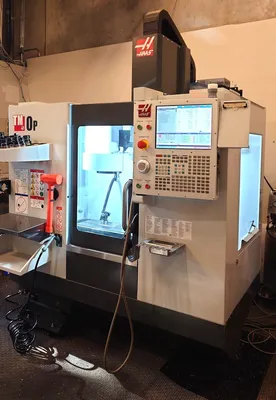

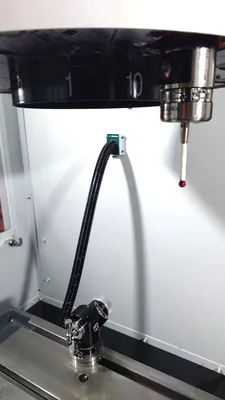

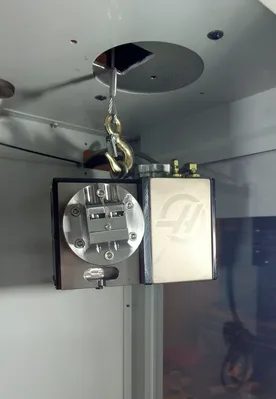

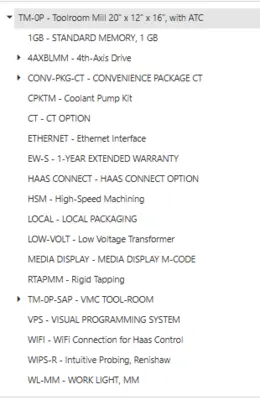

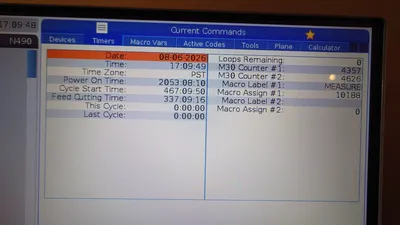

2022 HAAS TM-0P 4-axis CNC TOOLROOM MILL WITH ROTARY TABLE, 500 HOURS

Travels S.A.E. Metric
X Axis 20.00 in 508 mm
Y Axis 12.00 in 305 mm
Z Axis 16.00 in 406 mm
Spindle Nose to Table (~ max) 20.0 in 508 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm
Spindle specifications
Spindle S.A.E. Metric
Max Rating 7.5 hp 5.6 kW
Max Speed 6000 rpm 6000 rpm
Max Torque 33.0 ft-lbf @ 1200 rpm 45.0 Nm @ 1200 rpm
Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive
Taper CT or BT 40 CT or BT 40
Bearing Lubrication Grease Packed Grease Packed
Cooling Air Cooled Air Cooled

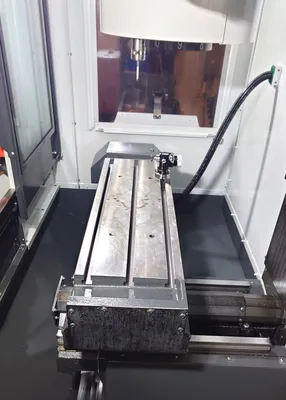

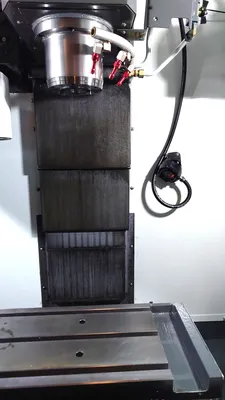

Table specifications
Table S.A.E. Metric
Length 38.4 in 975 mm
Length (Work Area) 30.50 in 775 mm
Width 10.5 in 267 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.00 in 102 mm
Number of Std T-Slots 3 3
Max Weight on Table (evenly distributed) 350 lb 159 kg
Feedrates specifications
Feedrates S.A.E. Metric
Max Cutting 400 ipm 10.2 m/min
Rapids on X 400 ipm 10.2 m/min
Rapids on Y 400 ipm 10.2 m/min
Rapids on Z 400 ipm 10.2 m/min
Axis Motors specifications
Axis Motors S.A.E. Metric
Max Thrust X 2000 lbf 8896 N
Max Thrust Y 2000 lbf 8896 N
Max Thrust Z 2000 lbf 8896 N

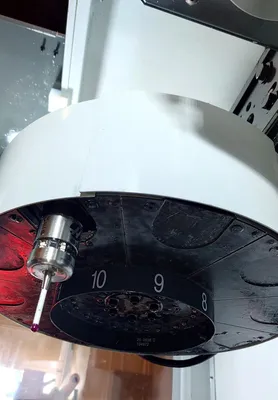

Tool Changer specifications
Tool Changer S.A.E. Metric
Type Carousel Carousel
Capacity 10 10
Max Tool Diameter (full)** 3.5 in 89 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 5.70 s 5.70 s
Chip-to-Chip (avg) 6.50 s 6.50 s
Air Requirements specifications
Air Requirements S.A.E. Metric
Air Required† 4 scfm @ 100 psi 113.0 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar

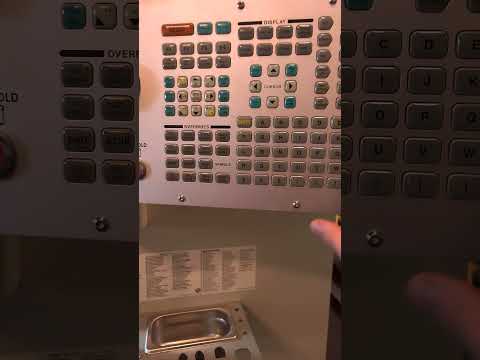

Electrical Specification specifications
Electrical Specification S.A.E. Metric
Spindle Speed 6000 rpm 6000 rpm
Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive
Spindle Power 7.5 hp 5.6 kW
Input AC Voltage (1 Phase) 220 VAC 220 VAC
Full Load Amps (1 Phase) 40 A 40 A
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 25 A 25 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 13 A 13 A
Dimensions - Shipping specifications
Dimensions - Shipping S.A.E. Metric
Domestic Pallet 100.0 in x 78.0 in x 99.5 in 254 cm x 198 cm x 253 cm
Export Pallet 100.0 in x 78.0 in x 99.5 in 254 cm x 198 cm x 253 cm
Weight 3660 lb 1660.0 kg
