2010 ONSRUD 120P12 PANEL TECH 5' x 10' HEAVY DUTY 3-AXIS CNC ROUTER

Onsrud 120P12 Panel Tech CNC Router — Specifications The Onsrud 120P12 is a 3‑axis industrial CNC router with a 5′×10′ phenolic table, 12 HP HSK spindle, and 8‑position tool changer, designed for high‑volume panel and composite machining
Model: Onsrud 120P12 “Panel Tech” CNC Router
Table size: 5′ × 10′ (60 in × 120 in / 1,524 mm × 3,048 mm)
Machine footprint: ~168 in L × 96 in W × 100 in H (approx. 4.47 m × 2.44 m × 2.54 m)
Weight: ~9,000–10,000 lbs (4,080–4,536 kg)
Spindle: 12 HP HSK, variable RPM up to 24,000 rpm CW/CCW
Tool capacity: 8‑position rotary tool changer
Z‑axis stroke: 11 in (279 mm)
Under‑bridge clearance: 14 in (356 mm)
Controller: Mach4 with color touch‑screen

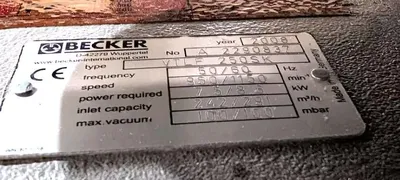

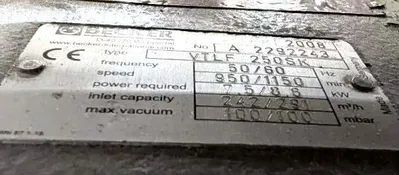

Vacuum pump
Construction: Stationary table, moving gantry; phenolic router table
Safety: Bump bar, sound enclosure
Panel Tech configuration optimized for high‑throughput panel and composite work, including carbon fiber, fiberglass, and honeycomb core materials
HSD spindle with quick‑change capability for rapid tool changes
Vacuum zones for chip and dust extraction, important for composite machining
Automation‑ready with options for additional tool changers, bar feeders, or pallet changers
The 120P12 is suited for industrial panel routing in aerospace, defense, automotive interior, and composite manufacturing, where high spindle speeds, precise motion, and effective chip evacuation are critical
